Handlebar Information

Replacing your handlebars is easy! All you need to do is identify whether you need a 1⅛" or ⅞" bar diameter. From there, pick out measurements that will suit your riding preferences. This page is a resource for off-road handlebars. (The information may not apply to street bars.) You can also use the buttons below to see all of our offerings for either off-road or street handlebars.

Handlebar Buying Guide:

Bar Diameter

How do I know if my handlebar tube diameter is 1⅛" or ⅞"?

Bar Diameter

Measure bar diameter near center clamp area with a ruler. The diameter where the grips attach will always be ⅞".

Bar Measurements

There are three measurements to consider.

Bar Measurements

There’s no right or wrong for any particular machine – it all depends on your preferences.

Fasst Flexx 1 1/8" Handlebar

BendWidthHeightPull Back
10° Enduro High Bend31.00"4.57"1.57"
10° Enduro (KTM SX Bend)32.00"3.62"1.57"
10° Moto (KTM Bend)32.00"3.62"1.57"
12° Enduro Bend31.00"3.62"2.13"
12° Moto (CR/CRF Bend)32.00"3.62"2.13"
14° Moto (Windham/​MC Bend)32.00"3.62"2.24"
14° Quad Low Bend31.00"3.62"2.24"
14° Quad Racer Bend31.00"4.57"2.24"
15° Moto (CR High Bend)32.00"3.62"2.44"
15° Quad Bend31.00"4.57"2.44"
15° Quad Low Bend31.00"3.62"2.44"

Fasst Flexx 1 1/8" Handlebar

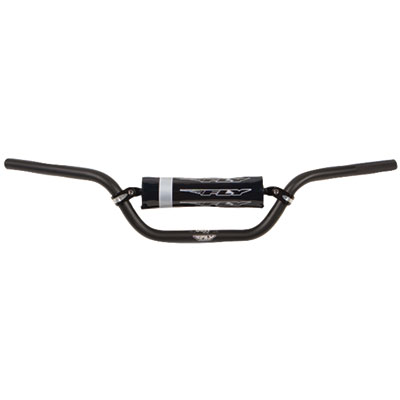

Fly Racing Aero Flex 7/8" Handlebars

BendWidthHeightPull Back
CR High Bend31.57"3.90"2.13"
CR High Bend Classic31.30"3.74"2.44"
CR Mid Bend31.34"3.50"2.28"
KTM 65SX Bend29.29"3.15"1.93"
KX Bend31.69"3.66"2.17"
KX85/100 Bend28.82"3.94"2.48"
Mini Bend29.13"4.65"1.65"
YZ Bend31.61"3.62"2.24"

Fly Racing Aero Flex 7/8" Handlebars


Fly Racing Aero Tapered 1 1/8" Handlebars

BendWidthHeightPull Back
CR High Bend31.57"3.90"2.13"
CR High Bend Classic31.30"3.74"2.44"
CR Mid Bend31.61"3.74"2.24"
Mini Bend29.13"4.65"1.65"
SX Bend31.93"3.35"1.42"
YZ Bend31.61"3.62"2.24"

Fly Racing Aero Tapered 1 1/8" Handlebars

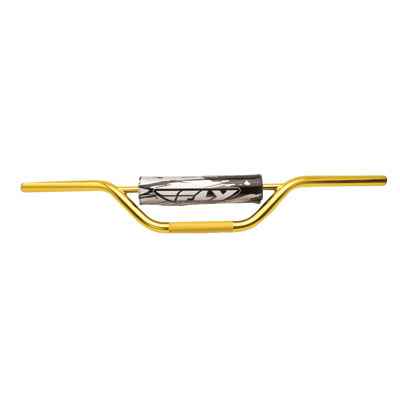

Fly Racing Aluma-Steel 7/8" Handlebars

BendWidthHeightPull Back
ATV "F" Bend29.76"5.51"4.05"
CR High Bend31.34"3.50"2.12"
Kawasaki/​Suzuki Bend31.49"2.79"2.16"
Mini Bend29.13"3.77"1.65"
Vintage Bend33.07"6.77"3.54"
Yamaha Bend31.61"3.62"2.24"

Fly Racing Aluma-Steel 7/8" Handlebars


KTM Renthal 1 1/8" FatBars

BendWidthHeightPull Back
KTM 125-450 2013 SX Bend31.93"4.61"2.60"
Ricky Carmichael Bend31.57"3.90"2.13"

KTM Renthal 1 1/8" FatBars


KTM Renthal 7/8" Handlebars

BendWidthHeightPull Back
50 SX Bend26.30"3.31"1.89"
65/85/105 SX Bend29.13"4.65"1.65"

KTM Renthal 7/8" Handlebars


KTM Renthal Twinwall 1 1/8" Handlebar

BendWidthHeightPull Back
KTM31.69"3.26"2.16"

KTM Renthal Twinwall 1 1/8" Handlebar

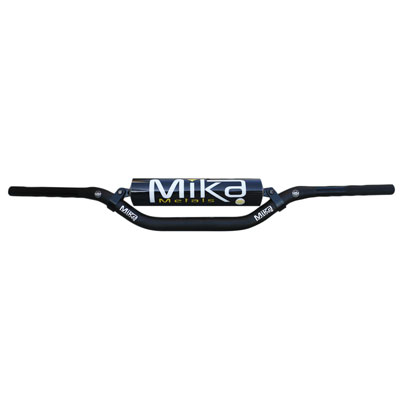

Mika Metals 1 1/8" Oversize Handlebars

BendWidthHeightPull Back
YZ/Reed Bend31.61"3.62"2.13"
RC/Hon/​Kaw Stock Bend31.56"3.90"2.13"
CR High Bend31.30"3.74"2.20"
CR Low Bend31.56"2.60"2.24"
Stewart/​Villopoto/​MC Bend31.70"3.35"2.17"
KTM Bend31.70"3.54"1.97"
Mini High Bend29.13"4.65"1.65"
Mini Low Bend29.53"3.74"1.65"

Mika Metals 1 1/8" Oversize Handlebars


Mika Metals 7/8" Handlebars

BendWidthHeightPull Back
CR High Bend31.30"3.74"2.24"
CR Low Bend31.57"2.60"2.24"
KTM Bend31.69"3.54"1.97"
Mini High Bend29.13"4.65"1.65"
Mini Low Bend29.53"3.74"1.65"
RC/Hon/​Kaw Stock Bend31.57"3.90"2.20"
Stewart/​Villopoto/​MC Bend31.69"3.66"2.17"
YZ/Reed Bend31.61"3.62"2.24"

Mika Metals 7/8" Handlebars

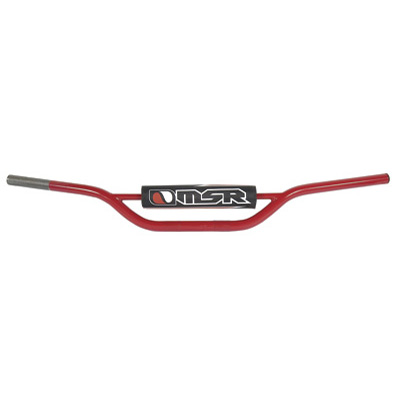

MSR Carbon Steel 7/8" Handlebar

BendWidthHeightPull Back
ATV High Bend31.50"6.00"3.94"
ATV Low Bend31.00"4.00"3.62"
CR High Bend31.63"4.50"3.80"
CR Low Bend32.13"3.63"3.50"
CR Mid Bend32.25"4.25"3.38"
KX High Bend31.50"4.25"3.07"
KX Low Bend31.88"3.25"3.38"
Mini High Bend28.50"4.60"2.36"
Mini Low Bend28.13"3.71"2.36"
RM High Bend31.88"3.75"4.13"
YZ High Bend32.25"3.88"3.75"
YZ Low Bend31.50"2.64"2.76"

MSR Carbon Steel 7/8" Handlebar


ODI 7/8" Handlebars

BendWidthHeightPull Back
ATV Race Bend31.73"5.91"2.95"
Henry/​Reed Bend31.61"3.62"2.24"
Honda/​Kawasaki OE Bend31.57"3.90"2.13"
KTM 65SX Bend29.29"3.15"1.93"
KX Mini Bend28.74"3.94"2.48"
Super Mini Bend29.13"4.65"1.65"
KTM 50SX Bend26.30"3.31"1.89"

ODI 7/8" Handlebars


ODI CFT Podium Handlebars

BendWidthHeightPull Back
Honda/​Kawasaki OE Bend31.57"3.90"2.13"
McGrath Bend31.69"3.27"2.17"
Champ Bend31.69"3.66"2.17"
Country Boy Bend31.61"3.62"2.24"
Shorty Bend31.57"3.15"2.36"
CR High Bend31.30"3.74"2.44"

ODI CFT Podium Handlebars


ODI Podium Flight Handlebars

BendWidthHeightPull Back
Honda/​Kawasaki OE Bend31.57"3.90"2.13"
McGrath Bend31.69"3.27"2.17"
Champ Bend31.69"3.66"2.17"
Country Boy Bend31.61"3.62"2.24"
Shorty Bend31.57"3.15"2.36"
CR High Bend31.30"3.74"2.44"
KTM Bend31.69"3.74"1.65"

ODI Podium Flight Handlebars


ProTaper Contour 1 1/8" Handlebar

BendWidthHeightPull Back
ATV High Bend31.50"4.75"2.17"
ATV Low Bend31.50"3.74"2.37"
ATV Mid Bend31.50"4.25"2.21"
CR High Bend31.50"3.74"2.37"
CR Mid Bend31.50"3.23"2.24"
Carmichael Bend31.50"3.00"2.17"
Factory Suzuki/​KTM Bend31.50"3.63"1.85"
Henry/​Reed Bend31.50"3.62"2.24"
KX High Bend31.50"4.25"2.21"
Mini High Bend30.50"3.74"2.00"
Mini Low Bend30.50"2.80"1.85"
Pastrana FMX Bend30.50"4.75"2.17"
Pastrana MX/RM Low Bend31.50"2.91"2.17"
Raptor Bend30.30"5.64"3.41"
Universal Low Bend31.50"2.80"2.17"
Windham MX/RM Mid Bend31.50"3.90"2.13"
Woods High Bend30.50"3.74"2.45"
Woods Low Bend30.50"2.80"2.37"
YZ High Bend31.50"3.31"2.05'
SX Race Bend31.50"3.43"2.13"

ProTaper Contour 1 1/8" Handlebar


ProTaper EVO 1 1/8" Handlebar

BendWidthHeightPull Back
Carmichael Bend31.50"3.00"2.17"
CR High Bend31.50"3.74"2.45"
Henry/​Reed Bend31.50"3.62"2.24"
RM Low Bend31.50"2.91"2.17"
Windham/​RM Mid Bend31.50"3.90"2.13"
Woods High Bend31.50"3.74"2.56"
YZ High Bend31.50"3.31"2.05"
Steering Damper Low Bend31.50"2.72"1.85"
Factory Suzuki/​KTM Bend31.50"3.62"1.85"
SX Race Bend31.50"3.43"2.13"
Husqvarna Stock Bend31.93"3.15"2.00"

ProTaper EVO 1 1/8" Handlebar


ProTaper EVO Adventure 1 1/8" Handlebar

BendWidthHeightPull Back
Adventure Bend31.65"4.84"3.19"
Adventure High Bend31.65"6.85"3.19"

ProTaper EVO Adventure 1 1/8" Handlebar


ProTaper Fuzion 1 1/8" Handlebar

BendWidthHeightPull Back
Carmichael Bend31.50"2.87"2.17"
CR High Bend31.50"3.74"2.36"
Henry/​Reed Bend31.50"3.62"2.24"
SX Race Bend31.50"3.43"2.13"
Windham/​RM Mid Bend31.50"3.90"2.09"
YZ High Bend31.50"3.31"2.05"

ProTaper Fuzion 1 1/8" Handlebar


ProTaper Micro 7/8" Handlebar Kit

BendWidthHeightPull Back
Schoolboy Low Micro Bend26.50"2.95"1.65"
Schoolboy Pro Micro Bend27.52"3.11"1.81"
Schoolboy High Micro Bend26.50"3.35"1.57"
Honda Mini Micro Bend27"4.49"1.77"
KTM 50 Micro Bend25.51"3.15"1.73"

ProTaper Micro 7/8" Handlebar Kit


ProTaper Replacement Micro Handlebar Kit 7/8" Handlebar

BendWidthHeightPull Back
Schoolboy Low Micro Bend26.50"2.95"1.65"
Schoolboy Pro Micro Bend27.52"3.11"1.81"
Schoolboy High Micro Bend26.50"3.35"1.57"
Honda Mini Micro Bend27"4.49"1.77"
KTM 50 Micro Bend25.51"3.15"1.73"
Cobra JR Micro Bend26.14"3.30"1.77"
Cobra SR Micro Bend28.03"3.46"2.04"

ProTaper Replacement Micro Handlebar Kit 7/8" Handlebar


ProTaper SE 7/8" Handlebar

BendWidthHeightPull Back
ATV High Bend32.00"6.30"3.94"
ATV Low Bend32.00"5.50"3.30"
ATV Mid Bend32.00"5.90"3.00"
Carmichael Bend31.50"3.00"2.17"
CR Low Bend31.50"2.80"2.68"
CR Mid Bend31.50"3.23"2.36"
CR High Bend31.50"3.74"2.45"
Factory Suzuki Bend32.00"3.63"1.85"
Henry/​Reed Bend31.50"3.70"2.17"
Honda Mini Bend28.75"4.60"1.97"
KTM 50 Bend25.50"3.15"1.75"
KX Low Bend31.50"2.80"2.36"
KX High Bend32.00"4.25"3.07"
Kawasaki Mini Bend28.75"3.71"1.97"
Raptor Bend30.30"5.63"3.41"
RM Low Bend32.00"2.91"2.17"
RM High Bend31.50"3.23"2.87"
School Boy High Bend28.10"3.46"1.77"
School Boy Low Bend28.10"3.07"1.85"
Suzuki Mini Bend28.75"4.00"1.97"
Windham/​RM Mid Bend32.00"3.90"2.13"
XR50 Bend28.50"6.75"1.75"
YZ Low Bend31.50"2.64"2.76"
YZ High Bend31.50"3.31"2.05"
Yamaha Mini Bend28.75"3.90"2.28"
SX Race Bend31.50"3.43"2.13"
KLX 110/DRZ 110 Bend31.49"5.63"1.73"

ProTaper SE 7/8" Handlebar


Renthal 1 1/8" FatBar

BendWidthHeightPull Back
CR High Bend31.29"3.74"2.44"
KFX450R Bend30.26"3.78"2.83"
KTM 125-450 SX 12-13 Bend31.93"3.62"2.05"
KTM 85SX Bend30.67"3.46"1.97"
KTM High Bend31.70"3.74"1.65"
KTM Low Bend31.73"3.31"1.61"
KTM SX/SX-F 09-11, SUZUKI RM/RMZ 06+ Bend31.41"3.15"2.24"
KTM SXF/XCF 1632.01"3.07"2.13"
RC Mini/85cc Bend29.13"4.65"1.65"
Ricky Carmichael Bend31.57"3.89"2.12"
Ricky Carmichael High Bend31.57"4.49"2.13"
Windham Bend31.61"3.62"2.24"

Renthal 1 1/8" FatBar


Renthal Aluminum 7/8" Handlebar

BendWidthHeightPull Back
ATV Race Bend31.73"5.91"2.95"
04-09 TRX450R Bend31.10"5.59"3.54"
Fourtrax Bend30.31"6.30"3.86"
LT-R 450 Bend31.65"3.50"3.23"
Suzuki Quadracer Bend30.31"4.72"3.62"
Banshee Bend30.51"5.91"3.94"
04-05 YFZ450 Bend30.43"4.33"3.82"
06 YFZ450 Bend30.71"4.17"3.46"
Raptor 660 Bend30.91"5.51"3.94"
Raptor 700 Bend31.10"5.55"3.54"
CR Mid Bend31.34"3.50"2.28"
CR High Bend31.30"3.74"2.44"
CR 80/85 96-08 Bend29.13"3.78"2.68"
Honda CRF150R 07-09 Bend29.13"4.65"1.65"
CRF150R Adult Bend30.71"5.43"1.65"
XR250/600 Bend31.30"3.27"2.95"
KX Bend31.69"3.66"2.17"
KX Mini Bend26.57"3.54"2.68"
KX 80/85/​100 98-09 Bend28.82"3.94"2.48"
KTM 50SX Mini Racer Bend26.30"3.71"1.89"
KTM 65SX Mini Racer Bend29.29"3.15"1.93"
KTM 85/105 SX Bend30.55"3.62"1.97"
RM Bend32.05"3.11"2.32"
RMZ Bend31.42"2.91"2.28"
Windham31.61"3.62"2.24"
50/70cc Play Bike29.33"7.28"1.57"
110cc Play Bike30.2"6.06"2.75"
R. Carmichael Bend31.57"3.90"2.13"

Renthal Aluminum 7/8" Handlebar


Renthal Rider 7/8" Handlebar

BendWidthHeightPull Back
Jimmy Button Bend31.77"4.33"2.64"
R. Carmichael, Honda CR/CRF 04-10 Bend31.57"3.90"2.13"
R. Carmichael High Bend31.85"4.69"2.13"
Windham Bend31.61"3.62"2.24"

Renthal Rider 7/8" Handlebar


Renthal Twinwall 1 1/8" Handlebar

BendWidthHeightPull Back
CR High Bend31.29"3.74"2.44"
Jeremy McGrath Bend31.69"3.26"2.16"
Kevin Windham Bend31.61"3.62"2.24"
RC Mini/​85cc Bend29.13"4.65"1.65"
Ricky Carmichael Bend31.57"3.89"2.12"
Villopoto/​Stewart Bend31.69"3.66"2.16"
YZ Bend31.92"3.34"1.41"

Renthal Twinwall 1 1/8" Handlebar


TORC1 Racing Attack 1 1/8" Oversize Handlebar

BendWidthHeightPull Back
Kdub Bend31.61"3.62"2.24"
Honda Bend31.57"3.89"2.12"
Showtime Bend31.69"3.26"2.16"
RV Bend31.69"3.66"2.16"

TORC1 Racing Attack 1 1/8" Oversize Handlebar


Tusk Chub 1 1/8" Big Bar

BendWidthHeightPull Back
ATV High Bend31.50"4.75"2.41"
CR High Bend31.50"3.75"2.45"
KTM Bend31.93"3.62"2.05"
Moto Bend31.50"3.90"2.13"
YZ Bend31.60"3.50"2.38"

Tusk Chub 1 1/8" Big Bar


Tusk T-10 Aluminum 7/8" Handlebar

BendWidthHeightPull Back
ATV Sport Bend31.75"6.25"3.50"
CR High Bend32.00"3.75"3.00"
CR Mid Bend32.00"3.50"2.50"
KX High Bend32.25"4.00"3.00"
Mini High Bend29.13"4.50"2.75"
Raptor Bend31.50"6.25"4.00"
YZ High Bend32.00"3.50"3.00"

Tusk T-10 Aluminum 7/8" Handlebar


Tusk Universal Big Bar Clamp and Bar Kit

BendWidthHeightPull Back
ProTaper Contour CR High Bend31.50"3.74"2.37"
ProTaper EVO Windham MX-RM Mid Bend31.50"3.90"2.13"
Renthal FatBar Ricky Carmichael Bend31.57"3.89"2.12"
Renthal Twinwall Ricky Carmichael Bend31.57"3.89"2.12"
Tusk Chub Big Bar CR High Bend31.50"3.75"2.45"
Tusk Chub Big Bar Moto Bend31.60"2.80"2.25"

Tusk Universal Big Bar Clamp and Bar Kit


Tusk Universal Oversized Handlebar Clamp and Bar Kit

BendWidthHeightPull Back
ProTaper Contour CR High Bend31.50"3.74"2.37"
ProTaper EVO Windham MX-RM Mid Bend31.50"3.90"2.13"
Renthal FatBar Ricky Carmichael Bend31.57"3.89"2.12"
Renthal Twinwall Ricky Carmichael Bend31.57"3.89"2.12"
Tusk Chub Big Bar CR High Bend31.50"3.75"2.45"
Tusk Chub Big Bar Moto Bend31.60"2.80"2.25"

Tusk Universal Oversized Handlebar Clamp and Bar Kit


Vortex V3 7/8" Handlebar

BendWidthHeightPull Back
Mini 50cc Bend25.28"3.31"1.73"
Mini Coop Bend29.53"2.91"1.73"
Mini High Bend31.38"5.20"2.48"
Mini Low Bend29.13"4.65"1.65"
MX Bend31.61"3.62"2.24"
MX Low Bend31.69"3.27"2.17"
SX Bend31.57"3.90"1.89"
SX Straight Bend31.81"3.27"1.50"

Vortex V3 7/8" Handlebar


Vortex V3 OS 1 1/8" Handlebar

BendWidthHeightPull Back
MX Bend31.69"3.54"2.09"
MX Low Bend31.69"3.15"2.17"
SX Bend31.61"3.90"2.20"
SX Straight Bend31.81"3.27"1.50"
SX High Bend31.61"4.13"2.17"

Vortex V3 OS 1 1/8" Handlebar
