1970 Kawasaki F5 350 Clutch OEM Parts Diagram

Submodel F5 Big Horn (1970)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

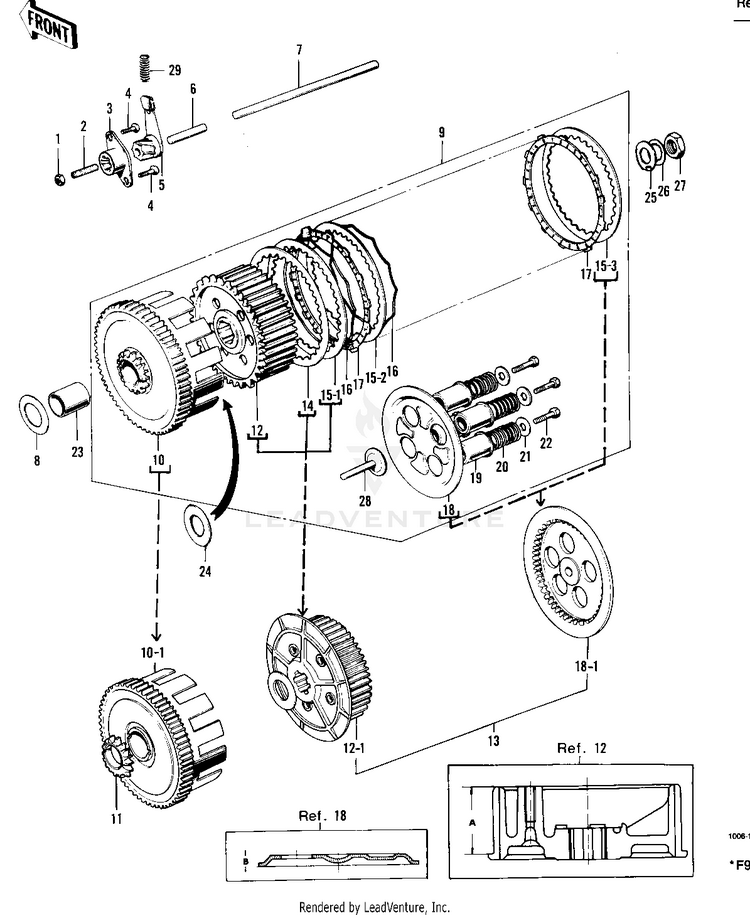

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1311AA0600

(replaces part #
311B0600)

NUT-HEX,6MM
10+ In-Stock
292014-011SCREW-CLUTCH ADJUST | E/NO. 06541
Not Shipping
2291Z0622SCREW SLOTTED | E/NO. 06540
Not Shipping
313118-005RELEASE OUTER-CLUTCH
Not Shipping
4220AA0614

(replaces part #
220B0614)

SCREW-PAN-CROS,6X14
10+ In-Stock
513102-010RELEASE INNER-CLUTCH
Not Shipping
613116-013PUSH ROD-CLUTCH,SHORT | L=79 MM
Not Shipping
713116-012PUSH ROD-CLUTCH,LONG | L=152 MM
Usually ships in 7-10 business days
892026-1536

(replaces part #
92022-145)

SPACER
Usually ships in 7-10 business days
913081-042CLUTCH-ASSY | FROM F9
Usually ships in 7-10 business days
913081-035CLUTCH ASSY | E/NO. 06541
Usually ships in 7-10 business days
913081-029CLUTCH ASSY | E/NO. 06540
Usually ships in 7-10 business days
1013095-027

(replaces part #
13095021)

HOUSING-CLUTCH | E/NO. 06540
Usually ships in 7-10 business days
10-113095-027HOUSING-CLUTCH | E/NO. 06541
Usually ships in 7-10 business days
1113075-007PINION-KICKSTARTER | E/NO. 06541
Usually ships in 7-10 business days
1213087-030HUB-CLUTCH | E/NO. 06541
Usually ships in 7-10 business days
1213087-014HUB CLUTCH | E/NO. 06540
Usually ships in 7-10 business days
12-113087-030HUB-CLUTCH | 13090-011 & 1 EA 13089-013 NOT
Usually ships in 7-10 business days
1313084-005HUB SET-CLUTCH | CONTAINS 13087-030
Usually ships in 7-10 business days
1413090-011PLATE CLUTCH OUTER
Not Shipping
15-113089-013PLATE CLUTCH STEEL | NOT REQ'D FOR 13807-030
10+ In-Stock
15-213089-013PLATE CLUTCH STEEL
10+ In-Stock
15-313089-013PLATE CLUTCH STEEL | NOT REQ'D FOR 13187-005
10+ In-Stock
1613229-003RING-CLUTCH STEEL
Not Shipping
1713088-021PLATE-CLUTCH FRICTION
Not Shipping
1813187-005PLATE-CLUTCH SPRING | E/NO. 06540
Usually ships in 7-10 business days
18-113187-005PLATE-CLUTCH SPRING | 1 EA 13089-013 NOT REQ'D
Usually ships in 7-10 business days
1913092-005GUIDE CLUTCH SPRING
Usually ships in 7-10 business days
2092081-042SPRING CLUTCH
Usually ships in 7-10 business days
2113091-009HOLDER CL SPG6.5X20X2
Not Shipping
22112BA0618

(replaces part #
112G0618)

BOLT-UPSET
10+ In-Stock
2392028-081BUSHING 25X30X34L
Usually ships in 7-10 business days
2492026-022SPACER,25.5X47X2.5
Usually ships in 7-10 business days
2592022-074WASHER PL 19X36.5X0.8
Not Shipping
26463G1800WASHER LOCK 18MM
Not Shipping
2792015-019NUT 18MM
2 In-Stock
2813116-011PUSHER-CLTCH SPRG PLT
Usually ships in 7-10 business days
2992081-069SPRING-CLUTCH RELEASE
1 In-Stock
