1970 Kawasaki F5 350 Crankshaft/Piston/Rotary Valve OEM Parts Diagram

Submodel F5 Big Horn (1970)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT/PISTON/ROTARY VALVE

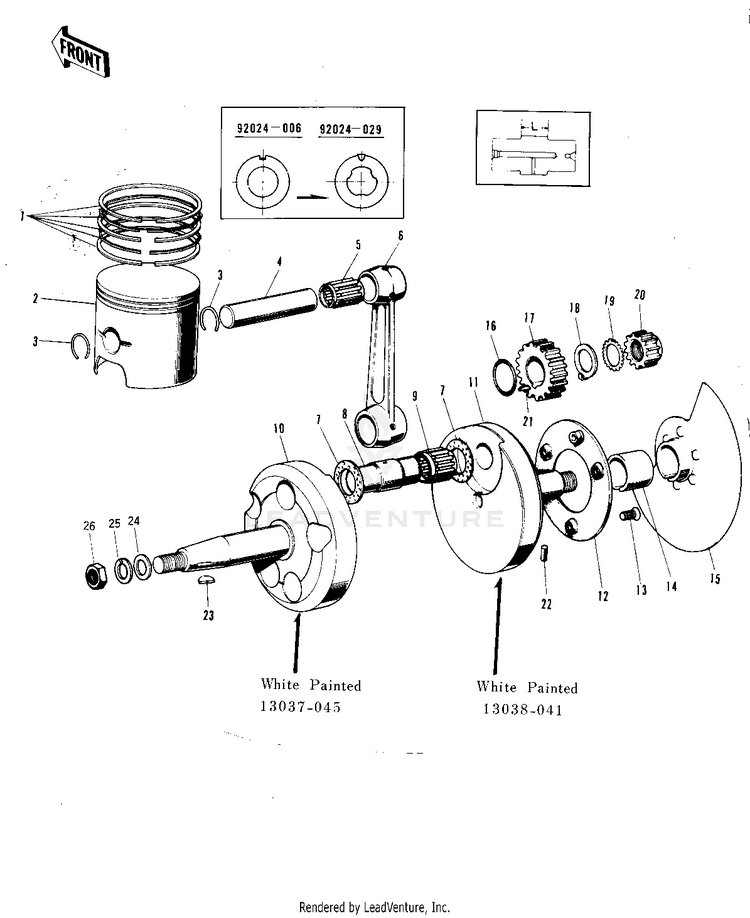

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-13036-036CRANK&CONROD ASSY | Includes items 6 - 13; E/NO. 07269
Usually ships in 7-10 business days
-13044-017CONNECTING ROD SET | Includes items 6 - 9; E/NO. 07269
Usually ships in 7-10 business days
-13044-009CONNECTING ROD SET | Includes items 6 - 9
Usually ships in 7-10 business days
113008-024RING SET,STD
Not Shipping
213001-039PISTON,STD
Not Shipping
392036-015CIRCLIP-PISTON PIN
2 In-Stock
413002-016PIN-PISTON
Not Shipping
513033-1010BEARING-SMALL END | KBK182223.8*
5 In-Stock
792026-069WASHER-CONROD SIDE | E/NO. 07269
Usually ships in 7-10 business days
792026-065WASHER-PLAIN
Usually ships in 7-10 business days
813035-026CRANK PIN | E/NO. 07269
Usually ships in 7-10 business days
813035-021CRANK PIN
Usually ships in 7-10 business days
913034-032NEEDLE BRG-BIG END | PK 293817.8*
Usually ships in 7-10 business days
1013037-035CRANKSHAFT L.H
Usually ships in 7-10 business days
1013037-045CRANKSHAFT,L.H | E/NO. 07269
Usually ships in 7-10 business days
1113038-031CRANKSHAFT-R.H
Usually ships in 7-10 business days
1113038-045CRANKSHAFT,R.H | E/NO. 07269
Usually ships in 7-10 business days
1213045-006HOLDER-CRANKSHAFT OIL
Usually ships in 7-10 business days
1392012-002SCREW OVL CNTSNK 5X10
Usually ships in 7-10 business days
1492027-097CALLAR-CRANKSHAFT
Not Shipping
1512001-020VALVE-ROTARY DISC
Not Shipping
16670B30220 RING,22MM
Not Shipping
1713097-1040GEAR,PRIMARY 22T
Usually ships in 7-10 business days
1892024-029WASHER-LOCK,18MM
Usually ships in 7-10 business days
1892024-067WASHER,LOCK,18MM
Not Shipping
19464G1800WASHER-LOCK,18MM | NOT REQUIRED
Usually ships in 7-10 business days
2016084-011PINION-OIL PUMP
Not Shipping
21510A5100KEY-WOODRUFF
10+ In-Stock
22610A0412ROLLER,4X12
Usually ships in 7-10 business days
2392038-001KEY,WOODRUFF
10+ In-Stock
2492022-172WASHER-PLAIN,14MM
Not Shipping
25461F1400WASHER SPRING 14MM
Not Shipping
2692015-043NUT 14MM
Not Shipping
