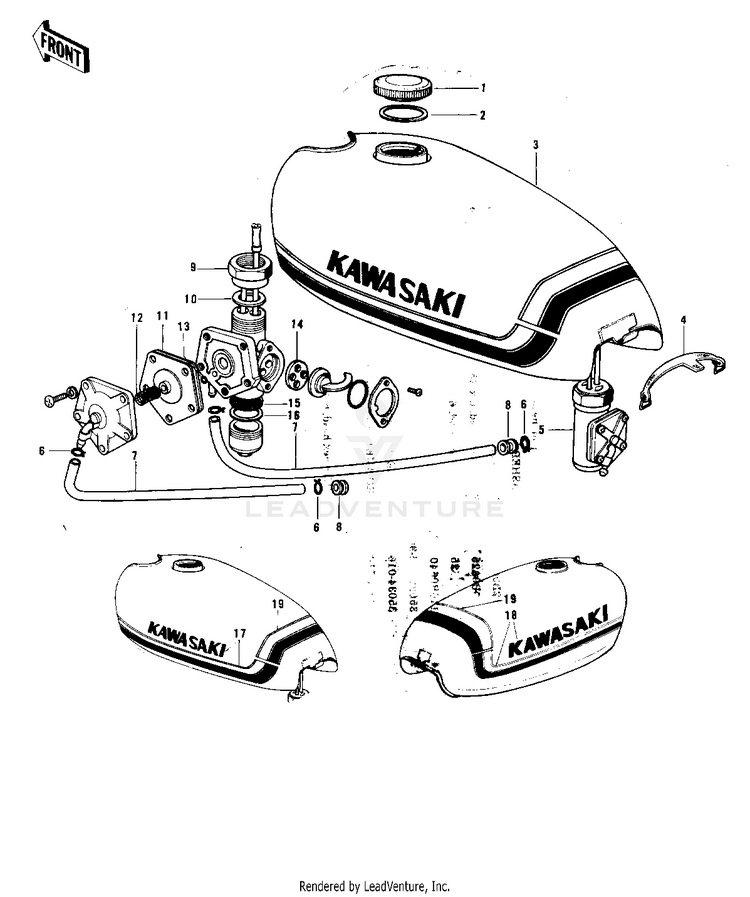

1974 Kawasaki F9 350 Fuel Tank (F9-A) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
-	51001-078-90	TANK,FUEL,L.GREEN \| Includes item 3 and 17 - 1	Usually ships in 7-10 business days
1	51048-006	CAP,FUEL TANK LOCKING	Usually ships in 7-10 business days
2	51059-007	GASKET-FUEL TANK CAP	Not Shipping
4	92072-049	BAND,FUEL TANK	Not Shipping
5	51023-048	COCK ASSY,FUEL	Not Shipping
6	92037-010	CLAMP,TUBE	10+ In-Stock
7	92059-072	PIPE-OIL \| L=345 M/M	Usually ships in 7-10 business days
8	92071-038	GROMMET PIPE	Not Shipping
9	51035-008	FUEL COCK JOINT NUT	Usually ships in 7-10 business days
10	92065-066	GASKET-FUEL COCK JONT	Not Shipping
11	51069-002	DIAPHRAGM ASSY	Not Shipping
12	92081-072	SPRING-DIAPHRAGM	Not Shipping
13	92065-052	GASKET	Not Shipping
14	92065-065	GASKET-FUEL COCK LEV	Not Shipping
15	51038-006	STRAINER FUEL	Usually ships in 7-10 business days
16	51037-009	GASKET FUEL COCK CUP	Not Shipping
17	56013-050	DECAL,L.H FUEL TANK \| TRANSFER TYPE	Usually ships in 7-10 business days
18	56014-040	DECAL,R.H FUEL TANK \| TRANSFER TYPE	Usually ships in 7-10 business days
19	56027-120	DECAL,TOP FUEL TANK \| TRANSFER TYPE	Usually ships in 7-10 business days
