1975 Kawasaki F9 350 Taillight (F9-A) OEM Parts Diagram

Submodel F9-C (1975)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

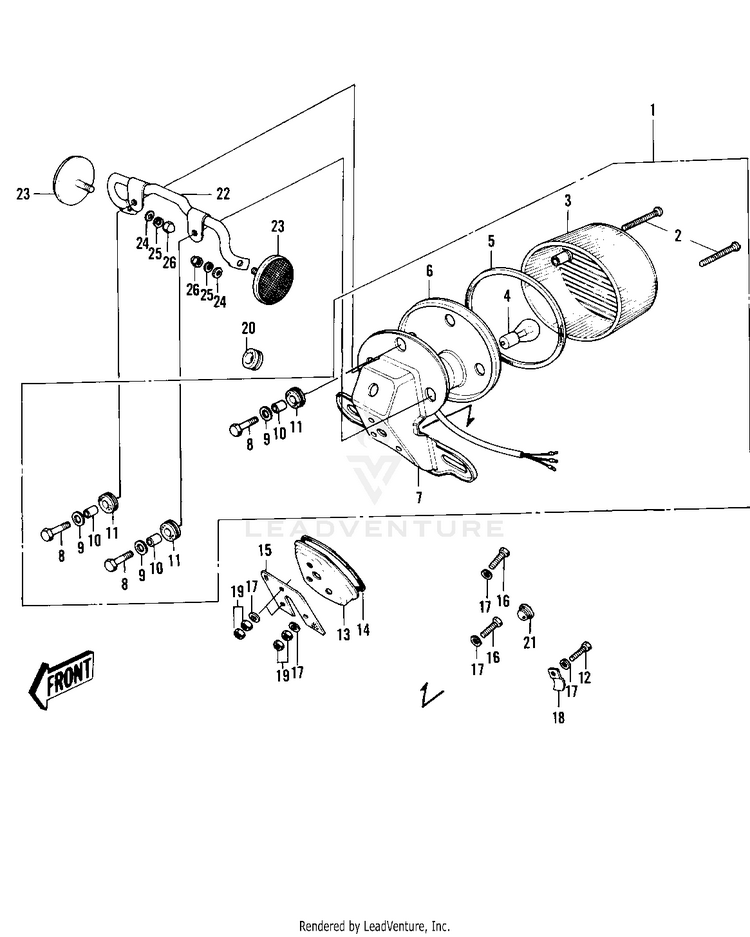

TAILLIGHT (F9-A)

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
123024-035-21LAMP ASSY,TAIL,BLACK
Usually ships in 7-10 business days
2220E0435ASCREW-PAN HEAD,4X35
Usually ships in 7-10 business days
323026-023LENS-TAIL LAMP
Usually ships in 7-10 business days
492069-028BULB,6V 17/5.3W | 17 5.3W
1 In-Stock
523028-018GASKET-TAIL LAMP LENS
Usually ships in 7-10 business days
623027-030CASE,TAIL LAMP
Usually ships in 7-10 business days
723036-019-21BKT-LICENSE PLT.BLACK
Usually ships in 7-10 business days
8112BA0622

(replaces part #
112B0622)

BOLT-UPSET
9 In-Stock
992200-0283

(replaces part #
92022-125)

WASHER,6.5X20X1.6
10+ In-Stock
1092027-129COLLAR,6.8X10X8.5
10+ In-Stock
1192075-076DAMPER RUBBER
10+ In-Stock
1292001-1456BOLT,EXCLUSIVE
Usually ships in 7-10 business days
1335031-006STAY,TAIL LAMP
Usually ships in 7-10 business days
1435016-006DAMPER RUBBER,TAIL
Not Shipping
1535039-005DAMPER-TAIL LAMP SHCK | 8T
Not Shipping
16112G0640BOLT-UPSET,6X40
Not Shipping
1792200-0283

(replaces part #
92022-125)

WASHER,6.5X20X1.6
10+ In-Stock
1835024-002CLIP WIRING HARNESS
Usually ships in 7-10 business days
19312AA0600

(replaces part #
312B0600)

NUT-HEX
10+ In-Stock
2092071-019GROMMET HARNESS 10MM
6 In-Stock
2192074-025PLUG,RUBBER
Usually ships in 7-10 business days
2228013-005BRACKET-REFLECTOR
Usually ships in 7-10 business days
2328012-008REFLECTOR-REFLEX,REAR
Usually ships in 7-10 business days
24410AA0500

(replaces part #
411B0500)

WASHER-PLAIN-SMALL
8 In-Stock
25461DA0500

(replaces part #
461F0500)

WASHER-SPRING,5MM
10+ In-Stock
26322N0500NUT-CAP,5MM
Not Shipping
