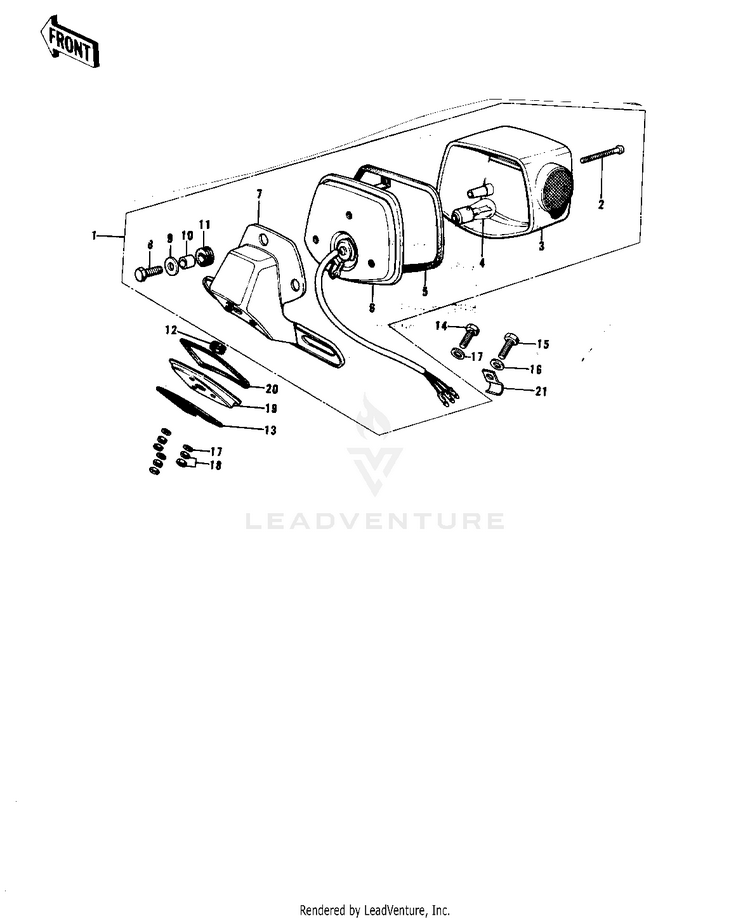

1975 Kawasaki F9 350 Taillight OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	23024-046-21	LAMP ASSY,TAIL,F.BLK	Usually ships in 7-10 business days
2	220E0450	SCREW PAN HEAD 4X50 \| F9C	Usually ships in 7-10 business days
2	220R0455	SCREW \| F9B	Usually ships in 7-10 business days
3	23026-028	LENS,TAIL LAMP	Not Shipping
4	92069-074	BULB,60-32/3CP	Not Shipping
5	23028-019	GASKET,TAIL LAMP LENS	Usually ships in 7-10 business days
6	23027-1018	BODY COMP TAIL LAMP	Usually ships in 7-10 business days
7	23036-036-21	BKT,LICENSE PIT,BLACK	Usually ships in 7-10 business days
8	112BA0620 (replaces part # 112G0620)	BOLT-UPSET	10+ In-Stock
9	92200-0283 (replaces part # 92022-125)	WASHER,6.5X20X1.6	10+ In-Stock
10	92027-129	COLLAR,6.8X10X8.5	10+ In-Stock
11	92075-076	DAMPER RUBBER	10+ In-Stock
12	92071-019	GROMMET HARNESS 10MM	6 In-Stock
13	35039-005	DAMPER-TAIL LAMP SHCK	Not Shipping
14	112G0645	BOLT-UPSET \| F9C	Not Shipping
14	110N0632	BOLT-HEX HEAD,6X32	Usually ships in 7-10 business days
15	110G0650	BOLT,HEX HEAD,6X50	Not Shipping
16	92022-024	WASHER,7X16X1.2	7 In-Stock
17	92200-0283 (replaces part # 92022-125)	WASHER,6.5X20X1.6	10+ In-Stock
18	311AA0600 (replaces part # 311B0600)	NUT-HEX,6MM \| F9C	10+ In-Stock
18	312AA0600 (replaces part # 312B0600)	NUT-HEX	10+ In-Stock
19	35031-007	STAY, TAIL LAMP	Usually ships in 7-10 business days
20	35016-006	DAMPER RUBBER,TAIL	Not Shipping
21	35024-002	CLIP WIRING HARNESS	Usually ships in 7-10 business days
