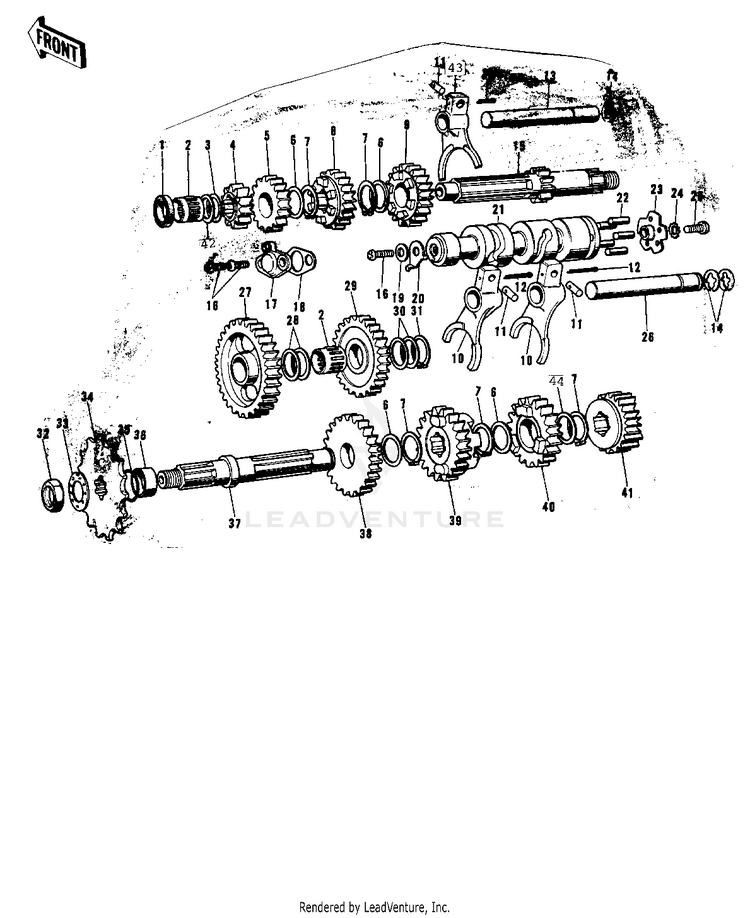

1975 Kawasaki F9 350 Transmission/Change Drum OEM Parts Diagram

Submodel F9-C (1975)

Shop Aftermarket Parts

TRANSMISSION/CHANGE DRUM

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	92050-034	OIL SEAL-CLTH PSH ROD	Not Shipping
2	92046-025	BEARING-NEEDLE	Usually ships in 7-10 business days
3	92022-113	WASHER THRUST	Usually ships in 7-10 business days
4	13130-021	2ND GEAR-DRIVE SHAFT \| 14T	Usually ships in 7-10 business days
5	13134-005	4TH GEAR-DRIVE SHAFT \| 20T	Usually ships in 7-10 business days
6	92022-161	WASHER,25.3X30X1	10+ In-Stock
7	92033-026	RING-SNAP,24MM	10+ In-Stock
8	13132-020	3RD GEAR-DRIVE SHAFT \| 18T	Usually ships in 7-10 business days
9	13136-047	TOP GEAR,DRIVE SHAFT \| 28T	Usually ships in 7-10 business days
10	13140-051	FORK,SELECTOR	Usually ships in 7-10 business days
11	92043-005	PIN SELECT FORK GUIDE	Usually ships in 7-10 business days
12	550D3018	PIN-COTTER,3.0X18	Usually ships in 7-10 business days
13	13209-009	ROD-SHIFT \| L=113 M/M	Usually ships in 7-10 business days
14	482J0100	CIRCLIP-TYPE-E,10MM	8 In-Stock
15	13127-025	SHAFT-DRIVE	Usually ships in 7-10 business days
16	220AA0616 (replaces part # 220B0616)	SCREW-PAN-CROS,6X16	10+ In-Stock
17	13151-1001	SWITCH,NEUTRAL	Usually ships in 7-10 business days
18	13146-002	GASKET NEUTRAL SWITCH	Usually ships in 7-10 business days
19	410AA0600 (replaces part # 410B0600)	WASHER-PLAIN-SMALL	10+ In-Stock
20	21007-1003	ROTOR,NEUTRAL INDICTR	Usually ships in 7-10 business days
21	13239-006	DRUM ASSY-GEAR CHANGE	Usually ships in 7-10 business days
22	92042-020	PIN,DOWEL,4X17.8	Usually ships in 7-10 business days
23	13142-010	PLATE-CHANGE DRUM PIN	Usually ships in 7-10 business days
24	464H0600	WASHER LOCK 6MM	Not Shipping
25	221AA0620 (replaces part # 221B0620)	SCREW-CNTSNK HD,6X20	10+ In-Stock
26	13209-010	ROD-SHIFT \| L=119 M/M	Usually ships in 7-10 business days
27	13129-042	LOW GEAR-OUTPUT SHAFT \| 27T	Usually ships in 7-10 business days
28	92022-112	WASHER,20.5X30X1,STEEL	1 In-Stock
29	13073-005	IDLE GEAR-KICKSTARTER	Not Shipping
30	92022-112	WASHER,20.5X30X1,STEEL \| 1.0T	1 In-Stock
30	92002-144	WASHER THRUST \| 0.5T	Not Shipping
31	480J1900	CIRCLIP-TYPE-C,19MM	10+ In-Stock
32	92015-019	NUT 18MM	2 In-Stock
33	92024-067	WASHER,LOCK,18MM	Not Shipping
34	13144-043	ENG SPROCKET 13T (OPT \| OPTION	Not Shipping
34	13144-017	ENGINE SPROCKET 14T \| STD	Not Shipping
34	13144-025	ENGINE SPROCKET 15T \| OPTION	Usually ships in 7-10 business days
35	92055-035	RING-O	10+ In-Stock
36	92027-163	COLLAR-ENG SPROKET	Not Shipping
37	13128-027	SHAFT-OUTPUT	Usually ships in 7-10 business days
38	13131-024	2ND GEAR-OUTPUT SHAFT \| 24T	Usually ships in 7-10 business days
39	13135-009	4TH GEAR-OUTPUT SHAFT \| 18T	Usually ships in 7-10 business days
40	13133-019	3RD GEAR-OUTPUT SHAFT \| 21T	Usually ships in 7-10 business days
41	13137-013	TOP GEAR-OUTPUT SHAFT \| 20T	Usually ships in 7-10 business days
42	92022-223	WASHER,THRUST	Usually ships in 7-10 business days
43	13140-052	FORK-SELECTOR	Usually ships in 7-10 business days
44	92024-060	WASHER,LOCK	Usually ships in 7-10 business days
