1986 Kawasaki BAYOU 300 2X4 Engine Covers OEM Parts Diagram

Submodel KLF300-A1 Bayou 300 (1986)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

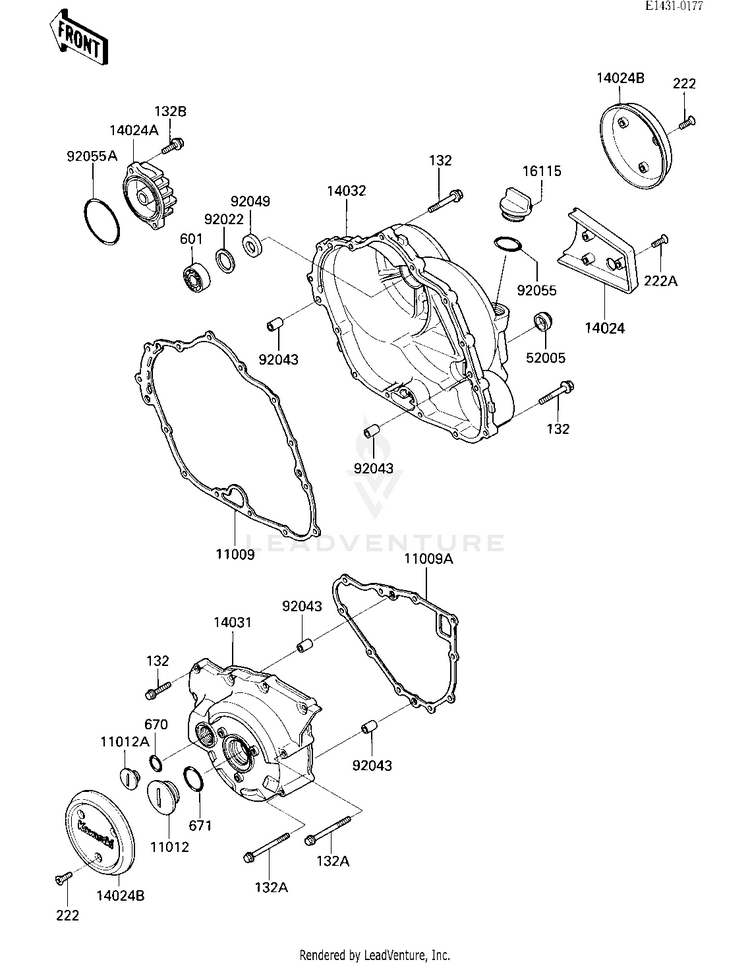

ENGINE COVERS

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100911060-1655

(replaces part #
11060-1225)

GASKET,CLUTCH COVER
6 In-Stock
11009A11060-1656

(replaces part #
11060-1226)

GASKET,GENERATOR COVR
8 In-Stock
1101211012-1362CAP
1 In-Stock
11012A11012-1363CAP,TOP MARK
2 In-Stock
132132BB0630

(replaces part #
132J0630)

BOLT-FLANGED-SMALL,6X30
10+ In-Stock
132A132BB0670

(replaces part #
132J0670)

BOLT-FLANGED-SMALL,6X70
Usually ships in 7-10 business days
132B132BD0625

(replaces part #
132Y0625)

BOLT-FLANGED-SMALL,6X25
9 In-Stock
1402414024-1061COVER,RELEASE ADJUSTE
Usually ships in 7-10 business days
14024A14024-1062COVER,OIL FILTER
Usually ships in 7-10 business days
14024B14025-1807COVER,CLUTCH COVER
Usually ships in 7-10 business days
1403114031-1181COVER-GENERATOR
Usually ships in 7-10 business days
1403214032-1433

(replaces part #
14032-1197)

COVER-CLUTCH
Usually ships in 7-10 business days
1611516115-1009CAP-OIL FILLER
4 In-Stock
222222C0510SCREW-CSK-RD-CROS
Not Shipping
222A222AB0518

(replaces part #
222C0518)

SCREW-CSK-RD-CROS
3 In-Stock
5200552005-1009GAUGE,OIL LEVEL
10+ In-Stock
601601B6202BEARING-BALL,#6202C3
670670B2018O RING,18MM
10+ In-Stock
671671B2540O RING,40MM
6 In-Stock
9202292022-1109WASHER,25.3X33X1
Usually ships in 7-10 business days
9204392043-1263PIN,6.2X8X14
10+ In-Stock
9204992049-1158SEAL-OIL,SCY 15X30X7
3 In-Stock
9205592055-049RING-O,31.5X2.6
10+ In-Stock
92055A92055-1294RING-O,63.6X2.4
4 In-Stock
