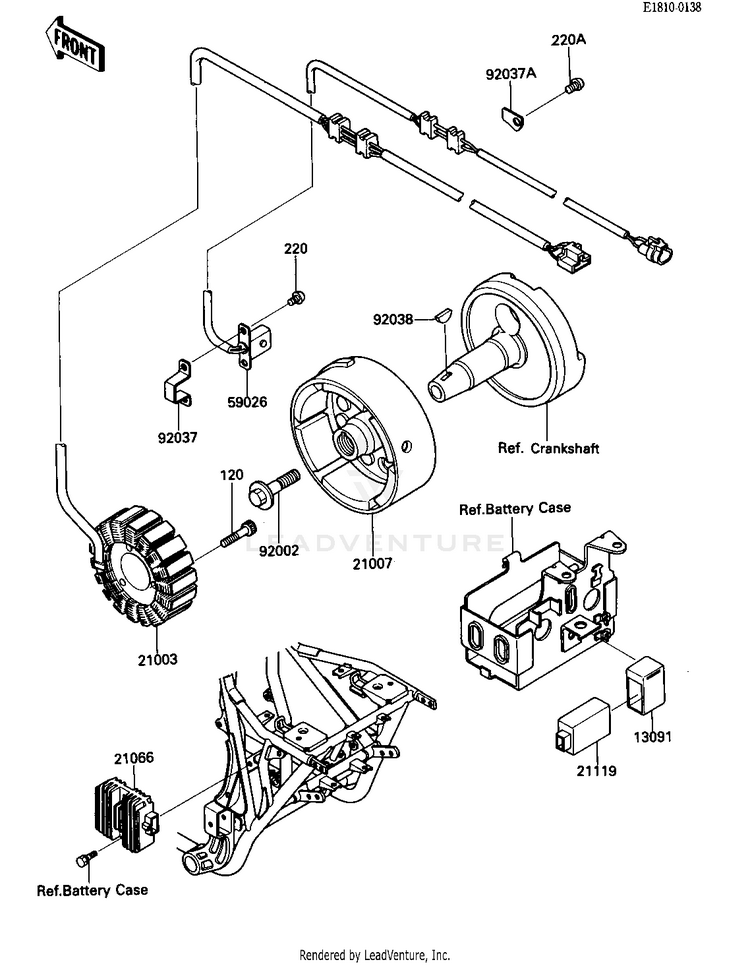

1986 Kawasaki BAYOU 300 2X4 Ignition/Generator/Regulator OEM Parts Diagram

Submodel KLF300-A1 Bayou 300 (1986)

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
120	120CA0630 (replaces part # 120P0630)	BOLT-SOCKET,6X30	6 In-Stock
13091	13091-1095	HOLDER	Usually ships in 7-10 business days
21003	21003-1128	STATOR	Usually ships in 7-10 business days
21007	21007-1133	ROTOR	Not Shipping
21066	21066-1101 (replaces part # 21066-1055)	REGULATOR-VOLTAGE	Usually ships in 7-10 business days
21119	21119-1193	IGNITER	Usually ships in 7-10 business days
220	220AA0512 (replaces part # 220B0512)	SCREW-PAN-CROS,5X12	5 In-Stock
220A	220AA0612 (replaces part # 220B0612)	SCREW-PAN-CROS,6X12	10+ In-Stock
59026	59026-1069	COIL-PULSING	Usually ships in 7-10 business days
92002	92002-1296	BOLT,FLANGED,10X40	2 In-Stock
92037	92037-1655	CLAMP,GENERATOR LEAD	Usually ships in 7-10 business days
92037A	92037-1656	CLAMP,WIRING HARNESS	Usually ships in 7-10 business days
92038	92038-001	KEY,WOODRUFF	10+ In-Stock
