1986 Kawasaki Vulcan VN750 Front Master Cylinder OEM Parts Diagram

Submodel VN750-A2 Vulcan 750 (1986)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

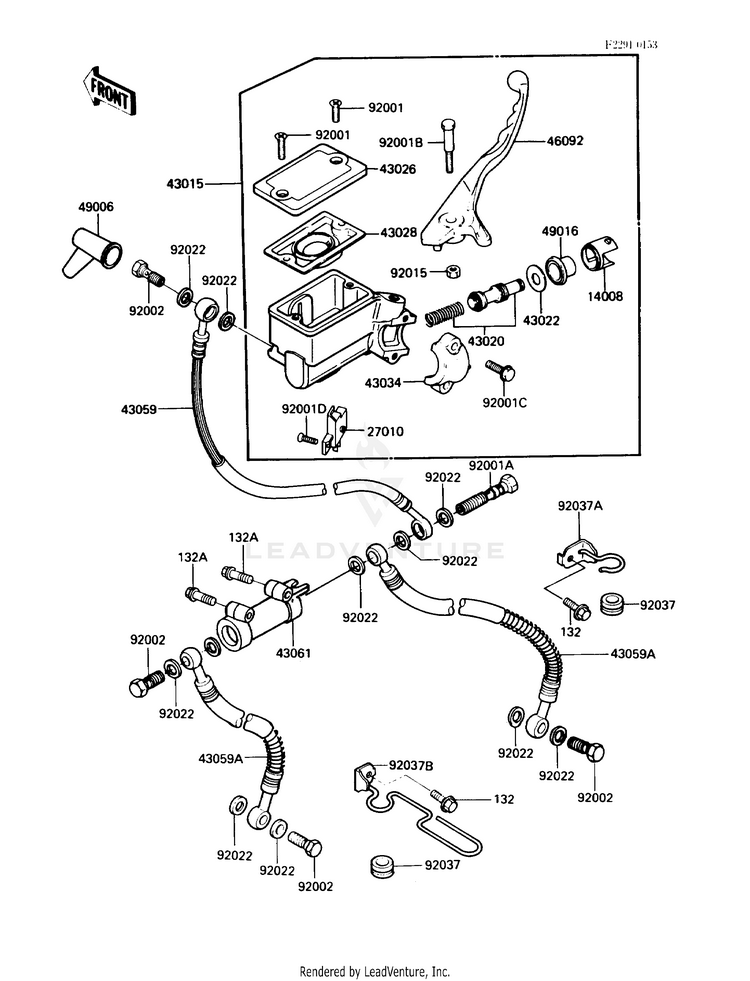

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
132132E0612BOLT-FLANGED-SMALL,6X12
Usually ships in 7-10 business days
132A132BA0635

(replaces part #
132G0635)

BOLT-FLANGED-SMALL,6X35
10+ In-Stock
1400814008-1035LINER,PISTON
Usually ships in 7-10 business days
2701027010-1056SWITCH,BRAKE
Usually ships in 7-10 business days
4301543015-1313CYLINDER-ASSY-MASTER,
Usually ships in 7-10 business days
4302043020-1079PISTON-COMP-BRAKE
Usually ships in 7-10 business days
4302243022-1009STOPPER-BRAKE,PISTON
Usually ships in 7-10 business days
4302643026-1056CAP-BRAKE
Usually ships in 7-10 business days
4302843028-1029DIAPHRAGM,MASTER CYL1
Usually ships in 7-10 business days
4303443034-1001HOLDER,MASTER CYLINDR
Not Shipping
4305943095-1373

(replaces part #
43059-1293)

HOSE-BRAKE,FR
Usually ships in 7-10 business days
43059A43095-1374

(replaces part #
43059-1310)

HOSE-BRAKE,FR
Usually ships in 7-10 business days
4306143061-1002JOINT,FR BRAKE HOSE
Usually ships in 7-10 business days
4609246092-1150LEVER-GRIP,FRONT BRAK
Usually ships in 7-10 business days
4900649006-1041

(replaces part #
49006-1040)

BOOT,DUST
4901649016-1041COVER-SEAL,BRK PISTON
Usually ships in 7-10 business days
9200192001-1055SCREW,COUNTERSUNK HED
4 In-Stock
92001A92153-0628

(replaces part #
92001-1203)

BOLT,OIL,L=37
Usually ships in 7-10 business days
92001B92001-1512BOLT,6X37.3,BLACK
Not Shipping
92001C92001-1513BOLT,W/WASHER,6X25,BL
Usually ships in 7-10 business days
92001D92001-1532SCREW-COUNTERSUNK
Not Shipping
9200292153-0627

(replaces part #
92002-1888)

BOLT,OIL,L=23
10+ In-Stock
9201592210-0006

(replaces part #
92015-1191)

NUT,LOCK,6MM
3 In-Stock
9202249091-0001

(replaces part #
43067-001)

WASHER-SEAL,10.1X14.5X1.5
10+ In-Stock
9203743064-006GROMMET,HOSE CLAMP
4 In-Stock
92037A92171-0105

(replaces part #
92037-1218)

CLAMP,BRAKE HOSE
Usually ships in 7-10 business days
92037B92171-0103

(replaces part #
92037-1367)

CLAMP,BRAKE HOSE,LH
Usually ships in 7-10 business days
