1988 Kawasaki Vulcan VN750 Battery Case OEM Parts Diagram

Submodel VN750-A4 Vulcan 750 (1988)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

BATTERY CASE

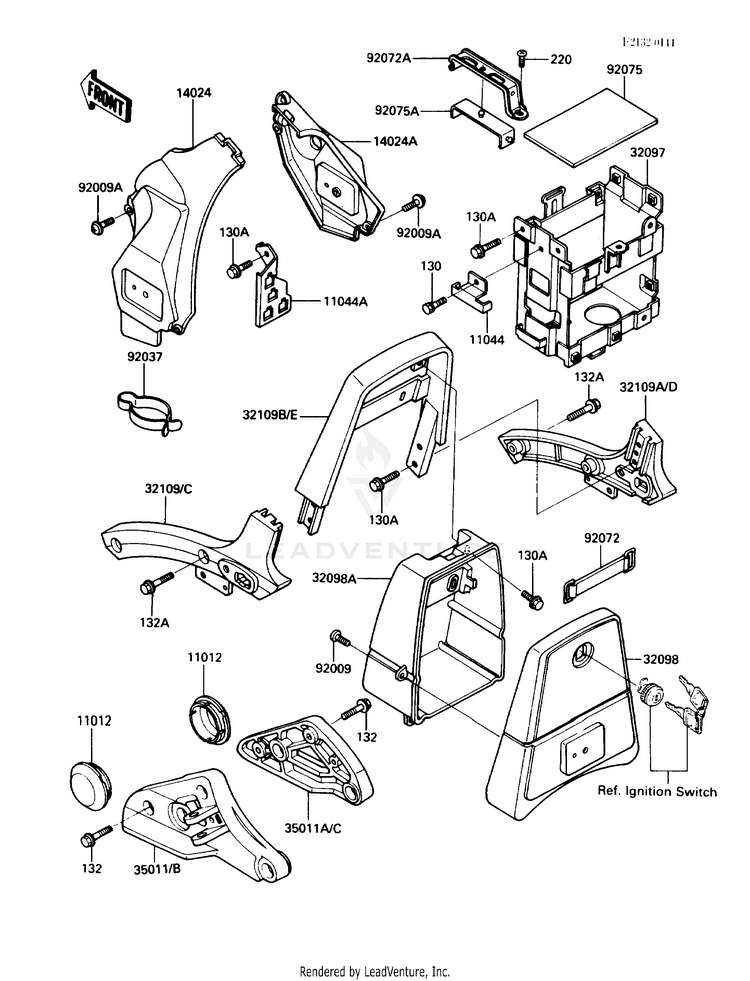

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1101211012-1433CAP,SWING ARM
Usually ships in 7-10 business days
1104411043-1934BRACKET,JOINT BOX
Usually ships in 7-10 business days
11044A11043-1935BRACKET,HARNESS
Usually ships in 7-10 business days
130130AA0608

(replaces part #
130B0608)

BOLT-FLANGED,6X8
10+ In-Stock
130A130AA0612

(replaces part #
130D0612)

BOLT-FLANGED,6X12
Usually ships in 7-10 business days
132132E0830BOLT-FLANGED-SMALL,8X30
Usually ships in 7-10 business days
132A132E0835BOLT-FLANGED-SMALL,8X35
Usually ships in 7-10 business days
1402414025-1994COVER,FUEL TANK,LH
Usually ships in 7-10 business days
14024A14025-1995COVER,FUEL TANK,RH
Usually ships in 7-10 business days
220220AA0612

(replaces part #
220B0612)

SCREW-PAN-CROS,6X12
10+ In-Stock
3209732097-1121CASE-BATTERY
Usually ships in 7-10 business days
3209832098-1057CASE-TOOL
Usually ships in 7-10 business days
32098A32098-1058CASE-TOOL
Usually ships in 7-10 business days
32109C32109-1131GRIP-FRAME,LWR,LH
Usually ships in 7-10 business days
32109D32109-1132GRIP-FRAME,LWR,RH
Usually ships in 7-10 business days
32109E32109-1133GRIP-FRAME,UPP
Usually ships in 7-10 business days
35011B35011-1263STAY,MUFFLER,LH
Usually ships in 7-10 business days
35011C35011-1264STAY,MUFFLER,RH
Usually ships in 7-10 business days
9200992009-1264SCREW,TAPPING,5X16
8 In-Stock
92009A92009-1662

(replaces part #
92009-1288)

SCREW,6X14
10+ In-Stock
9203792037-093CLAMP,CABLE
7 In-Stock
9207292072-053BAND,L=82
Usually ships in 7-10 business days
92072A92072-1177BAND,BATTERY
Usually ships in 7-10 business days
9207592075-1076DAMPER
Usually ships in 7-10 business days
92075A92075-1371DAMPER,BATTERY BAND
Usually ships in 7-10 business days
