1989 Kawasaki Vulcan VN1500 Crankshaft OEM Parts Diagram

Submodel VN1500-B3 Vulcan 88 SE (1989)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

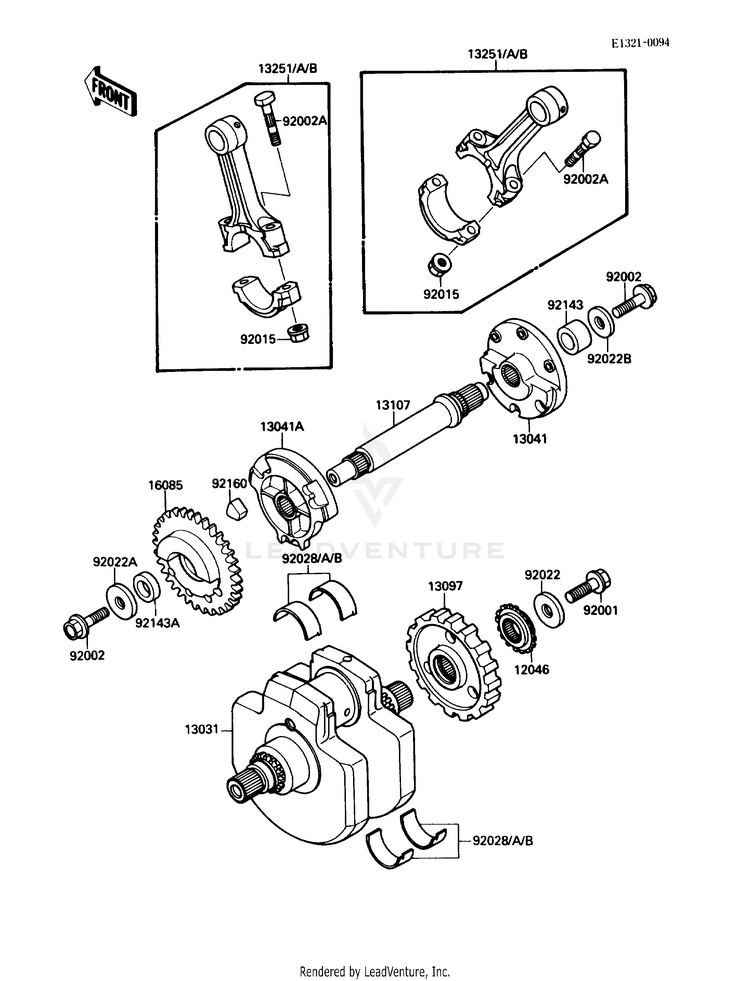

CRANKSHAFT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1204612046-1103SPROCKET,WATER PUMP
Usually ships in 7-10 business days
1303113031-1242CRANKSHAFT-COMP
Usually ships in 7-10 business days
1304113041-1089BALANCER
Usually ships in 7-10 business days
13041A13041-1093BALANCER,LH
Usually ships in 7-10 business days
1309713097-1369

(replaces part #
13097-1202)

GEAR-PRIMARY SPUR,56T
Usually ships in 7-10 business days
1310713107-1195SHAFT,BALANCER
Usually ships in 7-10 business days
1325113251-1080-II

(replaces part #
13251-1080-FF)

ROD-ASSY-CONNECTING,I
Usually ships in 7-10 business days
13251A13251-1080-II

(replaces part #
13251-1080-GG)

ROD-ASSY-CONNECTING,I
Usually ships in 7-10 business days
13251B13251-1080-II

(replaces part #
13251-1080-HH)

ROD-ASSY-CONNECTING,I
Usually ships in 7-10 business days
1608516085-1215GEAR,BALANCER
Usually ships in 7-10 business days
9200192001-1146BOLT,FLANGED,12X40
Usually ships in 7-10 business days
9200292002-1296BOLT,FLANGED,10X40
2 In-Stock
92002A92002-1896BOLT,CONNECTING ROD
Usually ships in 7-10 business days
9201592015-1643NUT,CONNECTING ROD
Usually ships in 7-10 business days
9202292022-1904WASHER,12X40X6
Usually ships in 7-10 business days
92022A92022-1905WASHER,10X40X6
Usually ships in 7-10 business days
92022B92022-1906WASHER,10X33X6
Usually ships in 7-10 business days
9202892028-1474BUSHING,CONNECTING ROD,BLUE
Usually ships in 7-10 business days
92028A92028-1475BUSHING,CONNECTING ROD,BLACK
Usually ships in 7-10 business days
92028B92028-1476BUSHING,CONNECTING ROD,BROWN
Usually ships in 7-10 business days
9214392143-1093COLLAR,20X30X24
Usually ships in 7-10 business days
92143A92143-1126COLLAR,20X31X10
Usually ships in 7-10 business days
9216092160-1024DAMPER
Usually ships in 7-10 business days
