1990 Kawasaki BAYOU 300 4x4 Front Suspension OEM Parts Diagram

Submodel KLF300-C2 Bayou 300 4X4 (1990)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT SUSPENSION

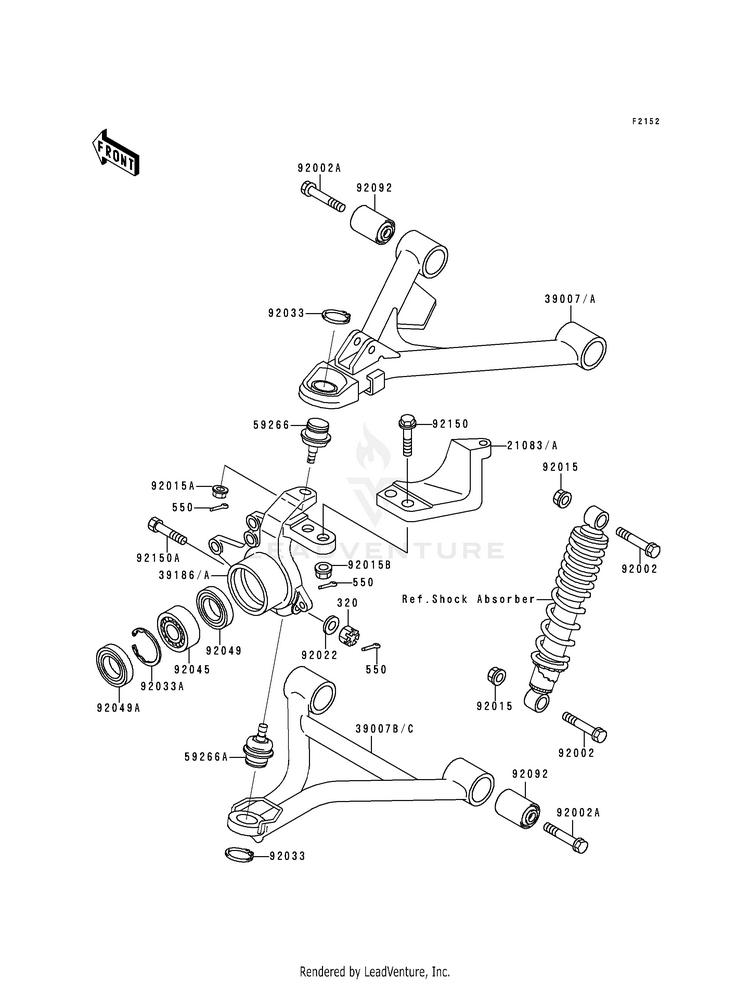

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
2108321083-1074ARM,FR,LH
Usually ships in 7-10 business days
21083A21083-1075ARM,FR,RH
Usually ships in 7-10 business days
320320BA1000

(replaces part #
320H1000)

NUT-CASTLE
4 In-Stock
3900739007-1159ARM-SUSP,FR,LH,UPPER
Usually ships in 7-10 business days
39007A39007-1160ARM-SUSP,FR,RH,UPP
Usually ships in 7-10 business days
39007B39007-1246

(replaces part #
39007-1161)

ARM-SUSP,FR,LH,LWR
Usually ships in 7-10 business days
39007C39007-1247

(replaces part #
39007-1162)

ARM-SUSP,FR,RH,LWR
Usually ships in 7-10 business days
3918639186-1098

(replaces part #
39186-1085)

KNUCKLE,FR,LH
Usually ships in 7-10 business days
39186A39186-1099

(replaces part #
39186-1086)

KNUCKLE,FR,RH
Usually ships in 7-10 business days
550550AA2015

(replaces part #
550D2015)

PIN-COTTER,2.0X15
10+ In-Stock
5926659266-1075JOINT-BALL
Usually ships in 7-10 business days
59266A59266-1098

(replaces part #
59266-1077)

JOINT-BALL
Usually ships in 7-10 business days
9200292002-1740BOLT,FLANGED,10X46
Usually ships in 7-10 business days
92002A92002-1861BOLT,FLANGED,12X67
6 In-Stock
9201592015-1597NUT,LOCK,10MM
10+ In-Stock
92015A92015-1717NUT,LOCK,FLANGED,10MM
Usually ships in 7-10 business days
92015B92210-1204

(replaces part #
92015-1808)

NUT,LOCK,10MM
10+ In-Stock
9202292022-1829WASHER,10.2X16X1
10+ In-Stock
9203392033-1218RING-SNAP,30MM
Usually ships in 7-10 business days
92033A92033-1274RING-SNAP,55MM
10+ In-Stock
9204592045-1222BEARING-BALL,DAC3055C
Usually ships in 7-10 business days
9204992049-1321SEAL-OIL
Usually ships in 7-10 business days
92049A92049-1322SEAL-OIL
Usually ships in 7-10 business days
9209292092-1065BUSHING-RUBBER
10+ In-Stock
9215092150-1215BOLT,FLANGED,10X42
Not Shipping
92150A92150-1226BOLT
Not Shipping

Get additional RM Cash on OEM purchases!

Select parts to add, then click

TO VIEW Kawasaki OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE
