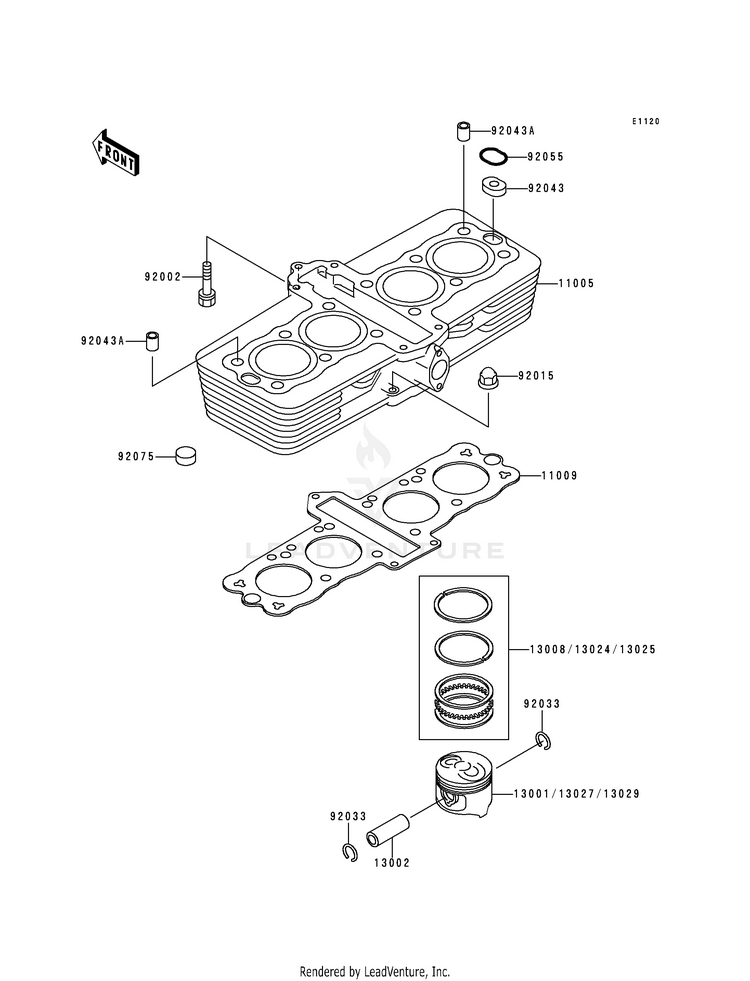

1990 Kawasaki ZR550 Zephyr Cylinder/Piston OEM Parts Diagram

Submodel ZR550-B1 Zephyr (1990)

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11005	11005-1630	CYLINDER-ENGINE	Usually ships in 7-10 business days
11009	11061-1512 (replaces part # 11009-1932)	GASKET,CYLINDER BASE	Usually ships in 7-10 business days
13001	13001-1121	PISTON-ENGINE,STD	Usually ships in 7-10 business days
13002	13002-1012	PIN-PISTON	Usually ships in 7-10 business days
13008	13008-1009	RING-SET-PISTON,STD	Usually ships in 7-10 business days
13024	13024-1010	RING-SET-PISTON-LL	Usually ships in 7-10 business days
13025	13025-1010	RING-SET-PISTON-L	Usually ships in 7-10 business days
13027	13027-1053	PISTON-ENGINE-LL	Usually ships in 7-10 business days
13029	13029-1055	PISTON-ENGINE-L	Usually ships in 7-10 business days
92002	92002-1104	BOLT,6X28	Usually ships in 7-10 business days
92015	92210-0003 (replaces part # 92015-1170)	NUT,CAP,6MM	10+ In-Stock
92033	92033-0005 (replaces part # 92033-1050)	RING-SNAP	10+ In-Stock
92043	92043-1546 (replaces part # 92043-1210)	PIN,OIL LINE	Usually ships in 7-10 business days
92043A	92043-1265	PIN,9.2X12X14	Usually ships in 7-10 business days
92055	92055-1147	RING-O	Usually ships in 7-10 business days
