1991 Kawasaki BAYOU 300 4x4 Clutch OEM Parts Diagram

Submodel KLF300-C3 Bayou 300 4X4 (1991)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

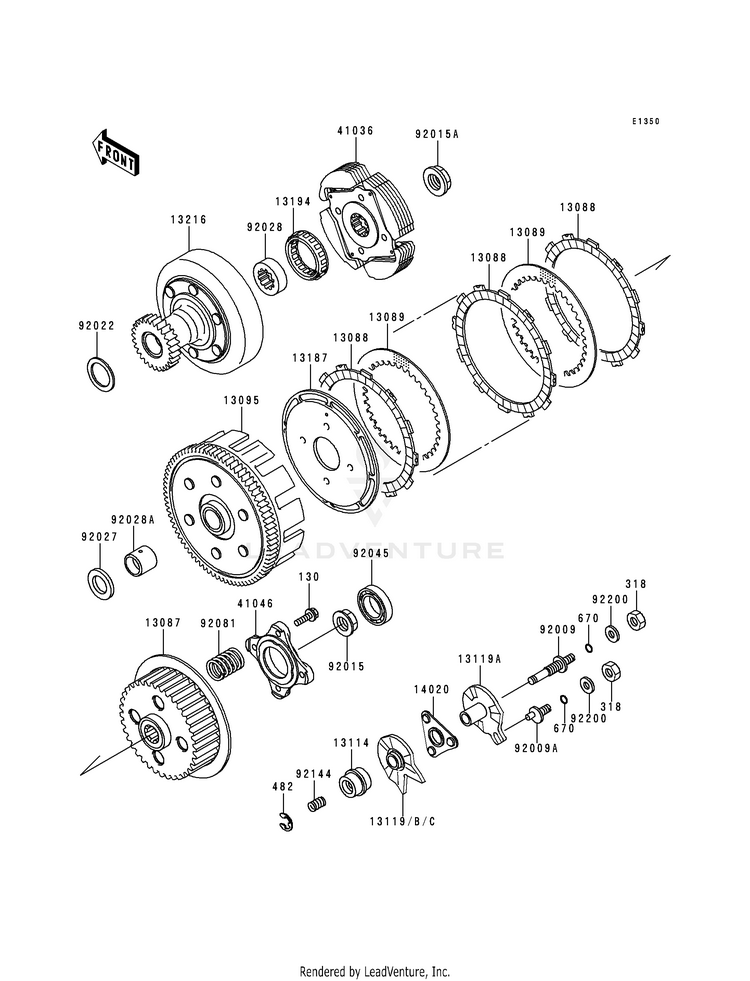

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130CA0620

(replaces part #
130P0620)

BOLT-FLANGED,6X20
10+ In-Stock
1308713087-1065HUB-CLUTCH
Usually ships in 7-10 business days
1308813088-1091

(replaces part #
13088-041)

PLATE-FRICTION
10+ In-Stock
1308913089-1005PLATE-CLUTCH,T=2.0
10+ In-Stock
1309513095-1364

(replaces part #
13095-1133)

HOUSING-COMP-CLUTCH
Usually ships in 7-10 business days
1311413114-1060PUSHER-CLUTCH
Usually ships in 7-10 business days
1311913119-1065CAM-RELEASE | ( - LF300AE075494)
Usually ships in 7-10 business days
13119A13119-1067CAM-RELEASE
Usually ships in 7-10 business days
13119C13119-1070CAM-RELEASE | ( LF300AE075495 - )
Usually ships in 7-10 business days
1318713187-1081PLATE-CLUTCH OPERATIN
Usually ships in 7-10 business days
1319413194-1055CLUTCH-ONEWAY
Usually ships in 7-10 business days
1321613216-1073GEAR-COMP,CLUTCH,FR
Not Shipping
1402014020-1092RETAINER,CLUTCH RELEA
Usually ships in 7-10 business days
318318AA0800

(replaces part #
318B0800)

NUT-HEX-SMALL,8MM
9 In-Stock
4103641036-1286

(replaces part #
41036-1122)

HUB-ASSY,CLUTCH,FR
Usually ships in 7-10 business days
4104641046-1063HOUSING-BEARING
Usually ships in 7-10 business days
482482J7000CIRCLIP 7MM
Usually ships in 7-10 business days
670670B1508O RING,8MM
10+ In-Stock
9200992009-1525SCREW
Usually ships in 7-10 business days
92009A92009-1526SCREW
Usually ships in 7-10 business days
9201592015-1465NUT,16MM
4 In-Stock
92015A92015-1512NUT,18MM
Usually ships in 7-10 business days
9202292022-1989WASHER,27.3X38X0.8
Usually ships in 7-10 business days
9202792027-1888COLLAR,20.5X34X4
Usually ships in 7-10 business days
9202892028-1370BUSHING
Usually ships in 7-10 business days
92028A92028-1371BUSHING,CLUTCH
Usually ships in 7-10 business days
9204592045-036BEARING-BALL,#6905
10+ In-Stock
9208192081-1848SPRING,CLUTCH
10+ In-Stock
9214492144-1272SPRING
Usually ships in 7-10 business days
9220092200-1213WASHER,8.5X18X2.3
6 In-Stock
