1991 Kawasaki KX80 Big Wheel Front Hub OEM Parts Diagram

Submodel KX80-T1 Big Wheel (1991)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

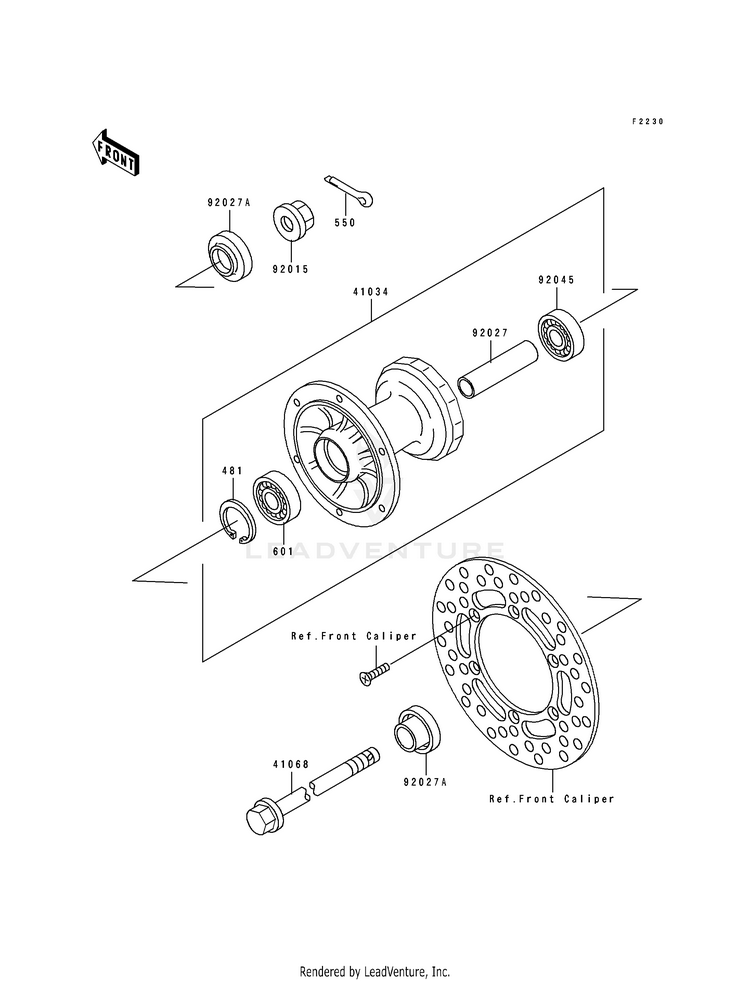

FRONT HUB

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
4103441034-1166DRUM-ASSY,FRONT BRAKE
Usually ships in 7-10 business days
4106841068-1301AXLE,FR
Usually ships in 7-10 business days
481481J3700CIRCLIP-TYPE-C,37MM
6 In-Stock
550550AA2520

(replaces part #
550D2520)

PIN-COTTER,2.5X20
10+ In-Stock
601601B6301UUBEARING-BALL,#6201UUC3
4 In-Stock
9201592015-1433NUT,LOCK,FLANGED,12MM
10+ In-Stock
9202792027-1925COLLAR,L=81
Usually ships in 7-10 business days
92027A92027-1926COLLAR,L=6
Not Shipping
9204592045-1062BEARING-BALL,TMB201LLUC3/2A
6 In-Stock
