1991 Kawasaki Ninja ZX-11C Cylinder Head OEM Parts Diagram

Submodel ZX1100-C2 Ninja ZX-11 (1991)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

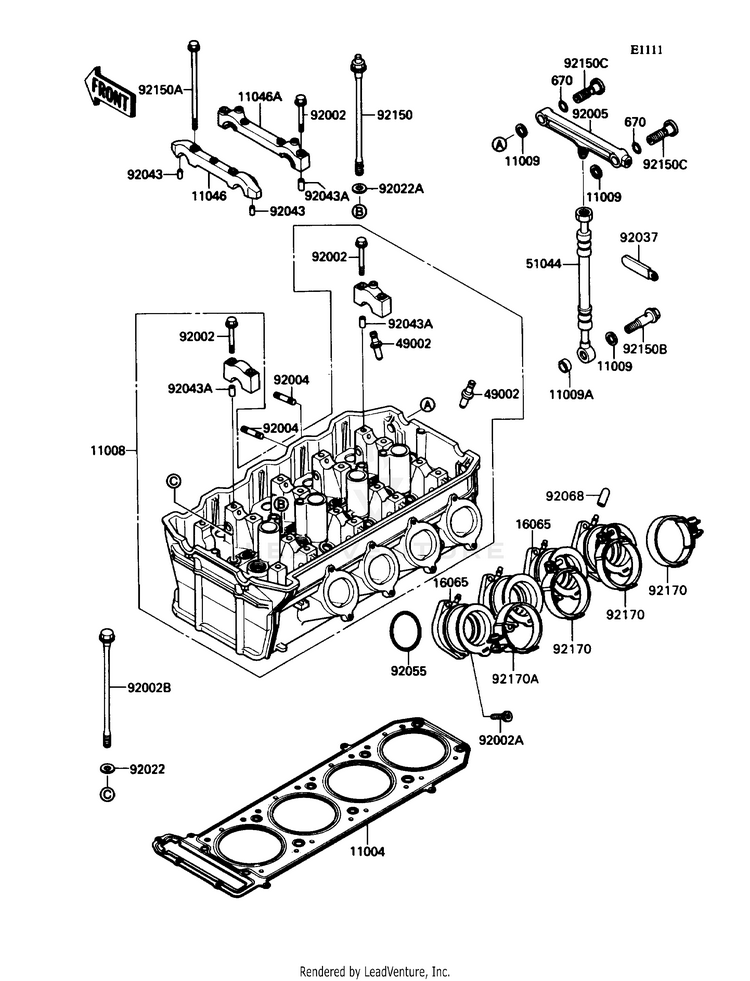

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100411004-1248

(replaces part #
11004-1201)

GASKET-HEAD
Usually ships in 7-10 business days
1100811008-1281

(replaces part #
11008-1233)

HEAD-COMP-CYLINDER
Usually ships in 7-10 business days
1100911009-1461GASKET,14X19.5X1.4
8 In-Stock
11009A11009-1726GASKET,14X20X10
Usually ships in 7-10 business days
1104611046-1150BRACKET,CAMSHAFT,#9
Usually ships in 7-10 business days
11046A11046-1151BRACKET,CAMSHAFT,#10
Usually ships in 7-10 business days
1606516065-1210HOLDER-CARBURETOR
Usually ships in 7-10 business days
4900249002-1097GUIDE-VALVE
10+ In-Stock
5104451044-1221

(replaces part #
51044-1094)

TUBE-ASSY
Usually ships in 7-10 business days
670670B2015O RING,15MM
10+ In-Stock
9200292002-1756BOLT,6X40
Usually ships in 7-10 business days
92002A92002-1778BOLT,SOCKET,6X16
10+ In-Stock
92002B92002-1943BOLT,10X164
Usually ships in 7-10 business days
9200492004-1181STUD,8X22
Usually ships in 7-10 business days
9200592005-1168FITTING
Usually ships in 7-10 business days
9202292022-1591WASHER,10.5X20X1.6
Usually ships in 7-10 business days
92022A92022-1720WASHER,11.5X20.5X1.6
10+ In-Stock
9203792037-1997CLAMP
Usually ships in 7-10 business days
9204392043-1262PIN,4.2X6X12
9 In-Stock
92043A92043-1263PIN,6.2X8X14
10+ In-Stock
9205592055-1401RING-O,43.7X1.9
5 In-Stock
9206892068-006PLUG,12X25
10+ In-Stock
9215092150-1075BOLT,11X164
Usually ships in 7-10 business days
92150A92150-1076BOLT,6X148
Usually ships in 7-10 business days
92150B92150-1077BOLT,BANJO,12X40.5
Usually ships in 7-10 business days
92150C92150-1078BOLT
Usually ships in 7-10 business days
9217092170-1160CLAMP
Usually ships in 7-10 business days
92170A92170-1161CLAMP
Usually ships in 7-10 business days
