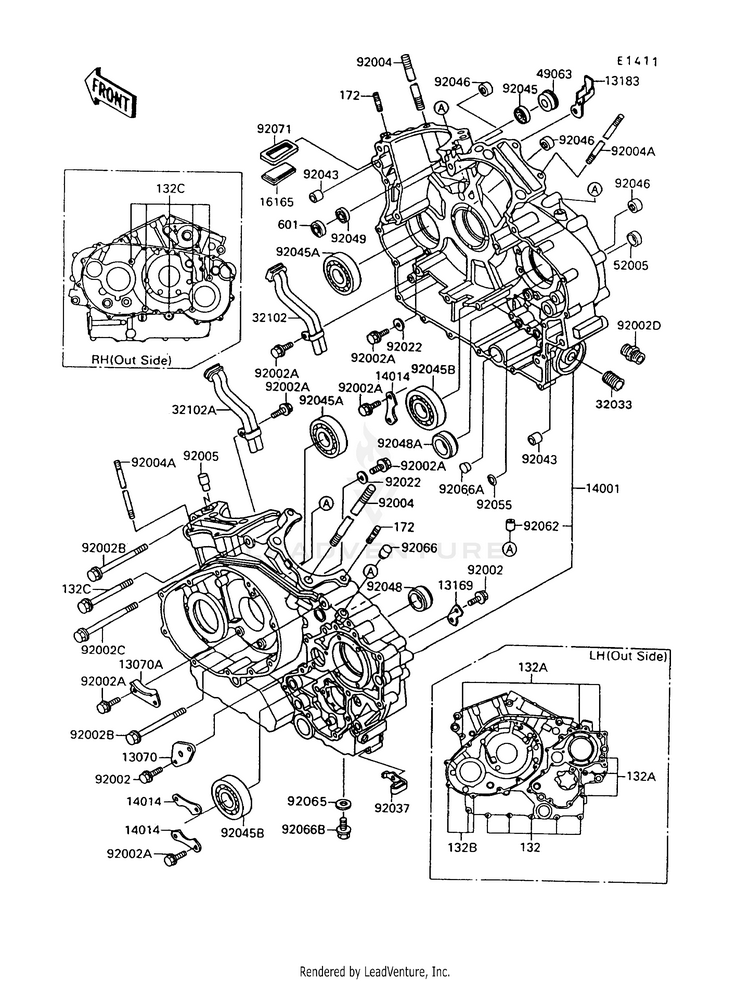

1992 Kawasaki Vulcan 88 VN1500 Crankcase OEM Parts Diagram

Submodel VN1500-A6 Vulcan 88 (1992)

Shop Aftermarket Parts

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1307013070-1167GUIDE,PUSH ROD
Usually ships in 7-10 business days
13070A13070-1168GUIDE,CAM CHAIN
Usually ships in 7-10 business days
1316913169-014PLATE,GEAR CHANGE DRUM
Usually ships in 7-10 business days
1318313183-1145PLATE
Usually ships in 7-10 business days
13292002-1657

(replaces part #
132E0640)

BOLT,6X40
Usually ships in 7-10 business days
132A132E0670BOLT-FLANGED-SMALL
Usually ships in 7-10 business days
132B132E0680BOLT-FLANGED-SMALL
Usually ships in 7-10 business days
132C132E0890BOLT-FLANGED-SMALL
Usually ships in 7-10 business days
1400114001-5232SET-CRANKCASE
Usually ships in 7-10 business days
1401414014-1084PLATE-POSITION
Usually ships in 7-10 business days
1616516165-1058SEPARATOR
Usually ships in 7-10 business days
172172BA0825

(replaces part #
172G0825)

BOLT-STUD,8X25
10+ In-Stock
3210232102-1407PIPE
Usually ships in 7-10 business days
32102A32153-1263

(replaces part #
32102-1708)

PIPE
Usually ships in 7-10 business days
4906349063-1057

(replaces part #
49063-1052)

SEAL-MECHANICAL
3 In-Stock
5200552005-1009GAUGE,OIL LEVEL
10+ In-Stock
601601A6001BEARING-BALL
10+ In-Stock
9200292002-1439BOLT,6X16
Usually ships in 7-10 business days
92002A92150-1868

(replaces part #
92002-1563)

BOLT,6X12
Usually ships in 7-10 business days
92002B92002-1897BOLT,10X105
Usually ships in 7-10 business days
92002C92002-1898BOLT,10X115
Usually ships in 7-10 business days
92002D92002-1899BOLT,OIL FILTER
Usually ships in 7-10 business days
9200492004-0017

(replaces part #
92004-1172)

STUD,12X250.12X24
Usually ships in 7-10 business days
92004A92004-1174STUD,8X231
Usually ships in 7-10 business days
9200592005-1155FITTING
Usually ships in 7-10 business days
9202292022-1517WASHER,6X19.5X2
Usually ships in 7-10 business days
9203792037-1925CLAMP
Usually ships in 7-10 business days
9204392043-1266PIN,11X14X12.3
10+ In-Stock
9204592045-1151BEARING-BALL,6001JRXLLU/5K
1 In-Stock
92045A92045-1189BEARING-BALL,63/28
Usually ships in 7-10 business days
92045B92045-1190BEARING-BALL,6306SH2
3 In-Stock
9204692046-1163BEARING-NEEDLE,HK1212
Usually ships in 7-10 business days
9204892048-1069RACE
Usually ships in 7-10 business days
92048A92048-1070RACE
Usually ships in 7-10 business days
9204992049-1228SEAL-OIL,SC 12X22X5
10+ In-Stock
9205592055-1373RING-O,13.2X2.4
10+ In-Stock
9206292062-1078

(replaces part #
92062-1066)

NOZZLE,6X8,GREEN
3 In-Stock
9206592065-097GASKET,12X22X2
10+ In-Stock
9206692066-1012PLUG,OIL LINE,7.2X8
7 In-Stock
92066A92066-1110PLUG
Usually ships in 7-10 business days
92066B92066-1174PLUG,OIL DRAIN,12X15
10+ In-Stock
AFTERMARKET ALTERNATIVE
$11.99$9.9910+ In-Stock
9207192071-1269

(replaces part #
92071-1153)

GROMMET,SEPARATOR
Usually ships in 7-10 business days
