1992 Kawasaki Vulcan 88 VN1500 Ignition System OEM Parts Diagram

Submodel VN1500-A6 Vulcan 88 (1992)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

IGNITION SYSTEM

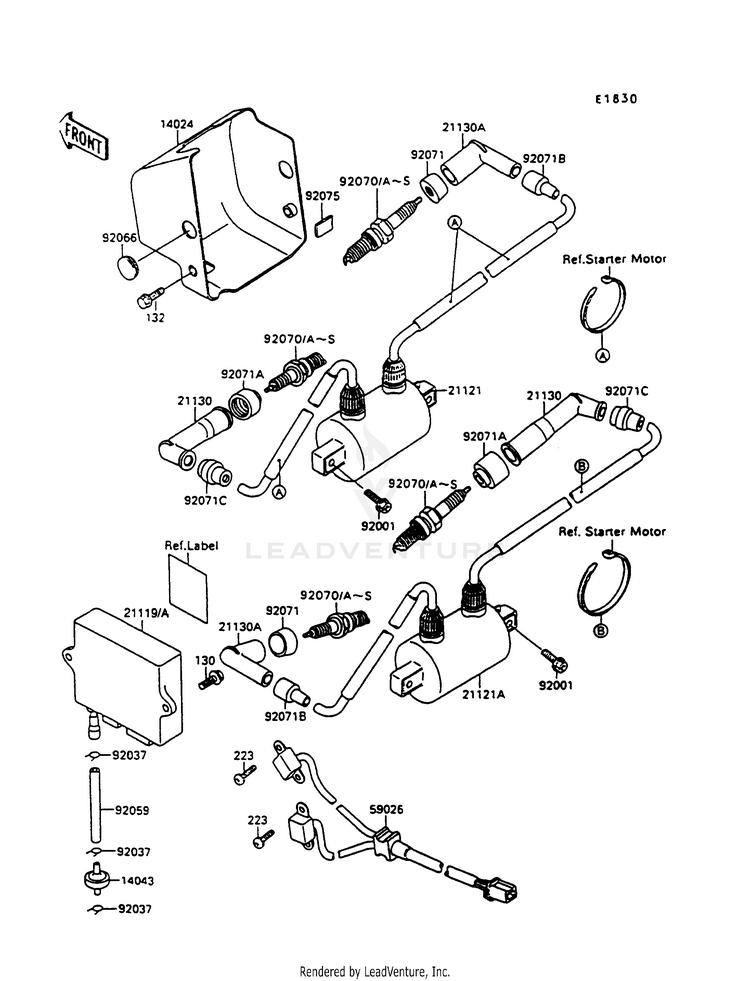

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130BA0614

(replaces part #
130G0614)

BOLT-FLANGED,6X14
10+ In-Stock
132132BB0616

(replaces part #
132J0616)

BOLT-FLANGED-SMALL,6X16
10+ In-Stock
1402414024-1527COVER,IGNITION COIL
Usually ships in 7-10 business days
1404314043-1060FILTER
Usually ships in 7-10 business days
2111921119-1217IGNITER
Usually ships in 7-10 business days
2112121121-1154COIL-IGNITION,FR
Not Shipping
21121A21121-1155COIL-IGNITION,RR
Usually ships in 7-10 business days
2113021130-1010

(replaces part #
21130-1002)

CAP-SPARK PLUG
3 In-Stock
21130A21130-1003CAP-SPARK PLUG
10+ In-Stock
223223AA0516

(replaces part #
223B0516)

SCREW-PAN-WS-CROS,5X16
1 In-Stock
5902659026-1085COIL-PULSING
Usually ships in 7-10 business days
9200192001-1091BOLT,6X20
8 In-Stock
9203792037-1482CLAMP,TUBE
Usually ships in 7-10 business days
9205992059-1687TUBE,3X7X140
Usually ships in 7-10 business days
9206692066-1286PLUG
Usually ships in 7-10 business days
92070A92070-1065PLUG-SPARK,DPR8EA-9(NGK) | [CN] (OPTION)
10+ In-Stock
92070CDP8EA9

(replaces part #
92070-1066)

SPARK PLUG DP8EA-9 | [CA,US] (OPTION)
10+ In-Stock
92070JDP7EA9

(replaces part #
92070-1124)

SPARK PLUG DP7EA-9 | [CA,US]
10+ In-Stock
92070KDPR7EA9

(replaces part #
92070-1125)

SPARK PLUG DPR7EA-9 | [CN]
10+ In-Stock
92070MDP6EA9

(replaces part #
92070-1136)

SPARK PLUG DP6EA-9 | [CA,US] (OPTION)
Usually ships in 7-10 business days
92070QDPR6EA9

(replaces part #
92070-1138)

SPARK PLUG DPR6EA9 | [CN] (OPTION)
10+ In-Stock
9207192071-1015GROMMET,SPARK PLUG CAP
7 In-Stock
92071A92071-1124GROMMET,PLUG CAP
7 In-Stock
92071B92071-1154GROMMET,HIGH TENSION
Usually ships in 7-10 business days
92071C92071-1155GROMMET,HIGH TENSION
Usually ships in 7-10 business days
9207592075-1982DAMPER
Usually ships in 7-10 business days
