1992 Kawasaki ZR1100 Zephyr Crankcase OEM Parts Diagram

Submodel ZR1100-A1 ZR1100 Zephyr (1992)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

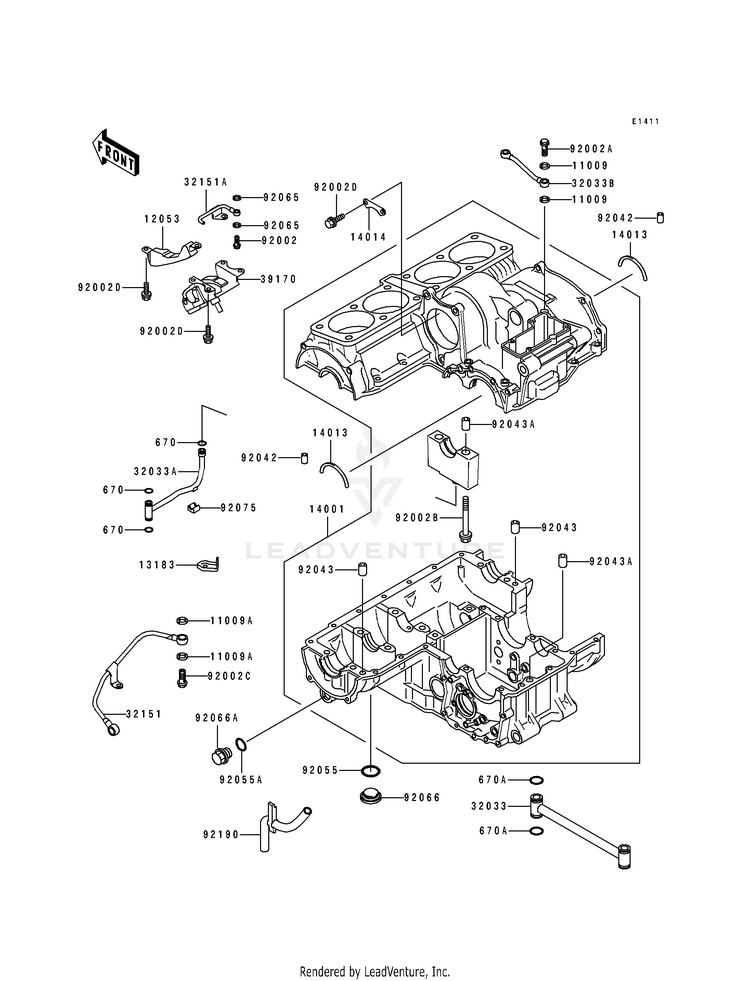

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100911009-1344GASKET,8.2X14X1.0
10+ In-Stock
11009A11009-1376GASKET,12.5X18X1.5
3 In-Stock
1205312053-1301GUIDE-CHAIN
Usually ships in 7-10 business days
1318313183-1863PLATE
Usually ships in 7-10 business days
1400114001-1084SET-CRANKCASE
Usually ships in 7-10 business days
1401314013-1054RING-POSITION,T=1.98
Usually ships in 7-10 business days
1401414014-1075PLATE-POSITION
Usually ships in 7-10 business days
3203332033-1928PIPE,MAIN GALLERY
Usually ships in 7-10 business days
32033A32033-1930PIPE
Usually ships in 7-10 business days
32033B32033-1931PIPE
Usually ships in 7-10 business days
3215132151-1111PIPE
Usually ships in 7-10 business days
32151A32151-1229PIPE
Usually ships in 7-10 business days
3917039170-1063TENSIONER-COMP
Usually ships in 7-10 business days
670670D1509O RING,9MM
10+ In-Stock
670A670D2016O RING,16MM
10+ In-Stock
9200292002-1473BOLT,BANJO,6X19
Usually ships in 7-10 business days
92002A92002-1618BOLT,BANJO,8X20
1 In-Stock
92002B92002-1651BOLT,10X95
Usually ships in 7-10 business days
92002C92002-1655BOLT,BANJO,12X27
Usually ships in 7-10 business days
92002D92002-1656BOLT,6X14
Usually ships in 7-10 business days
9204292043-1690

(replaces part #
92042-016)

PIN,6X16
Usually ships in 7-10 business days
9204392043-1037PIN,DOWEL,10X14
10+ In-Stock
92043A92043-1279PIN,11.5X14X14
4 In-Stock
9205592055-1136RING-O,25.7X2.4
10+ In-Stock
92055A92055-1146RING-O,20X2
10+ In-Stock
9206592065-096GASKET
8 In-Stock
9206692066-1232PLUG,OIL RETURN
Usually ships in 7-10 business days
92066A92066-1394PLUG
3 In-Stock
9207592075-1785DAMPER,PIPE
Usually ships in 7-10 business days
9219092190-1275TUBE,BREATHER
Usually ships in 7-10 business days
