1992 Kawasaki ZR1100 Zephyr Generator OEM Parts Diagram

Submodel ZR1100-A1 ZR1100 Zephyr (1992)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

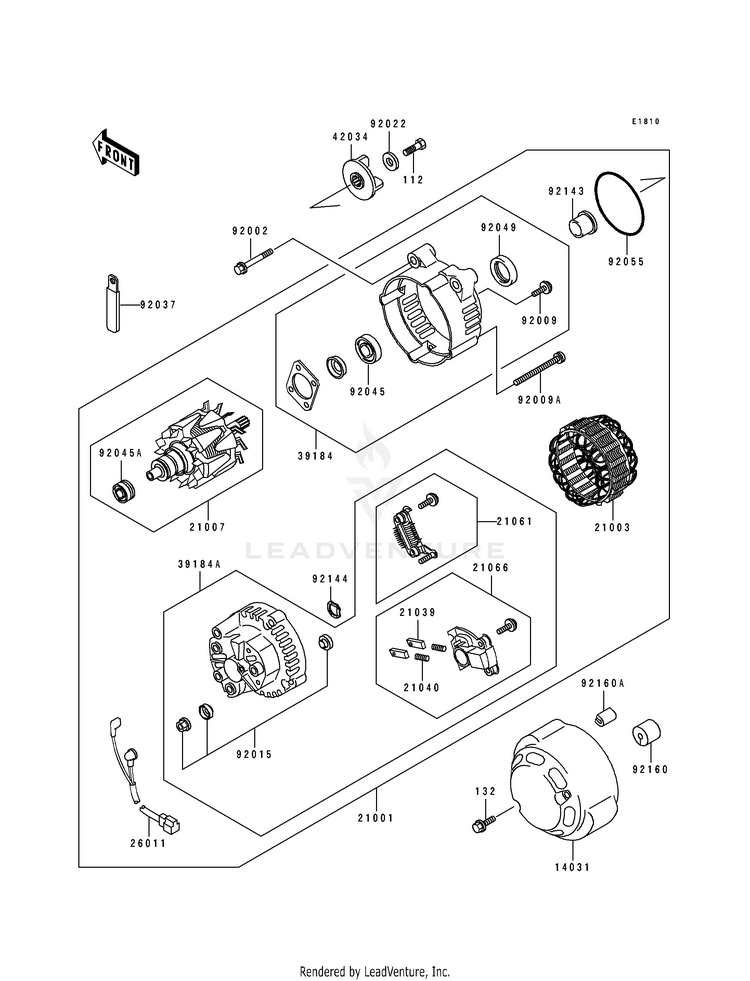

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
112112BA0616

(replaces part #
112G0616)

BOLT-UPSET,6X16
10+ In-Stock
132132E0625BOLT-FLANGED-SMALL
Usually ships in 7-10 business days
1403114031-1311COVER-GENERATOR
Usually ships in 7-10 business days
2100121001-1123GENERATOR
Usually ships in 7-10 business days
2100321003-1162STATOR,GENERATOR
Usually ships in 7-10 business days
2100721007-1152ROTOR,GENERATOR
Usually ships in 7-10 business days
2103921039-1058BRUSH,CARBON
Usually ships in 7-10 business days
2104021040-1054SPRING-BRUSH
Usually ships in 7-10 business days
2106121061-1056RECTIFIER
Usually ships in 7-10 business days
2106621066-1062REGULATOR-VOLTAGE
Usually ships in 7-10 business days
2601126011-1537WIRE-LEAD,GENERATOR
Usually ships in 7-10 business days
3918439184-1063BRACKET-ASSY,FR
Usually ships in 7-10 business days
39184A39184-1064BRACKET-ASSY,RR
Usually ships in 7-10 business days
4203442034-1084COUPLING
Not Shipping
9200292002-1658BOLT,8X45
Usually ships in 7-10 business days
9200992009-1451SCREW
Usually ships in 7-10 business days
92009A92009-1452SCREW
Usually ships in 7-10 business days
9201592015-1624NUT
Usually ships in 7-10 business days
9202292022-1517WASHER,6X19.5X2
Usually ships in 7-10 business days
9203792037-1539CLAMP,L=45
8 In-Stock
9204592045-1181BEARING-BALL
Usually ships in 7-10 business days
92045A92045-1279BEARING-BALL
Usually ships in 7-10 business days
9204992049-1274SEAL-OIL
Usually ships in 7-10 business days
9205592055-1365RING-O
Usually ships in 7-10 business days
9214392143-1054COLLAR
Usually ships in 7-10 business days
9214492144-1067SPRING,WASHER
Usually ships in 7-10 business days
9216092160-1013DAMPER,6.3X22X20
Usually ships in 7-10 business days
92160A92160-1334DAMPER
Usually ships in 7-10 business days
