1993 Kawasaki Concours ZG1000 Cylinder Head OEM Parts Diagram

Submodel ZG1000-A8 Concours (1993)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

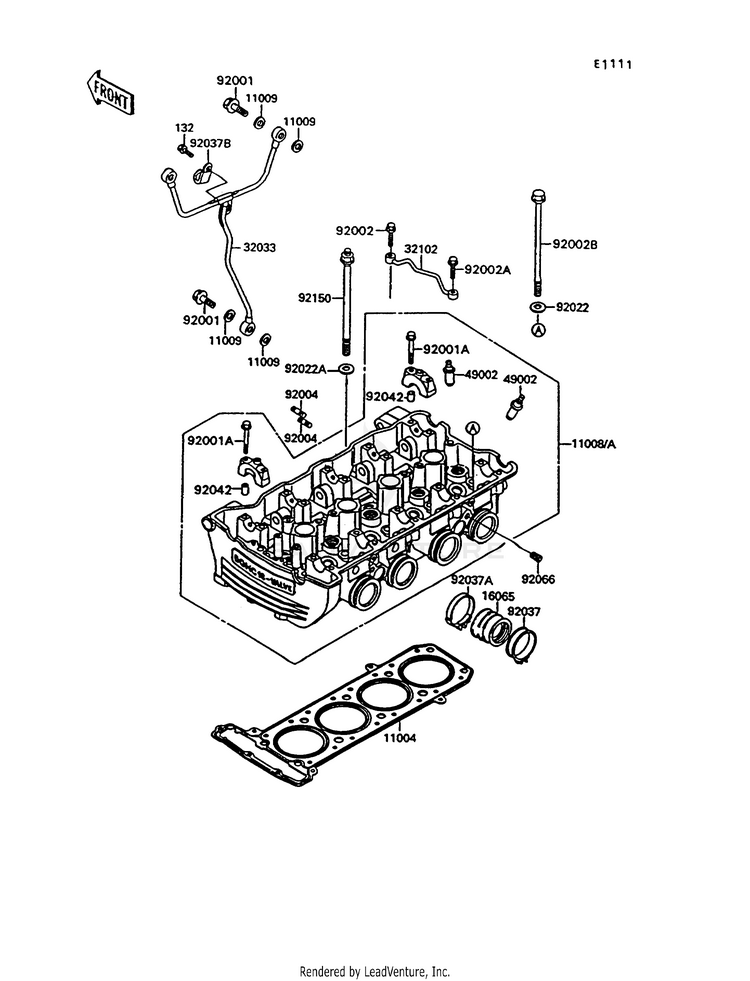

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100411004-1148GASKET-HEAD
Usually ships in 7-10 business days
1100811008-1177HEAD-COMP-CYLINDER | [CA,US]
Usually ships in 7-10 business days
11008A11008-1178HEAD-COMP-CYLINDER | [CN]
Not Shipping
1100911009-1376GASKET,12.5X18X1.5
3 In-Stock
132132BB0610

(replaces part #
132J0610)

BOLT-FLANGED-SMALL,6X10
10+ In-Stock
1606516065-1112HOLDER-CARBURETOR
Usually ships in 7-10 business days
3203332033-1850PIPE,OIL PAN-HEAD
Usually ships in 7-10 business days
3210232102-1423PIPE,CYLINDER HEAD
Usually ships in 7-10 business days
4900249002-1052GUIDE-VALVE
9 In-Stock
9200192153-1976

(replaces part #
92001-1871)

BOLT,BANJO 12X27
Usually ships in 7-10 business days
92001A92001-1872BOLT,6X46
10+ In-Stock
9200292002-1911BOLT,6X30
Usually ships in 7-10 business days
92002A92002-1912BOLT,6X25
Usually ships in 7-10 business days
92002B92002-1943BOLT,10X164
Usually ships in 7-10 business days
9200492004-1110STUD,8X20
10+ In-Stock
9202292022-1591WASHER,10.5X20X1.6
Usually ships in 7-10 business days
92022A92022-1720WASHER,11.5X20.5X1.6
10+ In-Stock
9203792037-1304CLAMP,ID=53,BLACK
3 In-Stock
92037A92037-1523CLAMP
10+ In-Stock
92037B92037-1539CLAMP,L=45 | [CN]
8 In-Stock
9204292042-007PIN,DOWEL,6.3X8X14
10+ In-Stock
9206692066-1201PLUG
Usually ships in 7-10 business days
9215092150-1075BOLT,11X164
Usually ships in 7-10 business days
