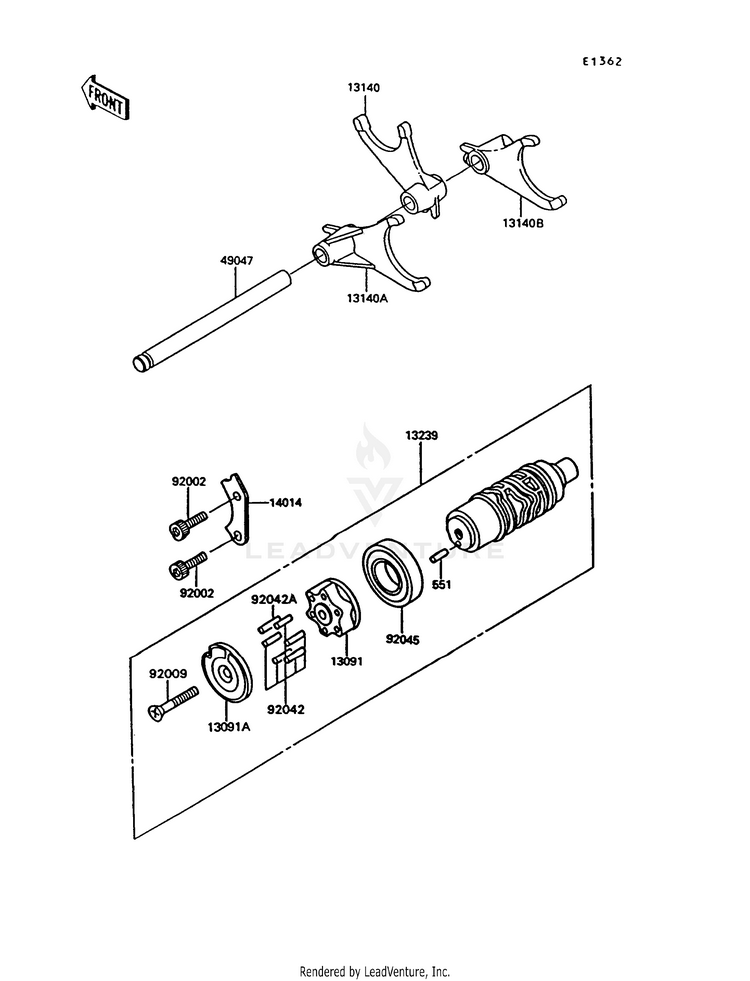

1993 Kawasaki Concours ZG1000 Gear Change Drum/Shift Fork(S) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
13091	13091-1275	HOLDER,CHANGE DRUM	Usually ships in 7-10 business days
13091A	13091-1334	HOLDER,NEUTRAL	Usually ships in 7-10 business days
13140	13140-1196	FORK-SHIFT	Usually ships in 7-10 business days
13140A	13140-1197	FORK-SHIFT	Usually ships in 7-10 business days
13140B	13140-1209	FORK-SHIFT	Usually ships in 7-10 business days
13239	13239-1122	DRUM-ASSY-CHANGE	Usually ships in 7-10 business days
14014	14014-1059	PLATE-POSITION,CHANGE DRUM	Usually ships in 7-10 business days
49047	49047-1055	ROD-SHIFT	Usually ships in 7-10 business days
551	551A0408	PIN-DOWEL,4X8	8 In-Stock
92002	92002-1778	BOLT,SOCKET,6X16	10+ In-Stock
92009	92009-1599	SCREW	Usually ships in 7-10 business days
92042	92042-014	PIN,DOWEL,4X15.8	10+ In-Stock
92042A	92042-020	PIN,DOWEL,4X17.8	Usually ships in 7-10 business days
92045	92045-1045	BEARING-BALL,16005	Usually ships in 7-10 business days
