1993 Kawasaki Concours ZG1000 Ignition System OEM Parts Diagram

Submodel ZG1000-A8 Concours (1993)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

IGNITION SYSTEM

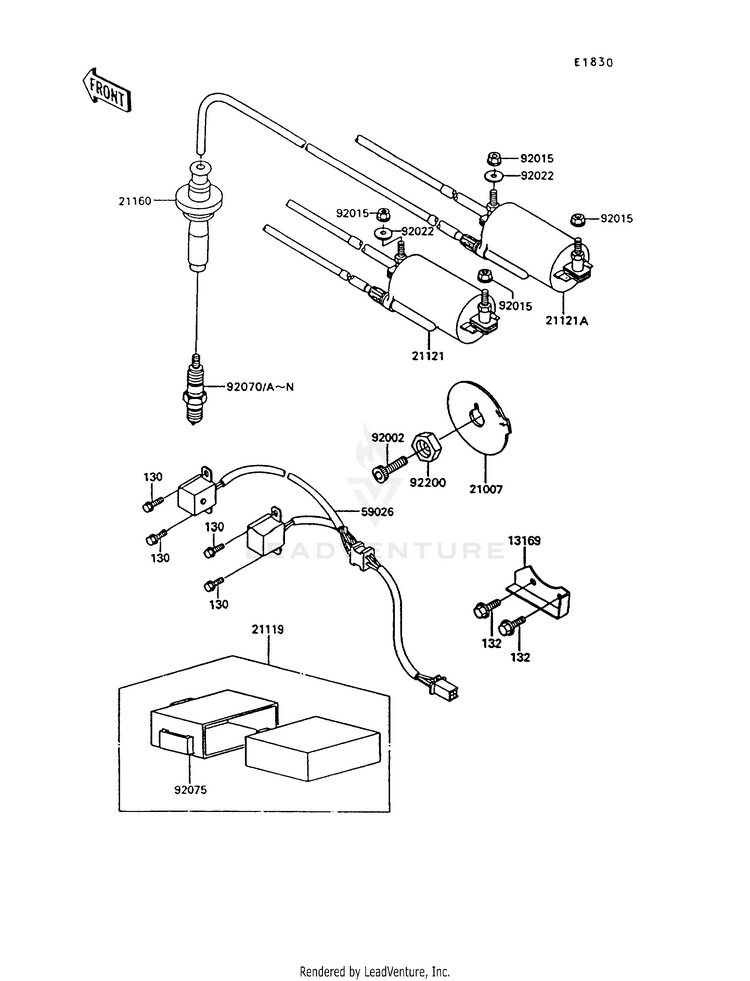

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130BA0512

(replaces part #
130G0512)

BOLT-FLANGED,5X12
10+ In-Stock
1316913169-1748PLATE,CHAIN GUIDE
Usually ships in 7-10 business days
132132BA0612

(replaces part #
132G0612)

BOLT-FLANGED-SMALL,6X12
10+ In-Stock
2100721007-1109ROTOR,PULSING COIL
Usually ships in 7-10 business days
2111921119-1110IGNITER
Usually ships in 7-10 business days
2112121121-1110COIL-IGNITION,#1&#4
Usually ships in 7-10 business days
21121A21121-1111COIL-IGNITION,#2&#3
Usually ships in 7-10 business days
2116021160-1065CAP-ASSY-PLUG
Usually ships in 7-10 business days
5902659026-1061COIL-PULSING
Usually ships in 7-10 business days
9200292002-1442BOLT,SOCKET,8X25
6 In-Stock
9201592015-1367

(replaces part #
92015-1193)

NUT,FLANGED,6MM
10+ In-Stock
9202292022-024WASHER,7X16X1.2
7 In-Stock
92070B92070-1011PLUG-SPARK,D8EA(NGK) | [CA,US]
10+ In-Stock
92070DD7EA

(replaces part #
92070-1013)

SPARK PLUG D7EA | [CA,US]
9 In-Stock
92070EDR8ES

(replaces part #
92070-1019)

SPARK PLUG DR8ES | [CN]
Not Shipping
92070GD9EA

(replaces part #
92070-1034)

SPARK PLUG D9EA | [CA,US]
6 In-Stock
92070JDR8ESL

(replaces part #
92070-1116)

SPARK PLUG DR8ES-L | [CN]
9 In-Stock
92070LDR7ES

(replaces part #
92070-1165)

SPARK PLUG DR7ES | [CN]
10+ In-Stock
9207592075-1592DAMPER,IGNITER
Usually ships in 7-10 business days
9220092200-1173WASHER,ROTOR
Usually ships in 7-10 business days
