1993 Kawasaki Vulcan 88 VN1500 Front Master Cylinder OEM Parts Diagram

Submodel VN1500-A7 Vulcan 88 (1993)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

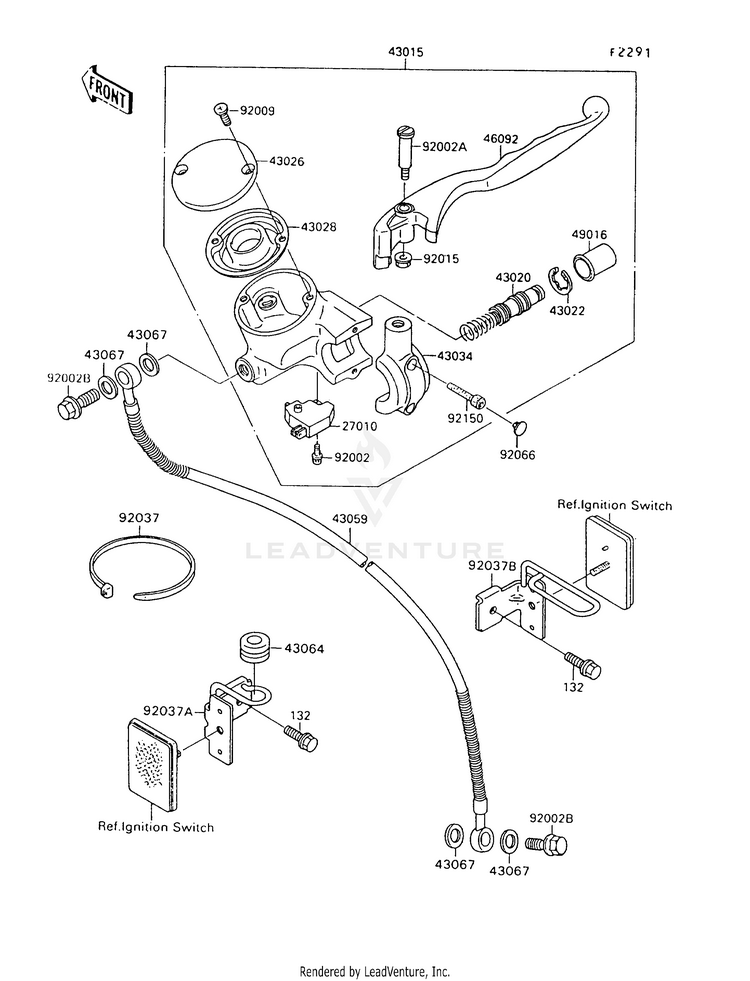

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
132132E0610BOLT-FLANGED-SMALL
Usually ships in 7-10 business days
2701027010-1170SWITCH,BRAKE
4 In-Stock
4301543015-0054

(replaces part #
43015-1511)

CYLINDER-ASSY-MASTER,
Usually ships in 7-10 business days
4302043020-1098PISTON-COMP-BRAKE
Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$29.80$28.3110+ In-Stock
4302243022-1010STOPPER-BRAKE,PISTON
8 In-Stock
4302643026-1078CAP-BRAKE
Usually ships in 7-10 business days
4302843028-1071DIAPHRAGM,MASTER CYLINDER
1 In-Stock
4303443034-1102HOLDER-BRAKE
Usually ships in 7-10 business days
4305943095-1076

(replaces part #
43059-1438)

HOSE-BRAKE,FR
Usually ships in 7-10 business days
4306443064-006GROMMET,HOSE CLAMP
4 In-Stock
4306749091-0001

(replaces part #
43067-001)

WASHER-SEAL,10.1X14.5X1.5
10+ In-Stock
4609246092-1172LEVER-GRIP,FRONT BRAK
Usually ships in 7-10 business days
4901649016-1044COVER-SEAL,MASTER CYLINDER
6 In-Stock
9200292002-1323BOLT,SCREW,4X12
5 In-Stock
92002A92002-1561BOLT,LEVER SET
1 In-Stock
92002B92153-0627

(replaces part #
92002-1888)

BOLT,OIL,L=23
10+ In-Stock
9200992009-1440SCREW
2 In-Stock
9201592015-1528NUT,FLANGED,6MM
10+ In-Stock
9203792037-1173CLAMP
8 In-Stock
92037A92037-1884CLAMP,HOSE
Usually ships in 7-10 business days
92037B92037-1885CLAMP,CABLE
Usually ships in 7-10 business days
9206692066-1301PLUG
Usually ships in 7-10 business days
9215092150-1025BOLT,SOCKET,6MM
2 In-Stock
