1993 Kawasaki ZR550 Zephyr Crankcase OEM Parts Diagram

Submodel ZR550-B4 Zephyr (1993)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

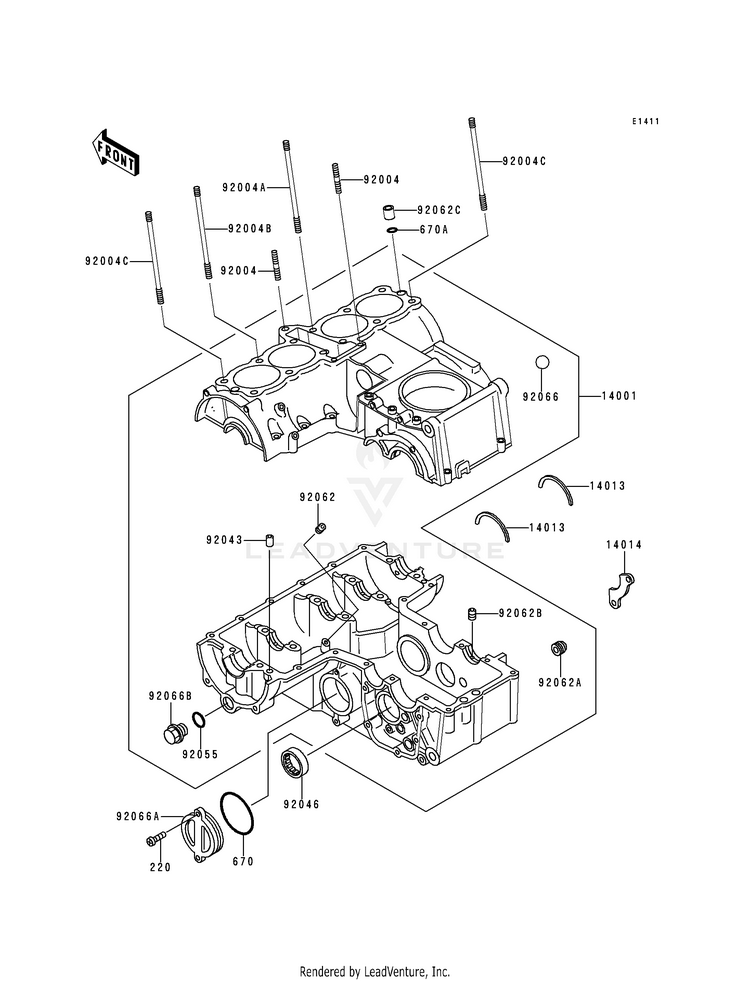

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1400114001-5270SET-CRANKCASE
Usually ships in 7-10 business days
1401314013-004RING-POSITION
Usually ships in 7-10 business days
1401414014-1006PLATE,POSITION
Usually ships in 7-10 business days
220220AA0620

(replaces part #
220B0620)

SCREW-PAN-CROS,6X20
10+ In-Stock
670670B30460 RING,46MM
3 In-Stock
670A670D2010O RING,10MM
10+ In-Stock
9200492004-059STUD
Usually ships in 7-10 business days
92004A92004-1226

(replaces part #
92004-1193)

STUD,8X146
Usually ships in 7-10 business days
92004B92004-1194STUD,8X108.5
Usually ships in 7-10 business days
92004C92004-1195STUD,8X128.5
Usually ships in 7-10 business days
9204392043-1264PIN,8.2X10X14
10+ In-Stock
9204692046-051BRG,NEDL,37BTM4312
Usually ships in 7-10 business days
9205592055-1146RING-O,20X2
10+ In-Stock
9206292062-1079

(replaces part #
92062-011)

NOZZLE,6X8,BLACK
5 In-Stock
92062A92062-014NOZZLE
Usually ships in 7-10 business days
92062B92062-1081

(replaces part #
92062-015)

NOZZLE,6X8,SILVER
Usually ships in 7-10 business days
92062C92062-016NOZZLE
Usually ships in 7-10 business days
9206692066-057PLUG,RUBBER BALL,6.7
Usually ships in 7-10 business days
92066A92066-1019PLUG,SECONDARY SHAFT
Usually ships in 7-10 business days
92066B92066-1096PLUG,MAIN GALLERY,18X9,BLACK
Usually ships in 7-10 business days
