1995 Kawasaki Concours ZG1000 Crankcase OEM Parts Diagram

Submodel ZG1000-A10 Concours (1995)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

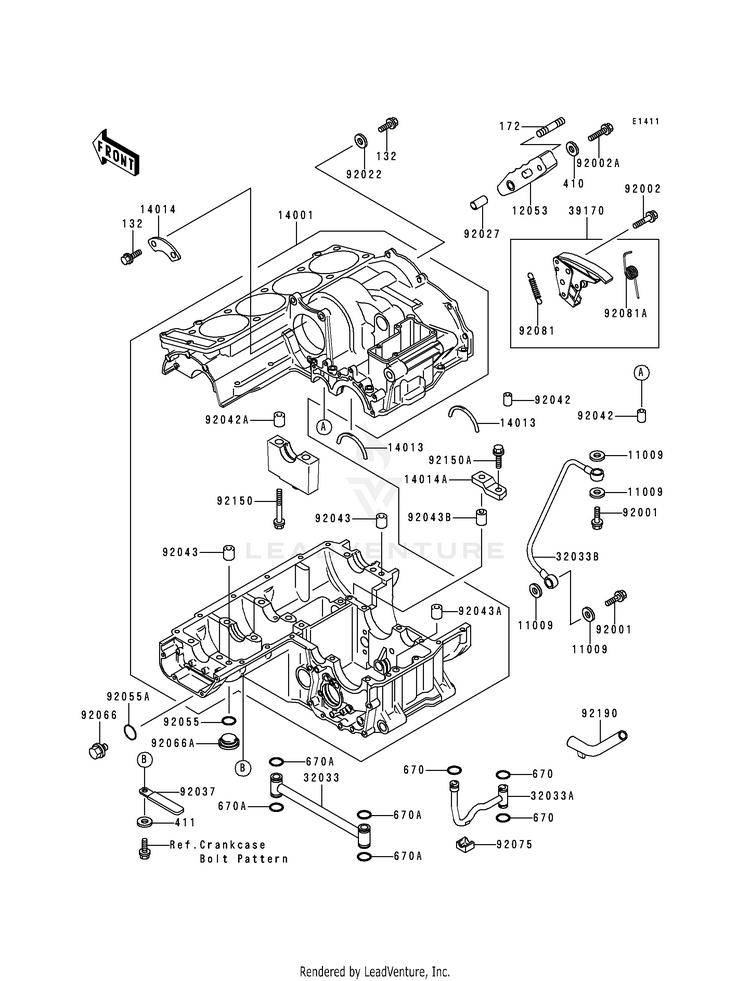

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100911009-1376GASKET,12.5X18X1.5
3 In-Stock
1205312053-1189GUIDE-CHAIN
Usually ships in 7-10 business days
132132BA0612

(replaces part #
132G0612)

BOLT-FLANGED-SMALL,6X12
10+ In-Stock
1400114001-1075SET-CRANKCASE
Usually ships in 7-10 business days
1401314013-1005RING-POSITION,T=1.98
Usually ships in 7-10 business days
1401414014-1056PLATE-POSITION
Usually ships in 7-10 business days
14014A14014-1067PLATE-POSITION,BALANCER PIN
Usually ships in 7-10 business days
172172G0616BOLT-STUD,6X16
Usually ships in 7-10 business days
3203332033-1201PIPE,MAIN GALLARY
Usually ships in 7-10 business days
32033A32033-1202PIPE
Usually ships in 7-10 business days
32033B32033-1961PIPE
Usually ships in 7-10 business days
3917039170-1055TENSIONER-COMP
Usually ships in 7-10 business days
410410AA0600

(replaces part #
410B0600)

WASHER-PLAIN-SMALL
10+ In-Stock
411411AB0600

(replaces part #
411F0600)

WASHER-PLAIN,6MM
7 In-Stock
670670D1509O RING,9MM
10+ In-Stock
670A670D2016O RING,16MM
10+ In-Stock
9200192153-1976

(replaces part #
92001-1871)

BOLT,BANJO 12X27
Usually ships in 7-10 business days
9200292002-1534BOLT,6X30
Usually ships in 7-10 business days
92002A92002-1609BOLT,6X25
Usually ships in 7-10 business days
9202292022-1517WASHER,6X19.5X2
Usually ships in 7-10 business days
9202792027-1079COLLAR,6.2X8.1X15
Usually ships in 7-10 business days
9203792037-1539CLAMP,L=45
8 In-Stock
9204292043-1690

(replaces part #
92042-016)

PIN,6X16
Usually ships in 7-10 business days
92042A92043-0963

(replaces part #
92042-031)

PIN,12X14
Usually ships in 7-10 business days
9204392043-1037PIN,DOWEL,10X14
10+ In-Stock
92043A92043-1279PIN,11.5X14X14
4 In-Stock
92043B92043-1281PIN,BALANCER
Usually ships in 7-10 business days
9205592055-1136RING-O,25.7X2.4
10+ In-Stock
92055A92055-1146RING-O,20X2
10+ In-Stock
9206692066-1096PLUG,MAIN GALLERY,18X9,BLACK
Usually ships in 7-10 business days
92066A92066-1161PLUG,25X8
Usually ships in 7-10 business days
9207592075-1785DAMPER,PIPE
Usually ships in 7-10 business days
9208192145-0669

(replaces part #
92081-1668)

SPRING
Usually ships in 7-10 business days
92081A92081-1971SPRING
Usually ships in 7-10 business days
9215092150-1364BOLT,9X90
Usually ships in 7-10 business days
92150A92150-1868BOLT,6X12
Usually ships in 7-10 business days
9219092190-1075TUBE
Usually ships in 7-10 business days
