1995 Kawasaki Concours ZG1000 Front Master Cylinder OEM Parts Diagram

Submodel ZG1000-A10 Concours (1995)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

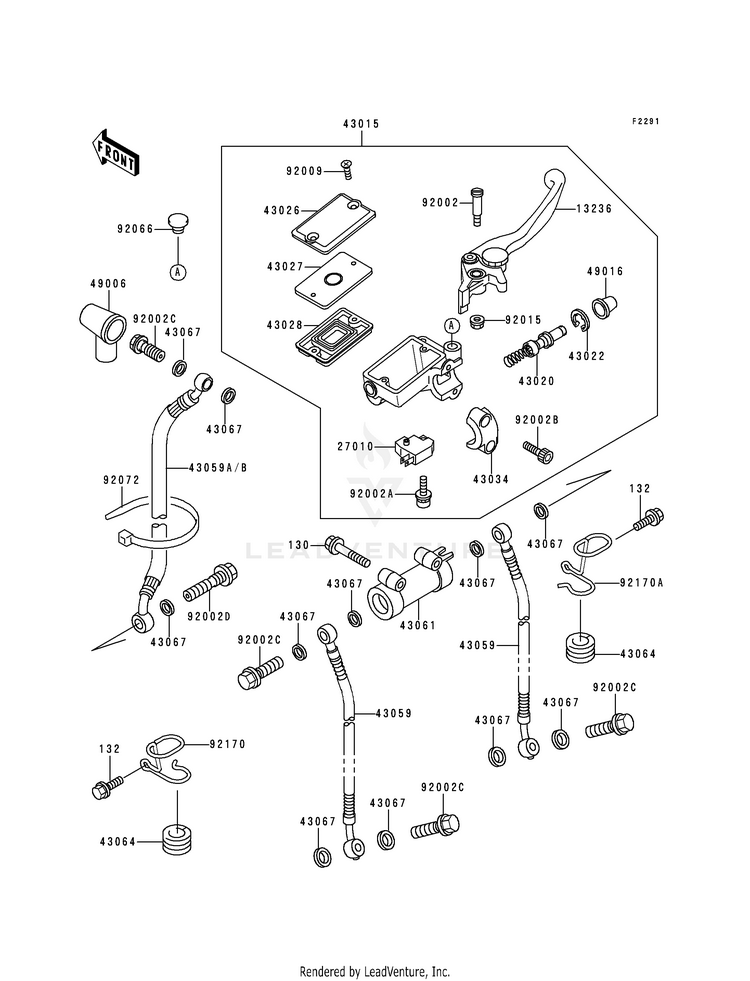

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130BA0660

(replaces part #
130G0660)

BOLT-FLANGED,6X60
Usually ships in 7-10 business days
132132E0612BOLT-FLANGED-SMALL,6X12
Usually ships in 7-10 business days
1323613236-1185LEVER-COMP,FRONT BRAKE
Usually ships in 7-10 business days
2701027010-1170SWITCH,BRAKE
4 In-Stock
4301543015-5015

(replaces part #
43015-1498)

CYLINDER-ASSY-MASTER,
Usually ships in 7-10 business days
4302043020-1054PISTON-COMP-BRAKE,FR
1 In-Stock
AFTERMARKET ALTERNATIVE
$29.55$28.076 In-Stock
4302243022-1010STOPPER-BRAKE,PISTON
10+ In-Stock
4302643026-1076CAP-BRAKE
Usually ships in 7-10 business days
4302743027-1055PLATE-DIAPHRAGM
Usually ships in 7-10 business days
4302843028-1058DIAPHRAGM,MASTER CYLINDER
1 In-Stock
4303443034-1053HOLDER-BRAKE,MASTER CYLINDER
Usually ships in 7-10 business days
4305943059-1789HOSE-BRAKE,FR
Usually ships in 7-10 business days
43059A43095-0099

(replaces part #
43059-1790)

HOSE-BRAKE,FR,FOR UP
Usually ships in 7-10 business days
43059B43059-1791HOSE-BRAKE,FR,FOR LOW | (OPTION)
Usually ships in 7-10 business days
4306143061-1004JOINT-BRAKE
Usually ships in 7-10 business days
4306443064-007GROMMET,HOSE CLAMP
5 In-Stock
4306749091-0001

(replaces part #
43067-001)

WASHER-SEAL,10.1X14.5X1.5
10+ In-Stock
4900649006-1041

(replaces part #
49006-1040)

BOOT,DUST
4901649016-1044COVER-SEAL,MASTER CYLINDER
6 In-Stock
9200292002-1322BOLT,LEVER SET,BLACK
2 In-Stock
92002A92002-1323BOLT,SCREW,4X12
5 In-Stock
92002B92153-0417

(replaces part #
92002-1324)

BOLT,SOCKET,6X20
Usually ships in 7-10 business days
92002C92153-0627

(replaces part #
92002-1888)

BOLT,OIL,L=23
10+ In-Stock
92002D92153-0628

(replaces part #
92002-1909)

BOLT,OIL,L=37
Usually ships in 7-10 business days
9200992009-1458SCREW,4MM
10+ In-Stock
9201592015-1233NUT,FLANGED,6MM,BLACK
10+ In-Stock
9206692066-1077PLUG,9.5X8,POLYETHYLENE
3 In-Stock
9207292072-1197BAND,L=365
Usually ships in 7-10 business days
9217092171-0100

(replaces part #
92170-1333)

CLAMP,HOSE,LH
Usually ships in 7-10 business days
92170A92171-0101

(replaces part #
92170-1334)

CLAMP,HOSE,RH
Usually ships in 7-10 business days
