1995 Kawasaki Concours ZG1000 Radiator OEM Parts Diagram

Submodel ZG1000-A10 Concours (1995)

Shop Aftermarket Parts

RADIATOR

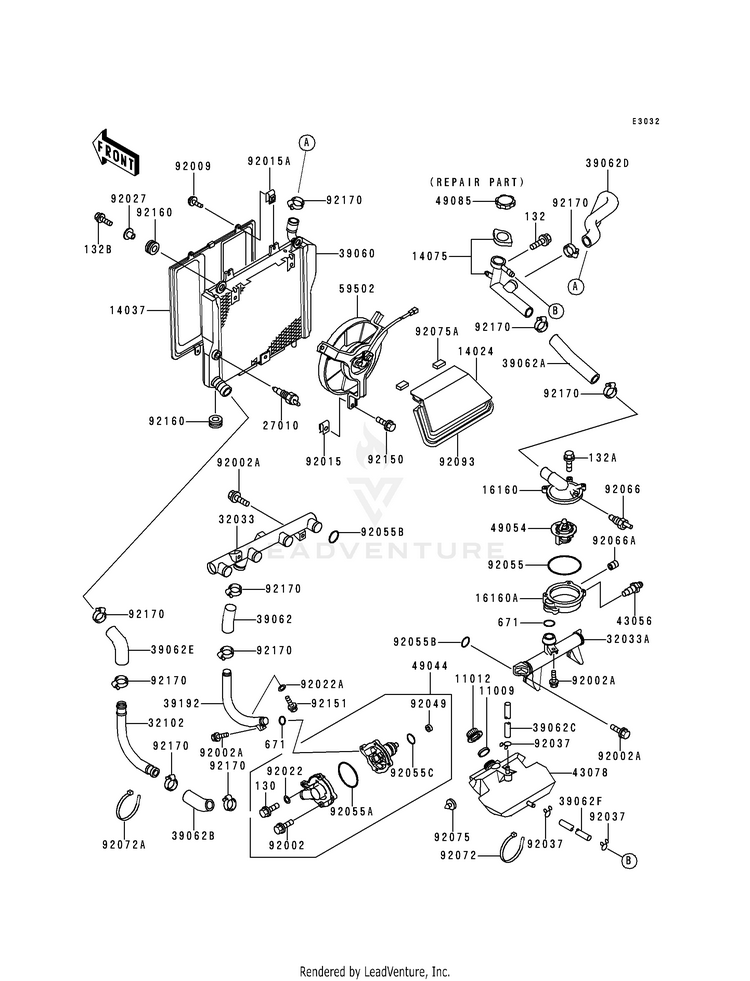

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100911009-1145GASKET,RESERVOIR TANK CAP
3 In-Stock
1101211012-1084CAP
10+ In-Stock
130130C0610BOLT-FLANGED,6X10,BLACK
Usually ships in 7-10 business days
132132BB0608

(replaces part #
132J0608)

BOLT-FLANGED-SMALL,6X8
1 In-Stock
132A132BB0620

(replaces part #
132J0620)

BOLT-FLANGED-SMALL,6X20
8 In-Stock
132B132BB0825

(replaces part #
132J0825)

BOLT-FLANGED-SMALL,8X25
10+ In-Stock
1402414024-1267COVER
Usually ships in 7-10 business days
1403714037-1070SCREEN,RADIATOR
Usually ships in 7-10 business days
1407514075-1055CAP-ASSY,RADIATOR
Usually ships in 7-10 business days
1616016160-1067BODY,THERMOSTAT,UPP
Usually ships in 7-10 business days
16160A16160-1068BODY,THERMOSTAT,LWR
Usually ships in 7-10 business days
2701027010-1202SWITCH,FAN
9 In-Stock
3203339192-1029

(replaces part #
32033-1262)

PIPE-WATER
Usually ships in 7-10 business days
32033A32033-1719PIPE
Usually ships in 7-10 business days
3210232102-1023PIPE
Usually ships in 7-10 business days
3906039060-1076RADIATOR
Usually ships in 7-10 business days
3906239062-1072HOSE-COOLING
Usually ships in 7-10 business days
39062A39062-1091HOSE-COOLING
Usually ships in 7-10 business days
39062B39062-1092HOSE-COOLING
1 In-Stock
39062C39062-0080

(replaces part #
39062-1144)

HOSE-COOLING,5.5X10.5
Usually ships in 7-10 business days
39062D39062-1164HOSE-COOLING
Not Shipping
39062E39062-1165HOSE-COOLING
Usually ships in 7-10 business days
39062F39062-1226HOSE-COOLING
1 In-Stock
3919239192-1028PIPE-WATER
Usually ships in 7-10 business days
4305643085-001

(replaces part #
43056-003)

BLEEDER SET
4 In-Stock
4307843078-1074RESERVOIR
Not Shipping
4904449044-1083

(replaces part #
49044-1058)

PUMP-WATER
Not Shipping
4905449054-1051THERMOSTAT
Usually ships in 7-10 business days
4908549085-1067CAP-ASSY-PRESSURE
5 In-Stock
5950259502-1067FAN-ASSY
Usually ships in 7-10 business days
671671B2525O RING,25MM
6 In-Stock
9200292002-1392BOLT,6X22
Usually ships in 7-10 business days
92002A132BB0612

(replaces part #
92002-1569)

BOLT-FLANGED-SMALL,6X12
10+ In-Stock
9200992172-0003

(replaces part #
92009-1261)

SCREW,TAPPING,6X12
4 In-Stock
9201592015-1487NUT
10+ In-Stock
92015A92015-1758NUT,6MM
8 In-Stock
9202292022-1976WASHER,6MM
1 In-Stock
92022A92022-304WASHER,6.2X11X1
10+ In-Stock
9202792027-1134COLLAR,L=14
4 In-Stock
9203792037-147CLAMP,TUBE
10+ In-Stock
9204992049-1416SEAL-OIL,WATER PUMP
Usually ships in 7-10 business days
9205592055-112RING-O,53.5X2.6
10+ In-Stock
92055A92055-1271RING-O,WATER PUMP
1 In-Stock
92055B92055-1282RING-O
10+ In-Stock
92055C92055-1424RING-O,33.2X2.4
2 In-Stock
9206692066-1183PLUG,SENSOR WATER
Usually ships in 7-10 business days
92066A92066-1201PLUG
Usually ships in 7-10 business days
9207292072-1195BAND,L=202
10+ In-Stock
92072A92072-1197BAND,L=365
Usually ships in 7-10 business days
9207592075-078DAMPER,RUBBER
Usually ships in 7-10 business days
92075A92075-1446DAMPER
Usually ships in 7-10 business days
9209392093-1214SEAL
Usually ships in 7-10 business days
9215092150-1187BOLT,6X16
Usually ships in 7-10 business days
9215192151-1344BOLT,6X10
2 In-Stock
9216092160-1007DAMPER
6 In-Stock
9217092171-0179

(replaces part #
92170-1284)

CLAMP
10+ In-Stock
