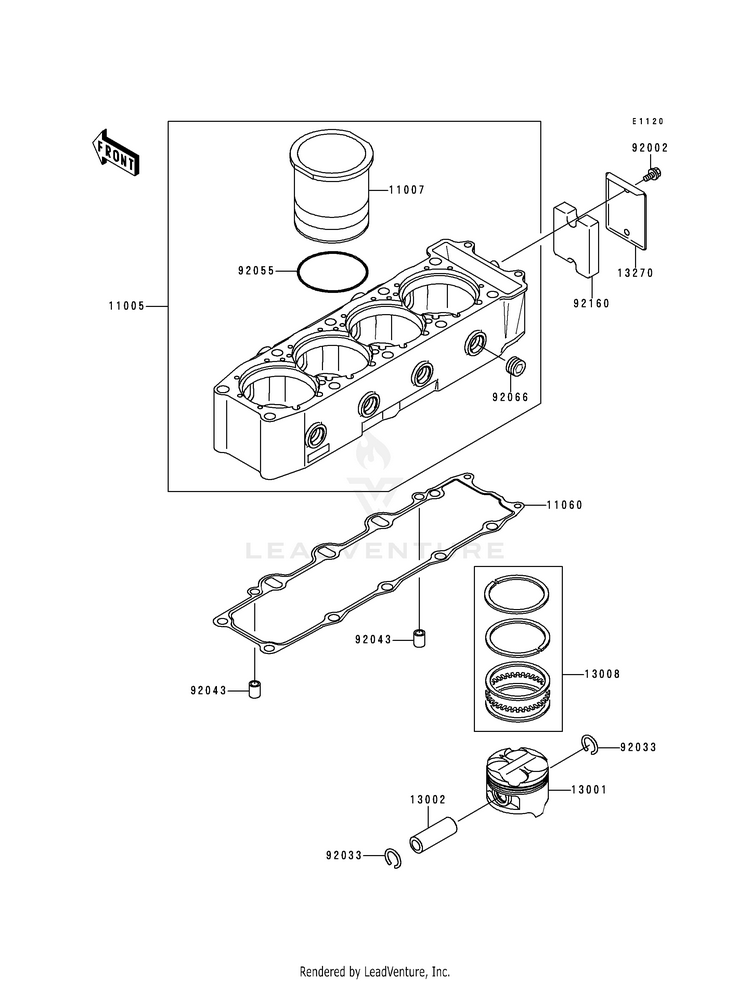

1995 Kawasaki Ninja ZX-9R Cylinder/Piston(S) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11005	11005-1778	CYLINDER-ENGINE	Usually ships in 7-10 business days
11007	11007-1136	LINER-CYLINDER	Usually ships in 7-10 business days
11060	11060-1093	GASKET,CYLINDER BASE	Usually ships in 7-10 business days
13001	13001-1437	PISTON-ENGINE,STD	Usually ships in 7-10 business days
13002	13002-1086	PIN-PISTON	Usually ships in 7-10 business days
13008	13008-1158	RING-SET-PISTON,STD	Usually ships in 7-10 business days
13270	13270-1157	PLATE	Usually ships in 7-10 business days
92002	92002-1604	BOLT,6X8	Usually ships in 7-10 business days
92033	92033-1099	RING-SNAP,20.5X1.2	10+ In-Stock
92043	92043-1037	PIN,DOWEL,10X14	10+ In-Stock
92055	92055-1526	RING-O,78.9X2.0	Usually ships in 7-10 business days
92066	92066-0002 (replaces part # 92066-1253)	PLUG,PT1/2X12.5	9 In-Stock
92160	92160-1488	DAMPER	Usually ships in 7-10 business days
