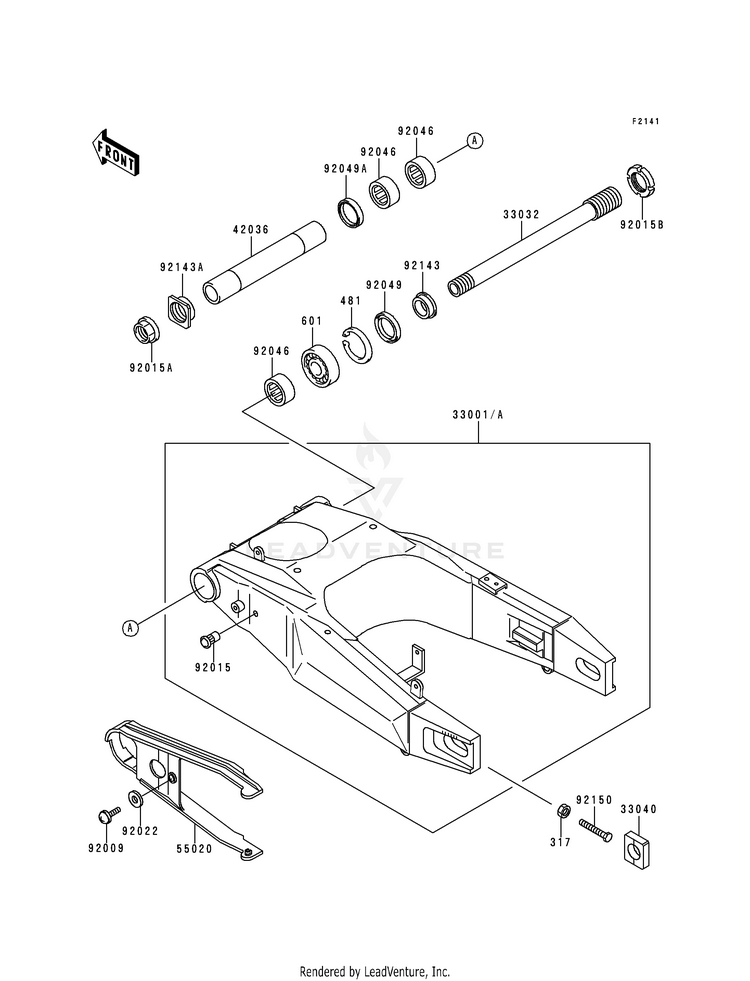

1995 Kawasaki Ninja ZX-9R Swingarm OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
317	317BA0800 (replaces part # 317G0800)	NUT-HEX-SMALL,8MM	10+ In-Stock
33001A	33001-1481-GD	ARM-COMP-SWING,G.GRAY	Usually ships in 7-10 business days
33032	33032-1173	SHAFT-SWING ARM	Usually ships in 7-10 business days
33040	33040-1114	ADJUSTER-CHAIN,RH	Usually ships in 7-10 business days
42036	42036-1312	SLEEVE,SWING ARM,L=22	Usually ships in 7-10 business days
481	92033-1042 (replaces part # 481J4700)	RING-SNAP,47MM	2 In-Stock
55020	55020-1532	GUARD,CHAIN	Usually ships in 7-10 business days
601	601B6005U	BEARING-BALL,#6005U	Usually ships in 7-10 business days
92009	92009-3805 (replaces part # 92009-1663)	SCREW,6X18	10+ In-Stock
92015	92015-1792	NUT,POP,6MM,L=16.5	10+ In-Stock
92015A	92015-1845	NUT,FLANGED,25MM	Usually ships in 7-10 business days
92015B	92015-1930	NUT,FRAME PIVOT,32MM	Usually ships in 7-10 business days
92022	92022-1143	WASHER,6.5X16X1	10+ In-Stock
92046	92046-1205	BEARING-NEEDLE,BM3520	Usually ships in 7-10 business days
92049	92049-1381	SEAL-OIL,MHA 35X47X5	Usually ships in 7-10 business days
92049A	92049-1419	SEAL-OIL,KC 38 45 6	Usually ships in 7-10 business days
92143	92143-1481	COLLAR,SWING ARM,RH,L	Usually ships in 7-10 business days
92143A	92143-1681	COLLAR,SWING ARM,LH,L	Usually ships in 7-10 business days
92150	92153-1407 (replaces part # 92150-1350)	BOLT,8X55	3 In-Stock
