1995 Kawasaki Vulcan 88 VN1500 Battery Case OEM Parts Diagram

Submodel VN1500-A9 Vulcan 88 (1995)

Shop Aftermarket Parts

BATTERY CASE

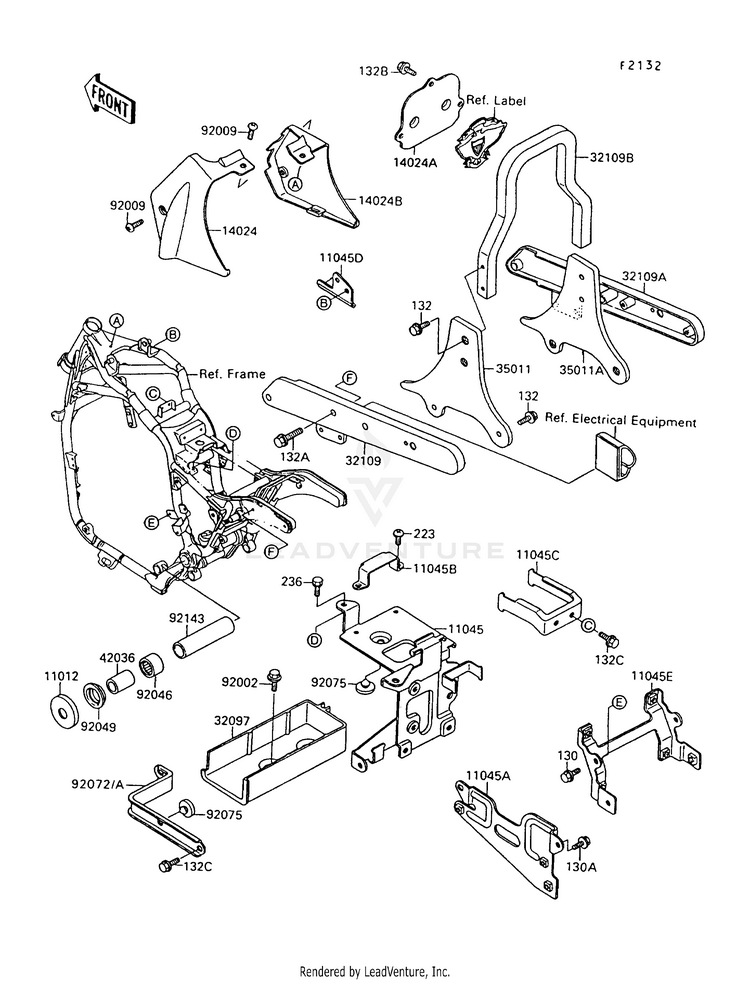

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1101211012-1575CAP,SWING ARM
Usually ships in 7-10 business days
1104511045-1451BRACKET,ELECTRIC BASE
Usually ships in 7-10 business days
11045A11045-1452BRACKET,IGNITER
Usually ships in 7-10 business days
11045B11045-1453BRACKET,JUNCTION BOX
Usually ships in 7-10 business days
11045C11045-1454BRACKET,FUEL PUMP
Usually ships in 7-10 business days
11045D11045-1455BRACKET,FUEL FILTER
Usually ships in 7-10 business days
11045E11045-1622BRACKET,IGNITION COIL
Usually ships in 7-10 business days
130130BB0614

(replaces part #
130C0614)

BOLT-FLANGED,6X14
10+ In-Stock
130A130AA0610

(replaces part #
130D0610)

BOLT-FLANGED,6X10
10+ In-Stock
132132E0614BOLT-FLANGED-SMALL,6X14
10+ In-Stock
132A132E0820BOLT-FLANGED-SMALL,8X20
Usually ships in 7-10 business days
132B132BA0612

(replaces part #
132G0612)

BOLT-FLANGED-SMALL,6X12
10+ In-Stock
132C132BA0610

(replaces part #
132H0610)

BOLT-FLANGED-SMALL,6X10
10+ In-Stock
1402414024-1457COVER,HEAD GUSSET,LH
Usually ships in 7-10 business days
14024A14024-1459COVER,SEAT
Usually ships in 7-10 business days
14024B14024-1682COVER,HEAD GUSSET,RH
Usually ships in 7-10 business days
223223AA0510

(replaces part #
223B0510)

SCREW-PAN-WS-CROS,5X10
Usually ships in 7-10 business days
236236D0612SCREW-PAN-WSP-CROS
Usually ships in 7-10 business days
3209732097-1130CASE-BATTERY
Usually ships in 7-10 business days
3210932109-1157GRIP-FRAME,LWR,LH
Usually ships in 7-10 business days
32109A32109-1158GRIP-FRAME,LWR,RH
Usually ships in 7-10 business days
32109B32109-1159GRIP-FRAME,UPP
Usually ships in 7-10 business days
3501135011-1336STAY,FRAME GRIP,LH
Usually ships in 7-10 business days
35011A35011-1337STAY,FRAME GRIP,RH
Usually ships in 7-10 business days
4203642036-1213SLEEVE,17.1X25X40
Usually ships in 7-10 business days
9200292002-1721BOLT,6X12
Usually ships in 7-10 business days
9200992009-1651SCREW
Usually ships in 7-10 business days
9204692046-1035BEARING-NEEDLE,BHTM2530-1
Usually ships in 7-10 business days
9204992049-1166SEAL-OIL
Usually ships in 7-10 business days
92072A92072-1313BAND,BATTERY
Usually ships in 7-10 business days
9207592075-078DAMPER,RUBBER
Usually ships in 7-10 business days
9214392143-1083COLLAR,17.6X22.2X96.5
Usually ships in 7-10 business days
