1995 Kawasaki Vulcan 88 VN1500 Meter(S) OEM Parts Diagram

Submodel VN1500-A9 Vulcan 88 (1995)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER(S)

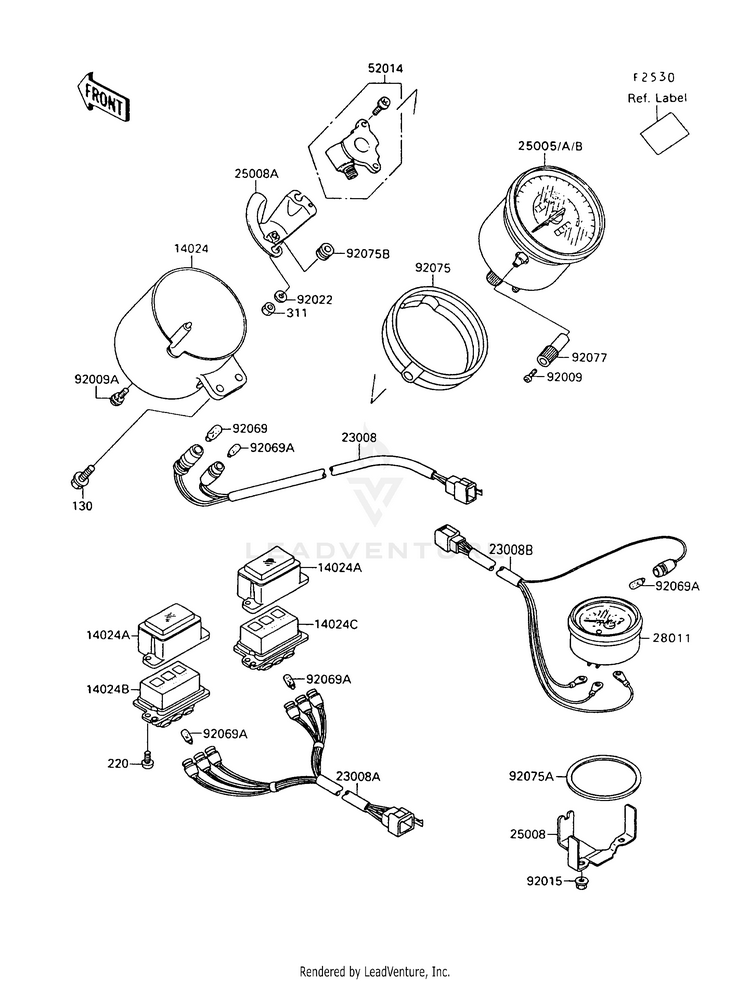

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130AA0616

(replaces part #
130B0616)

BOLT-FLANGED,6X16
10+ In-Stock
1402414024-1504COVER,METER,LWR
Usually ships in 7-10 business days
14024A14024-1505COVER,PILOT BOX,UPP
Usually ships in 7-10 business days
14024B14024-1506COVER,PILOT BOX,LH,LWR
Usually ships in 7-10 business days
14024C14024-1507COVER,PILOT BOX,RH,LWR
Usually ships in 7-10 business days
220220AA0414

(replaces part #
220B0414)

SCREW-PAN-CROS
10+ In-Stock
2300823008-1340SOCKET-ASSY,METER
Usually ships in 7-10 business days
23008A23008-1346

(replaces part #
23008-1341)

SOCKET-ASSY,PILOT BOX
Usually ships in 7-10 business days
23008B23008-1342SOCKET-ASSY,FUEL METE
Usually ships in 7-10 business days
25005A25005-1368SPEEDOMETER,KPH | [CN]
Not Shipping
25005B25005-1385SPEEDOMETER,MPH | [CA,US]
Usually ships in 7-10 business days
2500825008-1136BRACKET-METER
Usually ships in 7-10 business days
25008A25008-1139BRACKET-METER
Usually ships in 7-10 business days
2801128011-1102METER,FUEL
Usually ships in 7-10 business days
311311AA0400

(replaces part #
311B0400)

NUT-HEX,4MM
Usually ships in 7-10 business days
5201452014-0002

(replaces part #
52014-1081)

ELBOW
Usually ships in 7-10 business days
9200992009-1172SCREW,2X6,BLACK
2 In-Stock
92009A92009-1478SCREW,5X10
Usually ships in 7-10 business days
9201592015-1259NUT,FLANGED,5MM
10+ In-Stock
9202292022-1888WASHER,4.3X12.5X1
Usually ships in 7-10 business days
9206992069-1007BULB,12V 3.4W,T10
10+ In-Stock
92069A92069-1068BULB,14V 3W,T6.5
9 In-Stock
9207592075-1953DAMPER,SHOCK,METER
Usually ships in 7-10 business days
92075A92075-1954DAMPER,SHOCK,FUEL MET
Usually ships in 7-10 business days
92075B92075-1956DAMPER,METER FITTING
Usually ships in 7-10 business days
9207792077-1077KNOB,METER
Usually ships in 7-10 business days
