1995 Kawasaki ZR1100 Zephyr Front Fork OEM Parts Diagram

Submodel ZR1100-A4 ZR1100 Zephyr (1995)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FORK

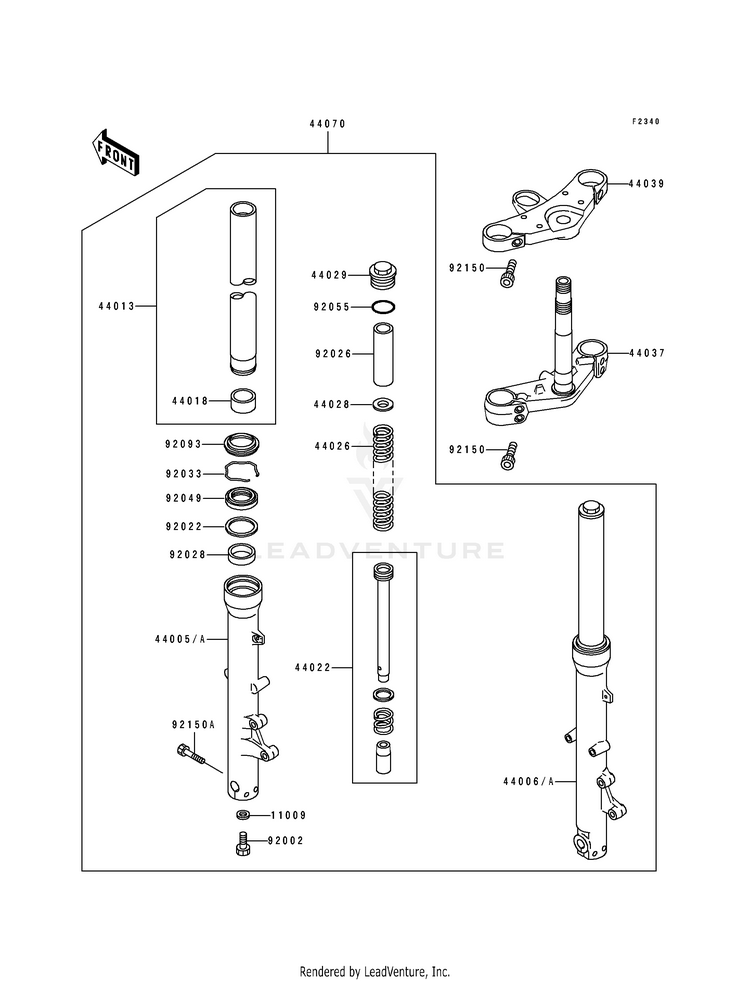

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100911009-1553GASKET,FORK DRAIN PLUG
Usually ships in 7-10 business days
44005A44005-1329PIPE-LEFT FORK OUTER
Usually ships in 7-10 business days
44006A44006-1327PIPE-RIGHT FORK OUTER
Usually ships in 7-10 business days
4401344013-1373PIPE-FORK INNER
Usually ships in 7-10 business days
4401844018-1056PISTON-FORK,INNER PIPE
10+ In-Stock
4402244022-1278CYLINDER-FORK
Usually ships in 7-10 business days
4402644026-1519SPRING-FRONT FORK
Usually ships in 7-10 business days
4402844028-1085GUIDE-FORK SPRING
Usually ships in 7-10 business days
4402944029-1154SEAT-FORK SPRING
Usually ships in 7-10 business days
4403744037-1300HOLDER-FORK UNDER
Usually ships in 7-10 business days
4403944039-1227HOLDER-FORK UPPER
Usually ships in 7-10 business days
4407044075-1160

(replaces part #
44070-5169)

DAMPER-SET-FORK
Usually ships in 7-10 business days
9200292002-1650BOLT,FORK DRAIN
Usually ships in 7-10 business days
9202292022-1299WASHER
10+ In-Stock
9202692026-1421SPACER,FORK,L=125
Usually ships in 7-10 business days
9202892028-1581BUSHING
10+ In-Stock
9203392033-1077RING-SNAP
10+ In-Stock
9204992049-1392SEAL-OIL,FORK OUTER T
Usually ships in 7-10 business days
9205592055-1123RING-O
8 In-Stock
9209392093-1330SEAL,FORK OUTER TUBE
Usually ships in 7-10 business days
92150120CA0825

(replaces part #
92150-1172)

BOLT-SOCKET,8X25
Usually ships in 7-10 business days
92150A120CA0840

(replaces part #
92150-1194)

BOLT-SOCKET,8X40
10+ In-Stock
