1995 Kawasaki ZR1100 Zephyr Rear Wheel/Chain OEM Parts Diagram

Submodel ZR1100-A4 ZR1100 Zephyr (1995)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

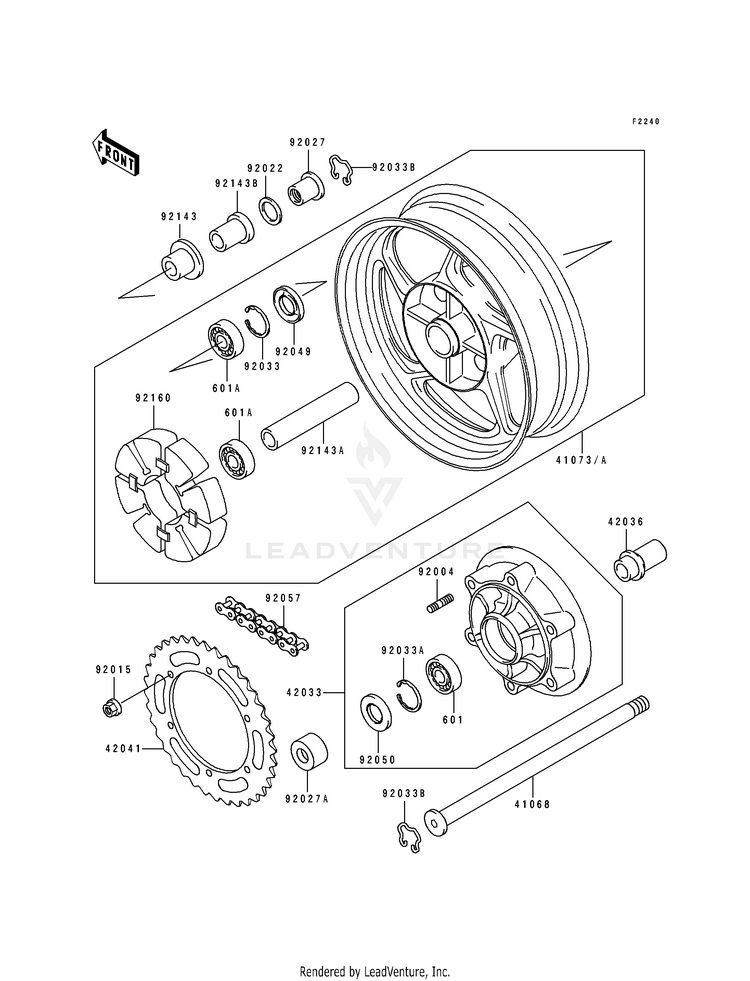

REAR WHEEL/CHAIN

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
4106841068-1256AXLE,RR
Usually ships in 7-10 business days
41073A41073-1546-JDWHEEL-ASSY,RR,P.C.GRA
Usually ships in 7-10 business days
4203342033-1216-EZ

(replaces part #
42033-1152-EZ)

COUPLING-ASSY,RR HUB,
Usually ships in 7-10 business days
4203642036-1229SLEEVE,RR AXLE,L=62
Not Shipping
4204142041-1202SPROCKET-HUB,48T
Usually ships in 7-10 business days
601601B6206UUBEARING-BALL,#6206UUC3
Usually ships in 7-10 business days
601A601B6304UUBEARING-BALL,#6304UUC3
2 In-Stock
9200492004-0029

(replaces part #
92004-1146)

STUD,10X24
Usually ships in 7-10 business days
9201592210-1258

(replaces part #
92015-1720)

NUT,10MM
Usually ships in 7-10 business days
9202292022-1618WASHER,23X32X2.3
Usually ships in 7-10 business days
9202792027-1810COLLAR,RR AXLE,L=28
Usually ships in 7-10 business days
92027A92027-1884COLLAR,RR AXLE,L=20.5
Usually ships in 7-10 business days
9203392033-1043RING-SNAP,52MM
4 In-Stock
92033A92033-1044RING-SNAP,62MM
Usually ships in 7-10 business days
92033B92033-1156RING-SNAP,RR AXLE
Usually ships in 7-10 business days
9204992049-1061SEAL-OIL,28X52X5
1 In-Stock
9205092050-027SEAL-OIL,AJN40627
5 In-Stock
9205792057-0052

(replaces part #
92057-1354)

CHAIN,DRIVE,EK50ZVX2X
Usually ships in 7-10 business days
9214392143-1042COLLAR,L=23
Usually ships in 7-10 business days
92143A92143-1199COLLAR,20.2X29X89
Usually ships in 7-10 business days
92143B92143-1556COLLAR,RR AXLE,L=46.5
Usually ships in 7-10 business days
9216092160-1330DAMPER,SHOCK,RR HUB
Usually ships in 7-10 business days
