1997 Kawasaki BAYOU 300 2X4 Rear Hub OEM Parts Diagram

Submodel KLF300-B10 Bayou 300 (1997)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR HUB

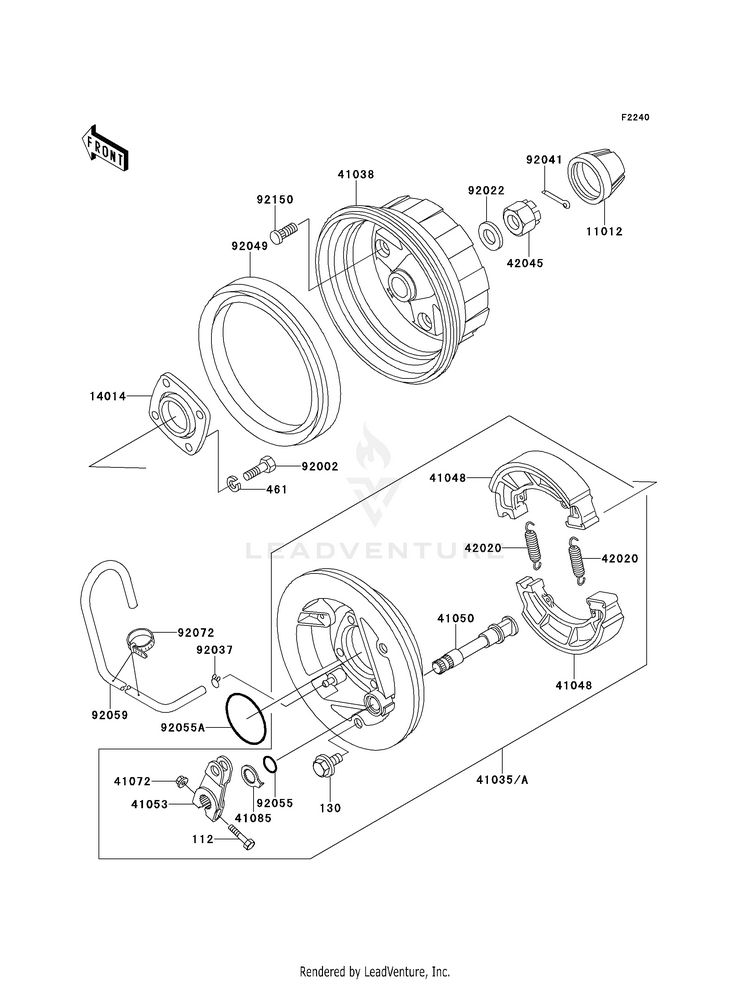

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1101211012-1969CAP,WHEEL
6 In-Stock
112112BA0640

(replaces part #
112H0640)

BOLT-UPSET
Usually ships in 7-10 business days
130130BA1016

(replaces part #
130B1016)

BOLT-FLANGED,10X16
6 In-Stock
1401414014-1072PLATE-POSITION
Usually ships in 7-10 business days
4103541035-1239PANEL-ASSY-BRAKE,RR,R
Usually ships in 7-10 business days
41035A41035-1273PANEL-ASSY-BRAKE,RR,L
Usually ships in 7-10 business days
4103841038-1201DRUM,RR
Usually ships in 7-10 business days
4104841048-1069SHOE-BRAKE
3 In-Stock
4105041050-1074CAM-BRAKE
Usually ships in 7-10 business days
4105341053-1064LEVER-BRAKE CAM
Usually ships in 7-10 business days
4107241072-007NUT,6MM
5 In-Stock
4108541085-1053INDICATOR
Usually ships in 7-10 business days
4202042020-004SPRING-BRAKE SHOE
6 In-Stock
4204542045-018NUT,CASTLE,18MM
9 In-Stock
461461DA1000

(replaces part #
461F1000)

WASHER-SPRING,10MM
10+ In-Stock
9200292002-1918BOLT
Usually ships in 7-10 business days
9202292022-1658WASHER,18.3X34X4.5
4 In-Stock
9203792037-147CLAMP,TUBE
10+ In-Stock
9204192041-1053COTTER,4.0X35
10+ In-Stock
9204992049-1242SEAL-OIL
Usually ships in 7-10 business days
9205592055-1376RING-O
2 In-Stock
92055A92055-3018RING-O,59.6X2.4
10+ In-Stock
9205992059-1968TUBE 5X9X1240
Usually ships in 7-10 business days
9207292072-030BAND,L=123
7 In-Stock
9215092150-1110BOLT
5 In-Stock
