1998 Kawasaki BAYOU 300 2X4 Crankcase OEM Parts Diagram

Submodel KLF300-B11 Bayou 300 (1998)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

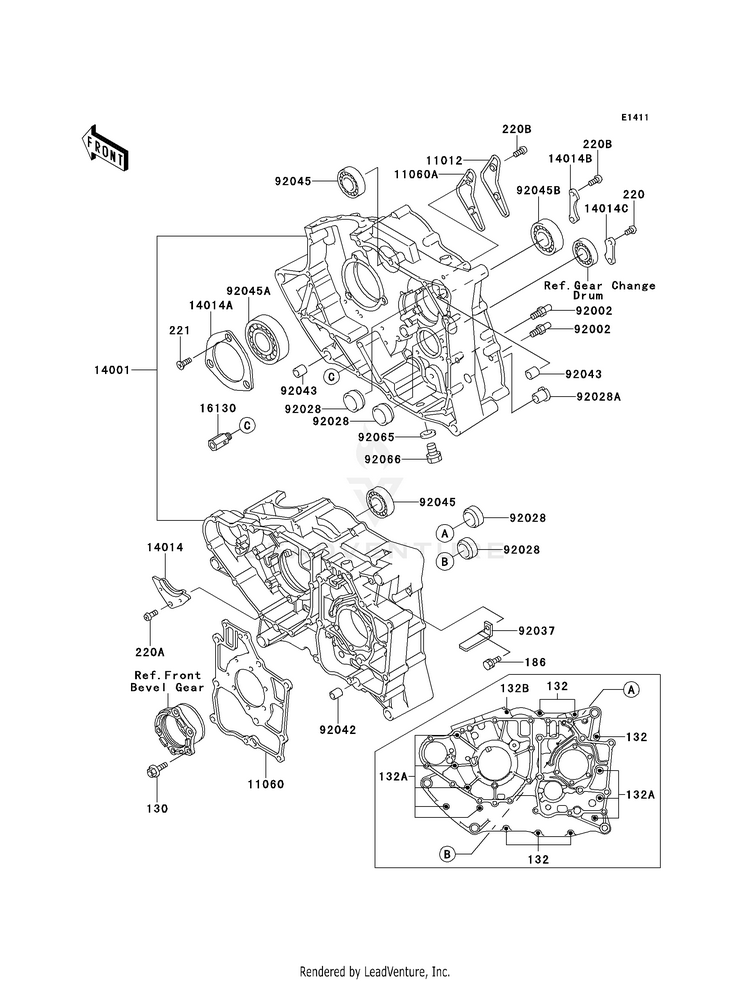

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1101211012-1443CAP
Usually ships in 7-10 business days
1106011060-1653GASKET,GEAR CASE
3 In-Stock
11060A11060-1654GASKET,OIL LINE CAP
Usually ships in 7-10 business days
130130CA0620

(replaces part #
130P0620)

BOLT-FLANGED,6X20
10+ In-Stock
132132BD0635

(replaces part #
132Y0635)

BOLT-FLANGED-SMALL,6X35
10+ In-Stock
132A132BD0665

(replaces part #
132Y0665)

BOLT-FLANGED-SMALL,6X65
10+ In-Stock
132B132BD0685

(replaces part #
132Y0685)

BOLT-FLANGED-SMALL
Usually ships in 7-10 business days
1400114001-5324SET-CRANKCASE
Usually ships in 7-10 business days
1401414014-035PLATE,POSITIONING
Usually ships in 7-10 business days
14014A14014-1004PLATE,POSITIONING
Usually ships in 7-10 business days
14014B14014-1069PLATE-POSITION
Usually ships in 7-10 business days
14014C14014-1070PLATE-POSITION,CHANGE
Usually ships in 7-10 business days
1613016130-1001VALVE-ASSY-RELIEF
Usually ships in 7-10 business days
186186AA0614

(replaces part #
186D0614)

BOLT-UPSET-WP
4 In-Stock
220220AA0610

(replaces part #
220B0610)

SCREW-PAN-CROS,6X10
10+ In-Stock
220A220AA0612

(replaces part #
220B0612)

SCREW-PAN-CROS,6X12
10+ In-Stock
220B220AA0614

(replaces part #
220B0614)

SCREW-PAN-CROS,6X14
10+ In-Stock
221221AA0616

(replaces part #
221B0616)

SCREW-CSK-CROS,6X16
10+ In-Stock
9200292002-1408BOLT,RETURN SPRING
Usually ships in 7-10 business days
9202892028-132BUSHING,23X30X13
3 In-Stock
92028A92028-1386BUSHING
Usually ships in 7-10 business days
9203792171-0652

(replaces part #
92037-1316)

CLAMP,L=60
10+ In-Stock
9204292043-0963

(replaces part #
92042-031)

PIN,12X14
Usually ships in 7-10 business days
9204392043-1279PIN,11.5X14X14
4 In-Stock
9204592045-1118BEARING-BALL,6004TMB
9 In-Stock
92045A92045-1172BEARING-BALL
Usually ships in 7-10 business days
92045B92045-1142

(replaces part #
92045-1173)

BEARING-BALL,TMB304CCM
Usually ships in 7-10 business days
9206592065-097GASKET,12X22X2
10+ In-Stock
9206692066-1174PLUG,OIL DRAIN,12X15
10+ In-Stock
AFTERMARKET ALTERNATIVE
$11.99$9.9910+ In-Stock
