1998 Kawasaki BAYOU 400 4X4 Front Bevel Gear OEM Parts Diagram

Submodel KLF400-B6 Bayou 400 4X4 (1998)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

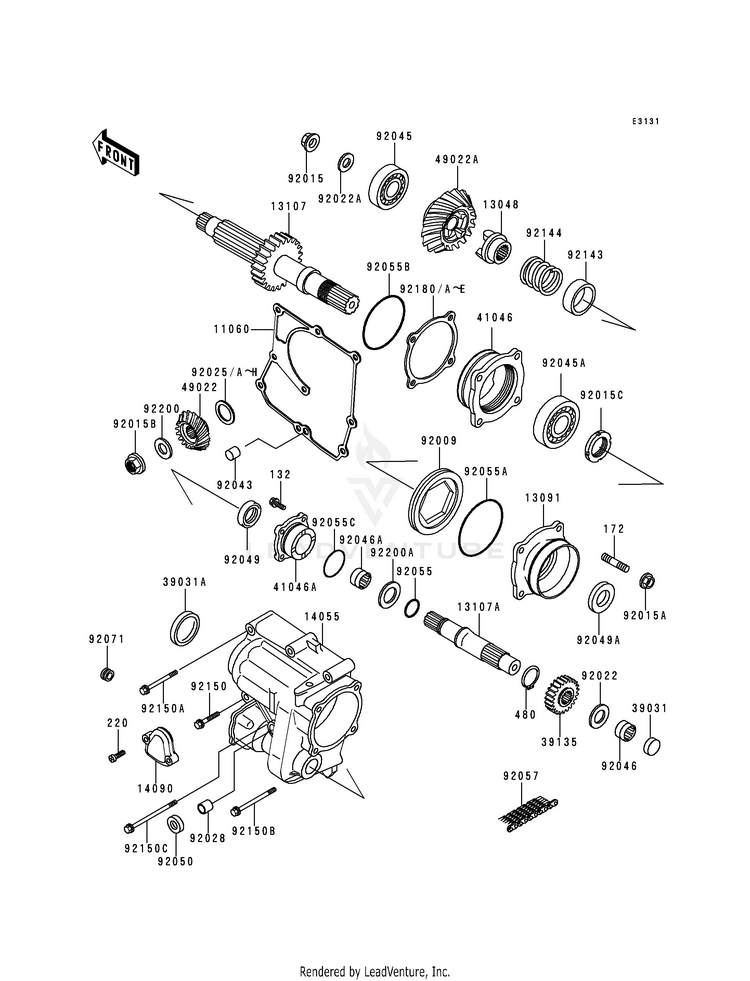

FRONT BEVEL GEAR

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106011060-1708GASKET,GEAR CASE
Usually ships in 7-10 business days
1304813048-1078CAM-DAMPER
Usually ships in 7-10 business days
1309113091-1764HOLDER,GEAR CASE
Usually ships in 7-10 business days
1310713107-1323SHAFT,FRONT BEVEL,23T
Usually ships in 7-10 business days
13107A13107-1332SHAFT,FRONT BEVEL
Usually ships in 7-10 business days
132132BA0620

(replaces part #
132V0620)

BOLT-FLANGED-SMALL,6X20
10+ In-Stock
1405514055-1122CASE-GEAR,FRONT BEVEL
Usually ships in 7-10 business days
1409014090-1135COVER
Usually ships in 7-10 business days
172172BA0825

(replaces part #
172G0825)

BOLT-STUD,8X25
10+ In-Stock
220220AB0620

(replaces part #
220C0620)

SCREW-PAN-CROSS
4 In-Stock
3903139031-1061CAP-END
Usually ships in 7-10 business days
39031A39031-1062CAP-END
Usually ships in 7-10 business days
3913539135-1054SPROCKET-DRIVEN,23T
Usually ships in 7-10 business days
4104641046-1094HOUSING-BEARING
Usually ships in 7-10 business days
41046A41046-1095HOUSING-BEARING
Usually ships in 7-10 business days
480480J2500CIRCLIP-TYPE-C,25MM
10+ In-Stock
4902249022-1126GEAR-BEVEL
Usually ships in 7-10 business days
49022A49022-1127GEAR-BEVEL
Usually ships in 7-10 business days
9200992172-0341

(replaces part #
92009-1667)

SCREW,SET,75X10
Usually ships in 7-10 business days
9201592015-1341NUT,FLANGED,14MM
Usually ships in 7-10 business days
92015A92015-1402NUT,8MM
10+ In-Stock
92015B92015-1581NUT,16MM
5 In-Stock
92015C92015-1858NUT,30MM
Usually ships in 7-10 business days
9202292022-1489WASHER,20.3X36X1.5
4 In-Stock
92022A92022-1688WASHER,14.2X28X2.6
Usually ships in 7-10 business days
9202592025-1688SHIM,25.3X36X0.15
Usually ships in 7-10 business days
92025A92025-1689SHIM,25.3X36X0.50
Usually ships in 7-10 business days
92025B92025-1690SHIM,25.3X36X0.60
Usually ships in 7-10 business days
92025C92025-1691SHIM,25.3X36X0.70
Usually ships in 7-10 business days
92025D92025-1692SHIM,25.3X36X0.80
Usually ships in 7-10 business days
92025E92025-1693SHIM,25.3X36X0.90
Usually ships in 7-10 business days
92025F92025-1694SHIM,25.3X36X1.00
Usually ships in 7-10 business days
92025G92025-1695SHIM,25.3X36X1.10
Usually ships in 7-10 business days
92025H92025-1696SHIM,25.3X36X1.20
Usually ships in 7-10 business days
9202892028-1347BUSHING
7 In-Stock
9204392043-1037PIN,DOWEL,10X14
10+ In-Stock
9204592045-1155BEARING-BALL,6206CM
Usually ships in 7-10 business days
92045A92045-1190BEARING-BALL,6306SH2
3 In-Stock
9204692046-1211BEARING-NEEDLE,NK20/2
Usually ships in 7-10 business days
92046A92046-1212BEARING-NEEDLE,NK24/2
Usually ships in 7-10 business days
9204992049-1395SEAL-OIL,AE1252E0
4 In-Stock
92049A92049-1400SEAL-OIL,AE1265E0
4 In-Stock
9205092050-082SEAL-OIL
10+ In-Stock
9205592055-055RING-O,19.5X1.5
10+ In-Stock
92055A92055-081RING-O
4 In-Stock
92055B92055-1230RING-O,79.5MM
2 In-Stock
92055C92055-1401RING-O,43.7X1.9
5 In-Stock
9205792057-1351CHAIN,BEVEL,63HV303-4
Usually ships in 7-10 business days
9207192071-1203GROMMET
Usually ships in 7-10 business days
9214392143-1657COLLAR
Usually ships in 7-10 business days
9214492144-1599SPRING,BEVEL
Usually ships in 7-10 business days
92150132BA0835

(replaces part #
92150-1585)

BOLT-FLANGED-SMALL,8X35
10+ In-Stock
92150A92150-1586BOLT,8X60
Usually ships in 7-10 business days
92150B92150-1587BOLT,8X75
Usually ships in 7-10 business days
92150C92150-1588BOLT,8X90
Usually ships in 7-10 business days
9218092180-1126SHIM,T=1.00
Usually ships in 7-10 business days
92180A92180-1127SHIM,T=0.10
Usually ships in 7-10 business days
92180B92180-1128SHIM,T=0.15
Usually ships in 7-10 business days
92180C92180-1129SHIM,T=0.50
Usually ships in 7-10 business days
92180D92180-1130SHIM,T=0.80
Usually ships in 7-10 business days
92180E92180-1131SHIM,T=1.20
Usually ships in 7-10 business days
9220092200-1104WASHER,16.3X31X3.2
Usually ships in 7-10 business days
92200A92200-1118WASHER,24.2X40X2.0
Usually ships in 7-10 business days
