1998 Kawasaki Ninja ZX-6R Meter(S) OEM Parts Diagram

Submodel ZX600-G1 Ninja ZX-6R (1998)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER(S)

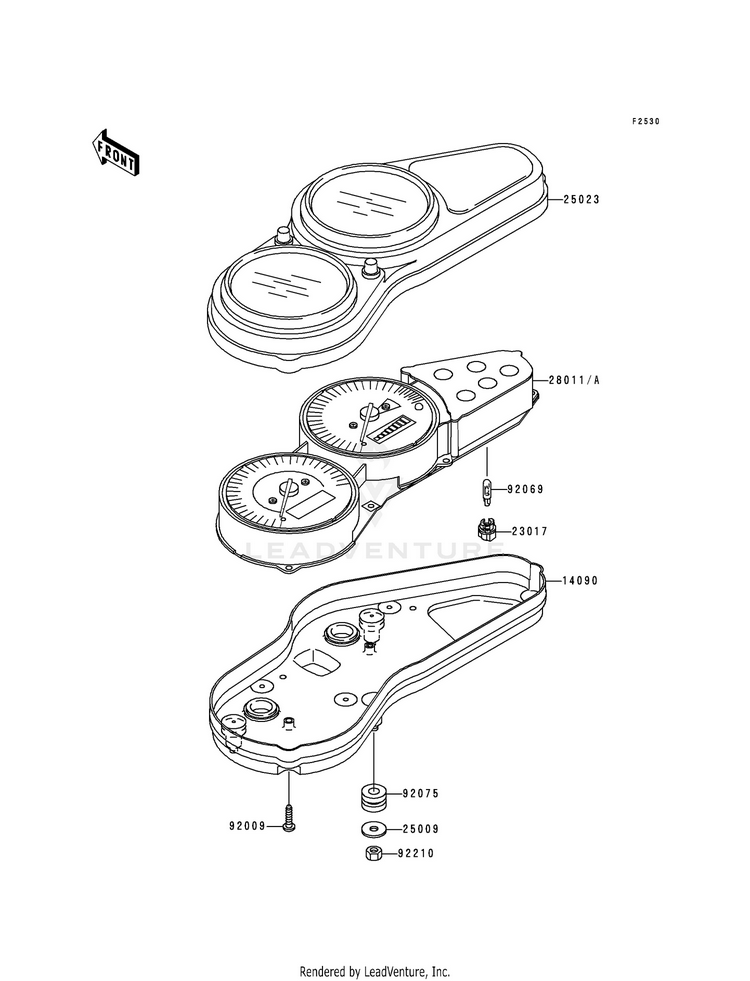

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1409014090-1872COVER,METER HOUSING
Usually ships in 7-10 business days
2301723017-1063SOCKET,WEDGE BASE,T-5
Usually ships in 7-10 business days
2500992200-2276

(replaces part #
25009-004)

WASHER,5.2X16X1.2
7 In-Stock
2502325023-1233COVER-METER CASE,UPP
Usually ships in 7-10 business days
2801128011-1175METER,SPEED&TACHO,MPH | [CA,US]
Usually ships in 7-10 business days
28011A28011-1176METER,SPEED&TACHO,KPH | [CN]
Usually ships in 7-10 business days
9200992009-1158SCREW,4X16,BLACK
Usually ships in 7-10 business days
9206992069-1105BULB,12V 2W,T5
Usually ships in 7-10 business days
9207592075-1435DAMPER
9 In-Stock
9221092210-1124NUT
4 In-Stock
