1999 Kawasaki PRAIRIE 300 4X4 Rear Hub OEM Parts Diagram

Submodel KVF300-A1 Prairie 300 4X4 (1999)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

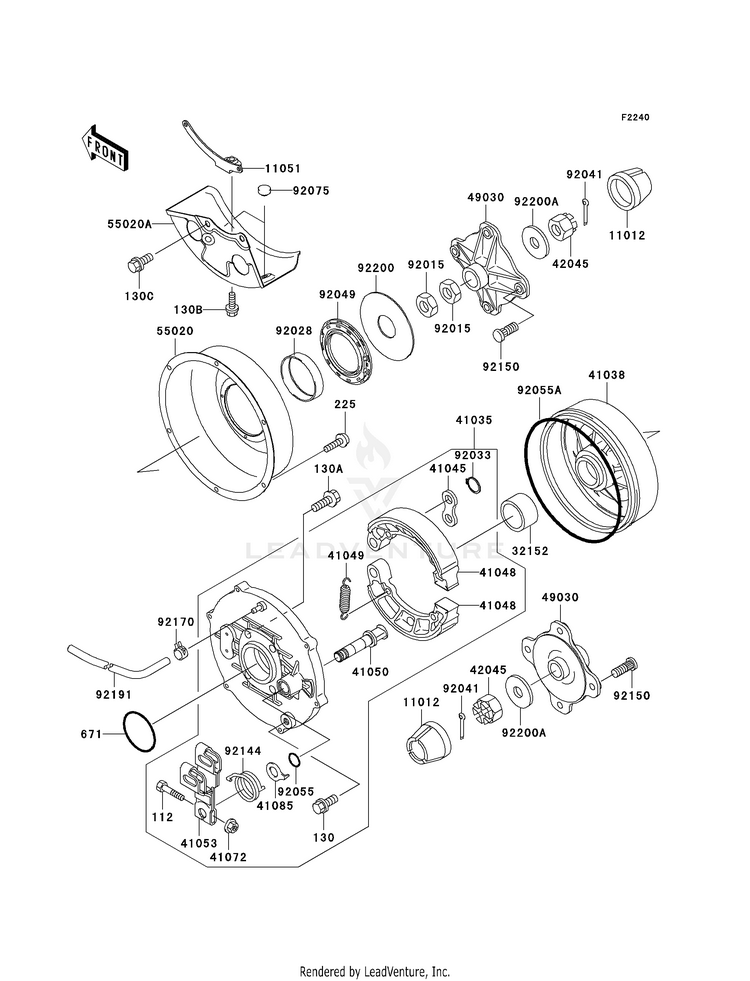

REAR HUB

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1101211012-1969CAP,WHEEL
6 In-Stock
1105111051-1205BRACKET,GUARD
Not Shipping
112112BA0640

(replaces part #
112H0640)

BOLT-UPSET
Usually ships in 7-10 business days
130130AA1012

(replaces part #
130B1012)

BOLT-FLANGED,10X12
Usually ships in 7-10 business days
130A130BA1030

(replaces part #
130G1030)

BOLT-FLANGED,10X30
8 In-Stock
130B130BB0812

(replaces part #
130J0812)

BOLT-FLANGED,8X12
8 In-Stock
130C130BB0816

(replaces part #
130J0816)

BOLT-FLANGED,8X16
10+ In-Stock
225225AB0616

(replaces part #
225C0616)

SCREW-PAN-WSP-CROS
Usually ships in 7-10 business days
3215232152-1082PIPE,40X50.8X28
Usually ships in 7-10 business days
4103541035-1500PANEL-ASSY-BRAKE,RR
Usually ships in 7-10 business days
4103841038-1308DRUM,REAR BRAKE
Usually ships in 7-10 business days
4104541045-006WASHER-BRAKE SHOE
Usually ships in 7-10 business days
4104841048-1127SHOE-BRAKE
9 In-Stock
4104941049-012SPRING,BRAKE SHOE
6 In-Stock
4105041050-1089CAM-BRAKE
Usually ships in 7-10 business days
4105341053-1084LEVER-BRAKE CAM
Usually ships in 7-10 business days
4107241072-007NUT,6MM
5 In-Stock
4108541085-1086INDICATOR
Usually ships in 7-10 business days
4204542045-018NUT,CASTLE,18MM
9 In-Stock
4903049030-1113HUB,RR,LH
Usually ships in 7-10 business days
5502055020-1646GUARD,REAR BRAKE
Usually ships in 7-10 business days
55020A55020-1685GUARD
Usually ships in 7-10 business days
671671B25700 RING,70MM
5 In-Stock
9201592015-1545NUT,LOCK,37MM
Usually ships in 7-10 business days
9202892028-1865BUSHING
Usually ships in 7-10 business days
9203392033-1250RING-SNAP,15MM
4 In-Stock
9204192041-1053COTTER,4.0X35
10+ In-Stock
9204992049-1485SEAL-OIL,SD7 64X106X9
Not Shipping
9205592055-1376RING-O
2 In-Stock
92055A92055-1582RING-O,16MM
Not Shipping
9207592075-1983DAMPER
2 In-Stock
9214492144-1365SPRING
2 In-Stock
9215092150-1289BOLT
10+ In-Stock
9217092170-2042CLAMP
9 In-Stock
9219192191-1292TUBE,4.7X9.5X1000
Usually ships in 7-10 business days
9220092200-1403WASHER,37X111X2
Usually ships in 7-10 business days
92200A92200-1474WASHER,18.5X52X4.5
8 In-Stock
