2001 Kawasaki Vulcan Classic VN1500 Crankcase (Vn1500-E2-E4) OEM Parts Diagram

Submodel VN1500-E4 Vulcan 1500 Classic (2001)

Shop Aftermarket Parts

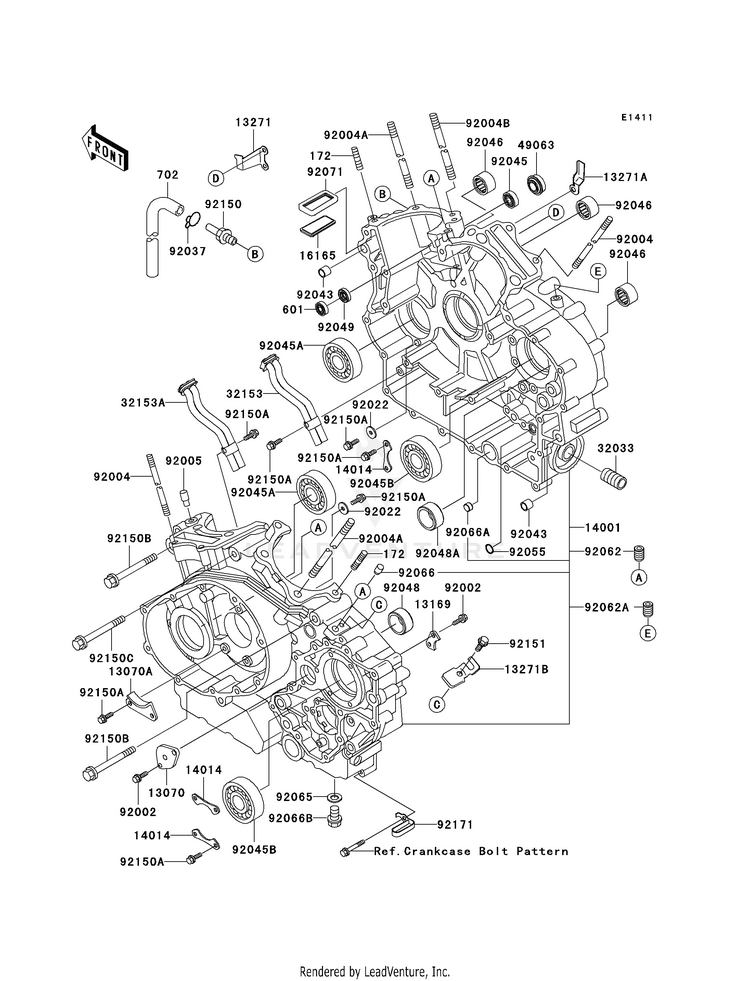

CRANKCASE (VN1500-E2-E4)

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1307013070-1167GUIDE,PUSH ROD
Usually ships in 7-10 business days
13070A13070-1168GUIDE,CAM CHAIN
Usually ships in 7-10 business days
1316913169-014PLATE,GEAR CHANGE DRUM
Usually ships in 7-10 business days
1327113271-1290PLATE
Usually ships in 7-10 business days
13271A13271-1291PLATE
Usually ships in 7-10 business days
13271B13271-1448PLATE
Usually ships in 7-10 business days
1400114001-5374SET-CRANKCASE
Usually ships in 7-10 business days
1401414014-1084PLATE-POSITION
Usually ships in 7-10 business days
1616516165-1058SEPARATOR
Usually ships in 7-10 business days
172172BA0825

(replaces part #
172G0825)

BOLT-STUD,8X25
10+ In-Stock
3203332033-1535PIPE,OIL FILTER
6 In-Stock
3215332153-1262PIPE
Usually ships in 7-10 business days
32153A32153-1263PIPE
Usually ships in 7-10 business days
4906349063-1057SEAL-MECHANICAL
3 In-Stock
601601A6001BEARING-BALL
10+ In-Stock
702702A04330TUBE-RUBBER,4X330
Usually ships in 7-10 business days
9200292002-1439BOLT,6X16
Usually ships in 7-10 business days
9200492004-1174STUD,8X231
Usually ships in 7-10 business days
92004A92004-0017

(replaces part #
92004-1225)

STUD,12X250.12X24
Usually ships in 7-10 business days
92004B92004-0017

(replaces part #
92004-1240)

STUD,12X250.12X24
Usually ships in 7-10 business days
9200592005-1155FITTING
Usually ships in 7-10 business days
9202292022-1517WASHER,6X19.5X2
Usually ships in 7-10 business days
9203792037-1835CLAMP
Usually ships in 7-10 business days
9204392043-1266PIN,11X14X12.3
10+ In-Stock
9204592045-1151BEARING-BALL,6001JRXLLU/5K
1 In-Stock
92045A92045-1189BEARING-BALL,63/28
Usually ships in 7-10 business days
92045B92045-1190BEARING-BALL,6306SH2
3 In-Stock
9204692046-1163BEARING-NEEDLE,HK1212
Usually ships in 7-10 business days
9204892048-1069RACE
Usually ships in 7-10 business days
92048A92048-1103RACE
Usually ships in 7-10 business days
9204992049-1228SEAL-OIL,SC 12X22X5
10+ In-Stock
9205592055-1373RING-O,13.2X2.4
10+ In-Stock
9206292062-1078NOZZLE,6X8,GREEN
3 In-Stock
92062A92062-1089NOZZLE
Usually ships in 7-10 business days
9206592065-097GASKET,12X22X2
10+ In-Stock
9206692066-1012PLUG,OIL LINE,7.2X8
7 In-Stock
92066A92066-1110PLUG
Usually ships in 7-10 business days
92066B92066-1174PLUG,OIL DRAIN,12X15
10+ In-Stock
AFTERMARKET ALTERNATIVE
$11.99$9.9910+ In-Stock
9207192071-1269

(replaces part #
92071-1153)

GROMMET,SEPARATOR
Usually ships in 7-10 business days
9215092150-1161BOLT
Usually ships in 7-10 business days
92150A92150-1868BOLT,6X12
Usually ships in 7-10 business days
92150B92150-1993BOLT,10X105
Usually ships in 7-10 business days
92150C92150-1994BOLT,10X115
Usually ships in 7-10 business days
9215192151-1416BOLT
Usually ships in 7-10 business days
9217192171-1273CLAMP
Usually ships in 7-10 business days
