2001 Kawasaki Vulcan Classic VN1500FI Right Engine Cover(S) OEM Parts Diagram

Submodel VN1500-N2 Vulcan 1500 Classic Fi (2001)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

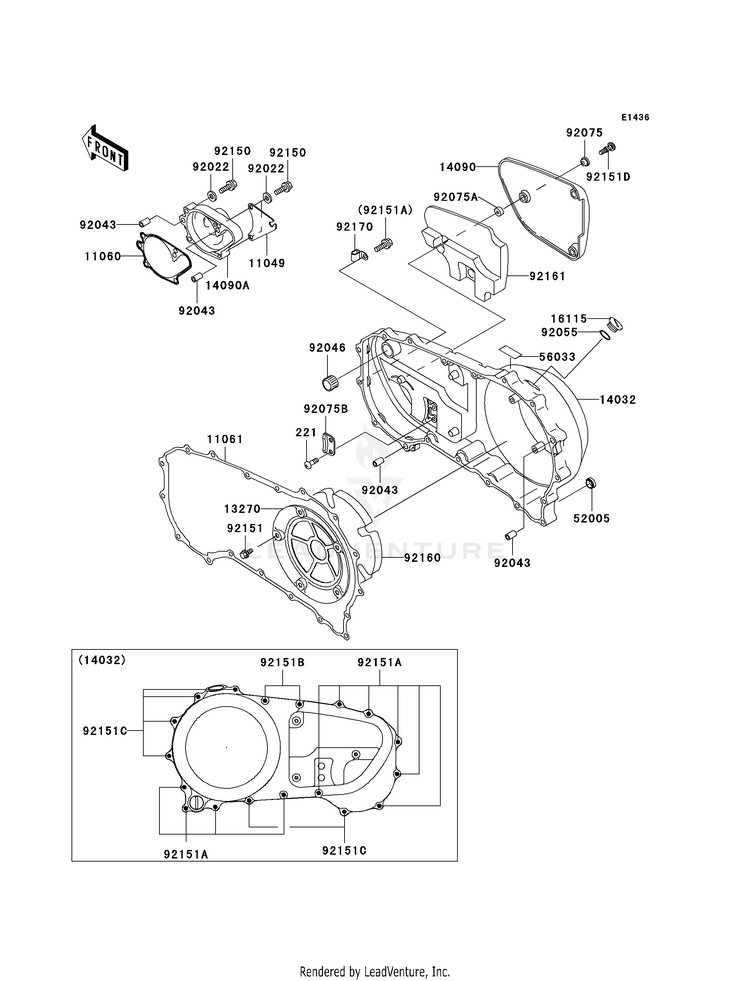

RIGHT ENGINE COVER(S)

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1104911049-1789BRACKET
Usually ships in 7-10 business days
1106011061-1527

(replaces part #
11060-1124)

GASKET,WATER PUMP COVER
5 In-Stock
1106111061-1081GASKET,CLUTCH COVER
3 In-Stock
1327013270-1592PLATE
Usually ships in 7-10 business days
1403214032-1493COVER-CLUTCH
Usually ships in 7-10 business days
1409014090-1678COVER,CLUTCH OUTER
Usually ships in 7-10 business days
14090A14090-1932COVER,WATER PUMP
Usually ships in 7-10 business days
1611516115-1063CAP-OIL FILLER
Usually ships in 7-10 business days
221221AA0612

(replaces part #
221B0612)

SCREW-CSK-CROS,6X12
8 In-Stock
5200552005-1009GAUGE,OIL LEVEL
10+ In-Stock
5603356033-1156LABEL-MANUAL,OIL CAPA
Usually ships in 7-10 business days
9202292022-077WASHER,6.1X12X1
10+ In-Stock
9204392043-1263PIN,6.2X8X14
10+ In-Stock
9204692046-1163BEARING-NEEDLE,HK1212
Usually ships in 7-10 business days
9205592055-049RING-O,31.5X2.6
10+ In-Stock
9207592075-1855DAMPER
Usually ships in 7-10 business days
92075A92075-1856DAMPER
Usually ships in 7-10 business days
92075B92075-1905DAMPER
Usually ships in 7-10 business days
92150132BB0630

(replaces part #
92150-1021)

BOLT-FLANGED-SMALL,6X30
10+ In-Stock
9215192151-1064BOLT,6X10
Usually ships in 7-10 business days
92151A92151-1930

(replaces part #
92151-1130)

BOLT,FLANGED-SMALL,6X25
10+ In-Stock
92151B132BC0630

(replaces part #
92151-1134)

BOLT-FLANGED-SMALL,6X30
10+ In-Stock
92151C92151-1135BOLT,6X35
10+ In-Stock
92151D92151-1273BOLT,L=22.5
Usually ships in 7-10 business days
9216092160-1716DAMPER
Usually ships in 7-10 business days
9216192161-1139DAMPER,DRAIN
Usually ships in 7-10 business days
9217092170-1804CLAMP
Usually ships in 7-10 business days
