2001 Kawasaki Vulcan Nomad VN1500G Chassis Electrical Equipment OEM Parts Diagram

Submodel VN1500-G3 Vulcan 1500 Nomad (2001)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CHASSIS ELECTRICAL EQUIPMENT

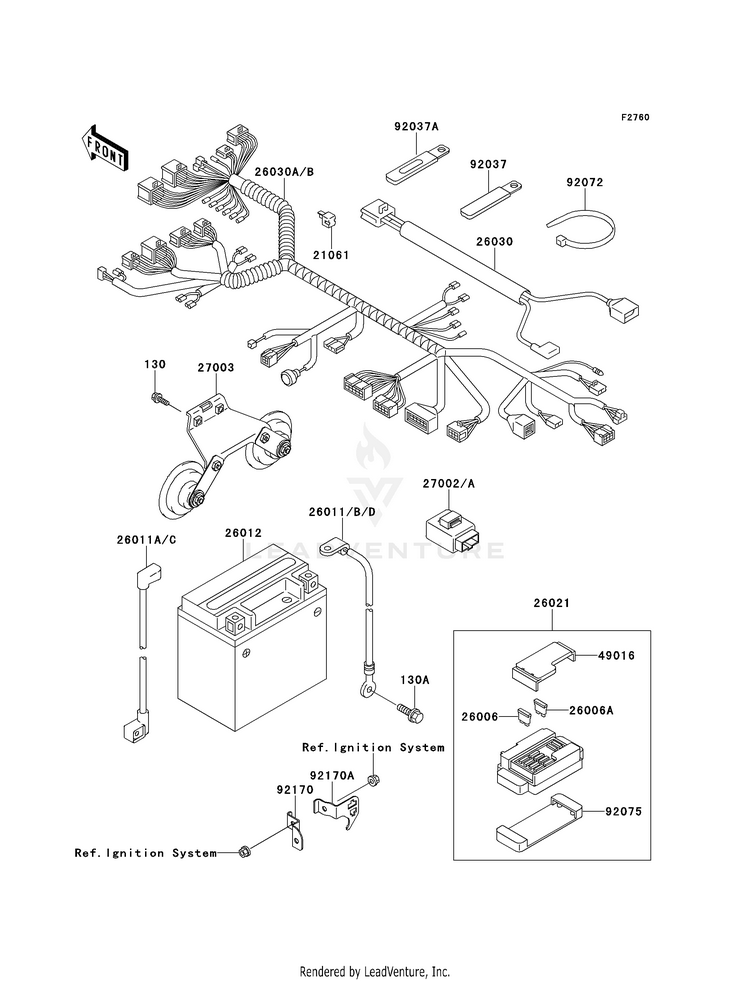

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130BB0630

(replaces part #
130J0630)

BOLT-FLANGED,6X30
10+ In-Stock
130A130BA0610

(replaces part #
130V0610)

BOLT-FLANGED,6X10
10+ In-Stock
2106121061-1003RECTIFIER
Usually ships in 7-10 business days
2600626006-1006

(replaces part #
26006-1067)

FUSE,BLADE,30A,GREEN
Usually ships in 7-10 business days
26006A26006-1007

(replaces part #
26006-1068)

FUSE,BLADE,10A,RED
Usually ships in 7-10 business days
26011C26011-1770WIRE-LEAD,BATTERY(+)
Usually ships in 7-10 business days
26011D26011-1771WIRE-LEAD,BATTERY(-)
Usually ships in 7-10 business days
2601226012-1296

(replaces part #
26012-1368)

FTH16-BS,12V 14AH
Usually ships in 7-10 business days
2602126021-0073

(replaces part #
26021-1089)

JUNCTION BOX
Usually ships in 7-10 business days
2603026030-1450HARNESS,SUB
Usually ships in 7-10 business days
26030B26030-1797HARNESS,MAIN
Usually ships in 7-10 business days
27002A27002-1111RELAY-ASSY,SIGNAL LAM
Usually ships in 7-10 business days
2700327003-1406HORN
Usually ships in 7-10 business days
4901649016-1177COVER-SEAL,FUSE
Usually ships in 7-10 business days
9203792037-1539CLAMP,L=45
8 In-Stock
92037A92037-1780CLAMP
2 In-Stock
9207292072-1195BAND,L=202
10+ In-Stock
9207592075-1688DAMPER,JUNCTION BOX
Usually ships in 7-10 business days
9217092170-1699CLAMP,IGNITION SWITCH
Usually ships in 7-10 business days
92170A92170-1700CLAMP,RR BRAKE SWITCH
Usually ships in 7-10 business days
