2001 Kawasaki Vulcan Nomad VN1500G Clutch Master Cylinder OEM Parts Diagram

Submodel VN1500-G3 Vulcan 1500 Nomad (2001)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH MASTER CYLINDER

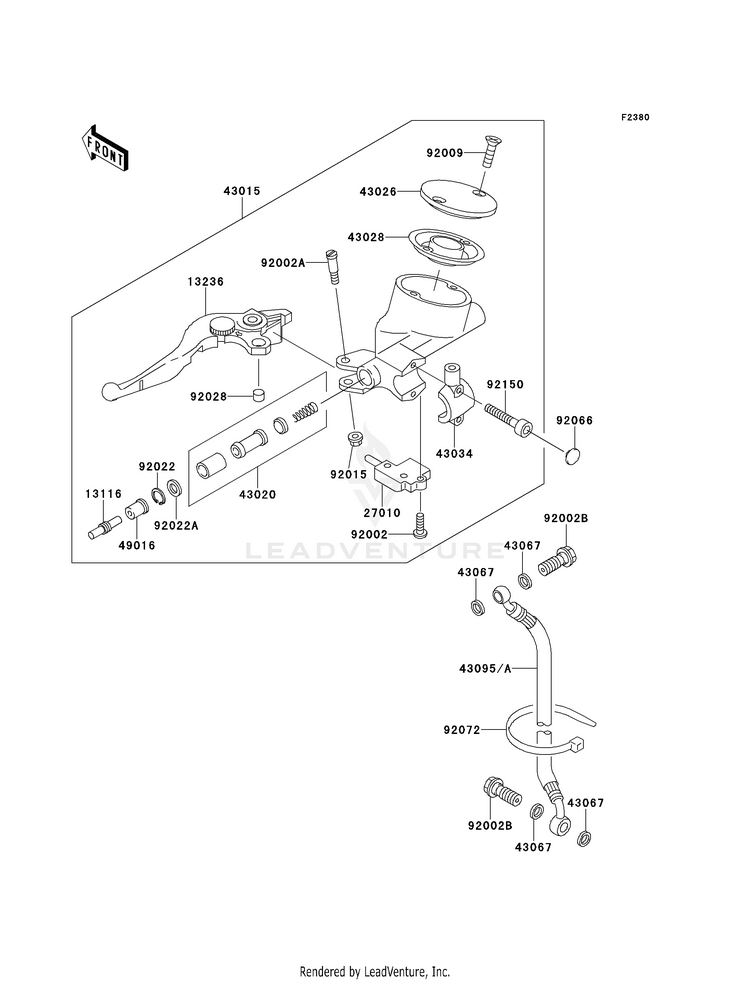

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1311613116-1110ROD-PUSH,MASTER CYLINDER
Usually ships in 7-10 business days
1323613236-1316LEVER-COMP,CLUTCH
Usually ships in 7-10 business days
2701027010-1406SWITCH,CLUTCH
1 In-Stock
4301543015-0012

(replaces part #
43015-1621)

CYLINDER-ASSY-MASTER,
Usually ships in 7-10 business days
4302043020-1055PISTON-COMP-BRAKE,CLUTCH
1 In-Stock
4302643026-1083CAP-BRAKE
1 In-Stock
4302843028-1071DIAPHRAGM,MASTER CYLINDER
1 In-Stock
4303443034-1147HOLDER-BRAKE
2 In-Stock
4306749091-0001

(replaces part #
43067-001)

WASHER-SEAL,10.1X14.5X1.5
10+ In-Stock
43095A43095-1321

(replaces part #
43095-1203)

HOSE-BRAKE,CLUTCH
Usually ships in 7-10 business days
4901649016-1044COVER-SEAL,MASTER CYLINDER
6 In-Stock
9200292002-1325SCREW
Usually ships in 7-10 business days
92002A92002-1561BOLT,LEVER SET
1 In-Stock
92002B92153-0627

(replaces part #
92002-1888)

BOLT,OIL,L=23
10+ In-Stock
9200992009-1440SCREW
2 In-Stock
9201592015-1528NUT,FLANGED,6MM
10+ In-Stock
9202292022-1605CIRCLIP
2 In-Stock
92022A92022-1606WASHER,PISTON
1 In-Stock
9202892028-1310BUSHING,MASTER CYLINDER
10+ In-Stock
9206692066-1301PLUG
Usually ships in 7-10 business days
9207292072-1197BAND,L=365
Usually ships in 7-10 business days
9215092150-1025BOLT,SOCKET,6MM
2 In-Stock
