2002 Kawasaki Vulcan Classic VN1500 Tires OEM Parts Diagram

Submodel VN1500-E5 Vulcan 1500 Classic (2002)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TIRES

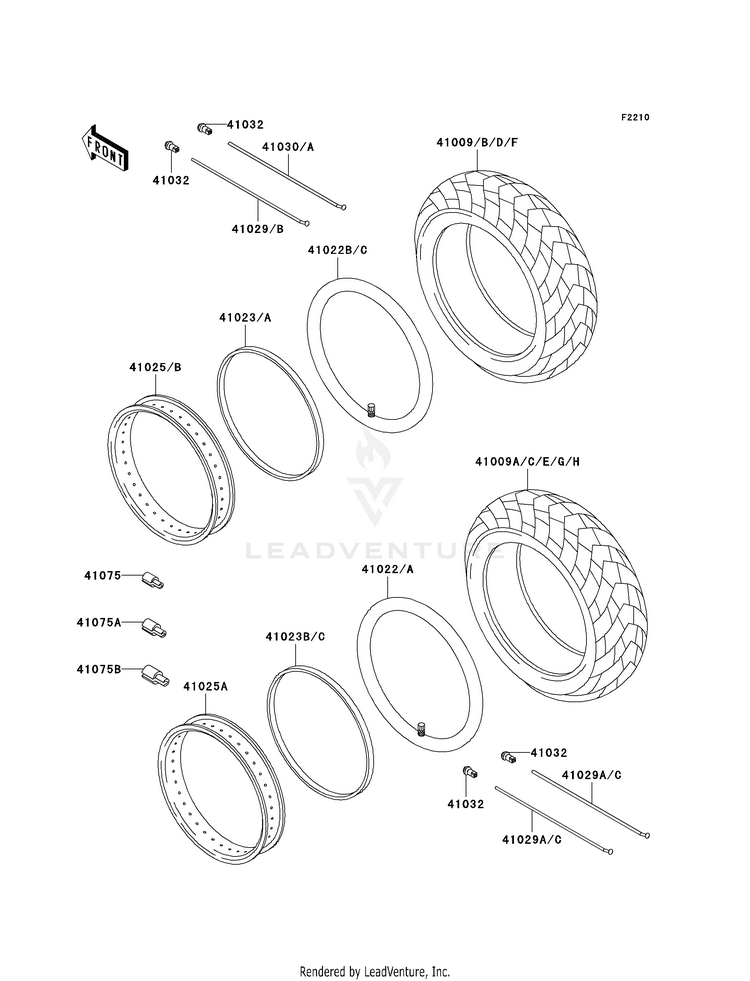

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
41009D41009-1260

(replaces part #
41009-1235)

TIRE,FR,130/90-16 67H
Usually ships in 7-10 business days
41009E41009-1236TIRE,RR,150/80B16 71H
Usually ships in 7-10 business days
41009F41009-1260TIRE,FR,130/90-16 67H
Usually ships in 7-10 business days
41009G41009-1261TIRE
Usually ships in 7-10 business days
4102241022-1171TUBE-TIRE,140/90-16(B
Usually ships in 7-10 business days
41022A41022-1171

(replaces part #
41022-1172)

TUBE-TIRE,140/90-16(B
Usually ships in 7-10 business days
41022B41022-1191TUBE-TIRE,130/90-16 M/C(BS)
Usually ships in 7-10 business days
41022C41022-1192TUBE-TIRE,130/90-16(D)
Usually ships in 7-10 business days
4102341023-1101BAND-RIM,30-16/X-16B,(BS)
Usually ships in 7-10 business days
41023A41023-1102BAND-RIM,140/90-16(D)
Usually ships in 7-10 business days
41023B41023-1115BAND-RIM,150/80-16(D)
Usually ships in 7-10 business days
41023C41023-1118BAND-RIM
Usually ships in 7-10 business days
41025A41025-0047

(replaces part #
41025-1315)

RIM,RR,3.50X16
Usually ships in 7-10 business days
41025B41025-0046

(replaces part #
41025-1412)

RIM,FR,3.00X16
Usually ships in 7-10 business days
41029B41029-1310SPOKE-INNER,FR,154.5M
10+ In-Stock
41029C41029-1314SPOKE-INNER,RR,81MMX1
Usually ships in 7-10 business days
41030A41030-1168SPOKE-OUTER,FR,151.5M
10+ In-Stock
4103241032-0005

(replaces part #
41032-1075)

NIPPLE-SPOKE
10+ In-Stock
4107541075-0011

(replaces part #
41075-1007)

BALANCER-WHEEL,10G
Usually ships in 7-10 business days
41075A41075-0012

(replaces part #
41075-1008)

BALANCER-WHEEL,20G
Usually ships in 7-10 business days
41075B41075-0013

(replaces part #
41075-1009)

BALANCER-WHEEL,30G
1 In-Stock
