2002 Kawasaki Vulcan Classic VN1500 Transmission (Vn1500-E5/E6) OEM Parts Diagram

Submodel VN1500-E5 Vulcan 1500 Classic (2002)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

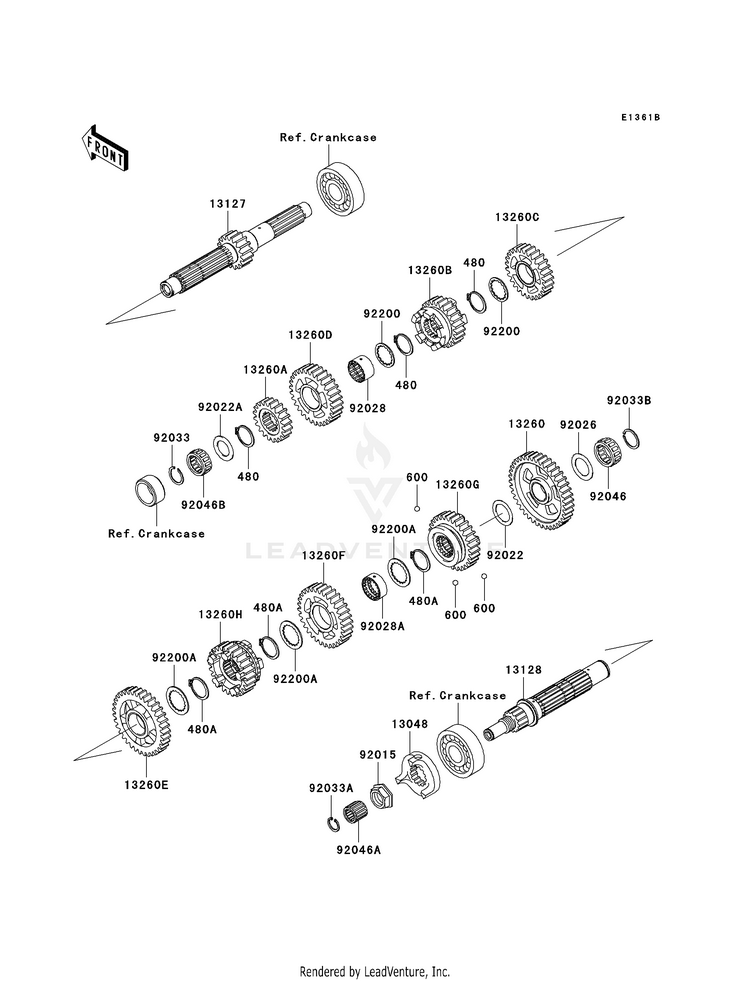

TRANSMISSION (VN1500-E5/E6)

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1304813048-1086CAM-DAMPER
Usually ships in 7-10 business days
1312713127-1288SHAFT-TRANSMISSION IN
Usually ships in 7-10 business days
1312813128-0002SHAFT-TRANSMISSION OU
Usually ships in 7-10 business days
1326013260-1910GEAR,OUTPUT LOW,40T
Usually ships in 7-10 business days
13260A13260-1914GEAR,INPUT 2ND,22T
Usually ships in 7-10 business days
13260B13262-1068

(replaces part #
13260-1915)

GEAR,INPUT 3RD,26T
Usually ships in 7-10 business days
13260C13262-1069

(replaces part #
13260-1916)

GEAR,INPUT 4TH,29T
Usually ships in 7-10 business days
13260D13262-1070

(replaces part #
13260-1917)

GEAR,INPUT 5TH,32T
Usually ships in 7-10 business days
13260E13260-1918GEAR,OUTPUT 2ND,35T
Usually ships in 7-10 business days
13260F13262-0093

(replaces part #
13260-1919)

GEAR,OUTPUT 3RD,31T
Usually ships in 7-10 business days
13260G13260-1920GEAR,OUTPUT 4TH,28T
Usually ships in 7-10 business days
13260H13262-1072

(replaces part #
13260-1921)

GEAR,OUTPUT 5TH,25T
Usually ships in 7-10 business days
480480J2800CIRCLIP-TYPE-C,28MM
9 In-Stock
480A480J2900CIRCLIP
Usually ships in 7-10 business days
600600A0500BALL-STEEL,5/32
Usually ships in 7-10 business days
9201592015-1610NUT,20MM
Usually ships in 7-10 business days
9202292022-1855WASHER,OUTPUT,LOW
Usually ships in 7-10 business days
92022A92022-212WASHER,22.3X35X1.6
Usually ships in 7-10 business days
9202692026-1536SPACER
Usually ships in 7-10 business days
9202892028-1990BUSHING,INPUT TOP GEA
Usually ships in 7-10 business days
92028A92028-1991BUSHING,OUTPUT 3RD GE
Usually ships in 7-10 business days
9203392033-025RING-SNAP,20X25.5X1.2
10+ In-Stock
92033A92033-032RING-SNAP
6 In-Stock
92033B92033-1172RING-SNAP,25MM
10+ In-Stock
9204692046-1259BEARING-NEEDLE
Usually ships in 7-10 business days
92046A92046-1260BEARING-NEEDLE,FWF-162222
Usually ships in 7-10 business days
92046B92046-1293BEARING-NEEDLE,BN5022
Usually ships in 7-10 business days
9220092200-1240WASHER,28.5X34.0X1.5
3 In-Stock
92200A92200-1381WASHER,30.3X40X1.5
Usually ships in 7-10 business days
