2002 Kawasaki Vulcan Classic VN1500 Water Pump OEM Parts Diagram

Submodel VN1500-E5 Vulcan 1500 Classic (2002)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

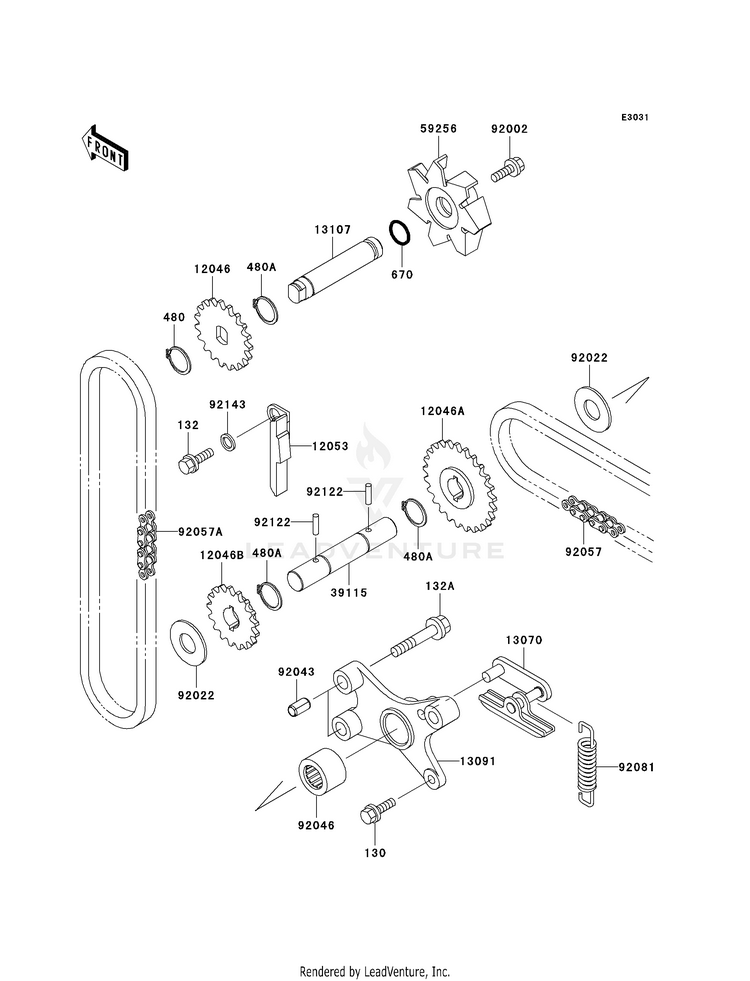

WATER PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1204612046-1079SPROCKET,OIL PUMP,19T
Usually ships in 7-10 business days
12046A12046-1096SPROCKET,CRANK IDLER,25T
Usually ships in 7-10 business days
12046B12046-1097SPROCKET,IDLER,17T
Usually ships in 7-10 business days
1205312053-1227GUIDE-CHAIN
Usually ships in 7-10 business days
130130D0514BOLT-FLANGED
Usually ships in 7-10 business days
1307013070-1178GUIDE
Usually ships in 7-10 business days
1309113091-1471HOLDER
Usually ships in 7-10 business days
1310713107-1196SHAFT,IMPELLER
Usually ships in 7-10 business days
132132BA0612

(replaces part #
132G0612)

BOLT-FLANGED-SMALL,6X12
10+ In-Stock
132A132BA0635

(replaces part #
132G0635)

BOLT-FLANGED-SMALL,6X35
10+ In-Stock
3911539115-1058SHAFT-IDLER
Usually ships in 7-10 business days
480480J1100CIRCLIP-TYPE-C,11MM
10+ In-Stock
480A480J1200CIRCLIP-TYPE-C,12MM
10+ In-Stock
5925659256-1066IMPELLER
Usually ships in 7-10 business days
670670D1509O RING,9MM
10+ In-Stock
9200292153-0009

(replaces part #
92002-1902)

BOLT,FLANGED,6X12
Usually ships in 7-10 business days
9202292022-1852WASHER,12X27.5X1.0
Usually ships in 7-10 business days
9204392043-1263PIN,6.2X8X14
10+ In-Stock
9204692046-1163BEARING-NEEDLE,HK1212
Usually ships in 7-10 business days
9205792057-1230CHAIN,BS25HX46L
Usually ships in 7-10 business days
92057A92057-1231CHAIN,BS25HX44L
Usually ships in 7-10 business days
9208192081-1791SPRING,IDLER SHAFT
Usually ships in 7-10 business days
9212292122-1126ROLLER,3X15.8
Usually ships in 7-10 business days
9214392143-1123COLLAR
Usually ships in 7-10 business days
