2002 Kawasaki Vulcan Classic VN1500FI Front Fork OEM Parts Diagram

Submodel VN1500-N3 Vulcan 1500 Classic Fi (2002)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FORK

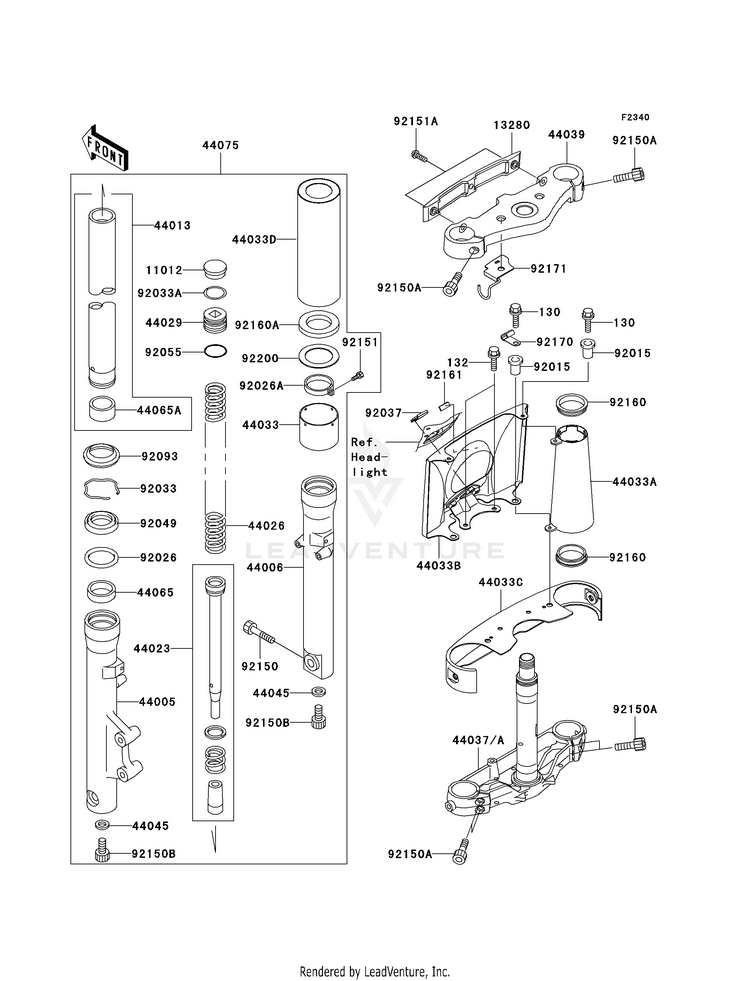

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1101211012-1618CAP,FORK TOP
Usually ships in 7-10 business days
130130BB0516

(replaces part #
130J0-516)

BOLT-FLANGED,5X16
9 In-Stock
132132E0612BOLT-FLANGED-SMALL,6X12
Usually ships in 7-10 business days
1328013280-1161HOLDER,UPPER BRACKET
Usually ships in 7-10 business days
4400544005-1366PIPE-LEFT FORK OUTER
Usually ships in 7-10 business days
4400644006-1365PIPE-RIGHT FORK OUTER
Usually ships in 7-10 business days
4401344013-1462PIPE-FORK INNER
Usually ships in 7-10 business days
4402344023-1129CYLINDER-SET-FORK
Usually ships in 7-10 business days
4402644026-1717SPRING-FRONT FORK
Usually ships in 7-10 business days
4402944029-1125SEAT-FORK SPRING
Usually ships in 7-10 business days
4403344033-1223COVER-FORK
Usually ships in 7-10 business days
44033A44033-1229COVER-FORK,UPP
Usually ships in 7-10 business days
44033B44033-1255COVER-FORK,CNT
Usually ships in 7-10 business days
44033C44033-1257COVER-FORK,LWR
Usually ships in 7-10 business days
44033D44033-1261COVER-FORK
Usually ships in 7-10 business days
44037A44037-1411HOLDER-FORK UNDER
Usually ships in 7-10 business days
4403944039-1305HOLDER-FORK UPPER
Usually ships in 7-10 business days
4404544045-051GASKET,FORK CYLINDER BOLT
10+ In-Stock
4406544065-1079BUSHING-FRONT FORK
Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$50.00$42.9910+ In-Stock
44065A44065-1087BUSHING-FRONT FORK,INNER PIPE
Usually ships in 7-10 business days
4407544075-1114DAMPER-SET-FORK
Usually ships in 7-10 business days
9201592015-1757NUT,WELL,5MM
10+ In-Stock
9202692026-1276SPACER,FORK OUTER
Usually ships in 7-10 business days
92026A92026-1515SPACER
Usually ships in 7-10 business days
9203392033-1222RING-SNAP
Usually ships in 7-10 business days
92033A92033-1223RING-SNAP,SPRING SEAT
Usually ships in 7-10 business days
9203792037-1539CLAMP,L=45
8 In-Stock
9204992049-1363SEAL-OIL
8 In-Stock
9205592055-1363RING-O,SPRING SEAT
Usually ships in 7-10 business days
9209392093-1268SEAL,FORK
10+ In-Stock
9215092150-1029BOLT,SOCKET,10X40
Not Shipping
92150A92150-1031BOLT,SOCKET,8MM
Usually ships in 7-10 business days
92150B92150-1432BOLT,SOCKET,8X18
Usually ships in 7-10 business days
9215192151-1356BOLT,SOCKET,4X16
1 In-Stock
92151A92151-1753BOLT
Usually ships in 7-10 business days
9216092160-1892DAMPER
Usually ships in 7-10 business days
92160A92160-1927DAMPER
Usually ships in 7-10 business days
9216192161-1177DAMPER
Usually ships in 7-10 business days
9217092173-1368

(replaces part #
92170-1900)

CLAMP,HARNESS
Usually ships in 7-10 business days
9217192171-1353CLAMP,BRAKE HOSE
Usually ships in 7-10 business days
9220092200-1417WASHER
Usually ships in 7-10 business days
