2002 Kawasaki Vulcan Drifter VN1500 Rear Master Cylinder OEM Parts Diagram

Submodel VN1500-R2 Vulcan 1500 Drifter (2002)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR MASTER CYLINDER

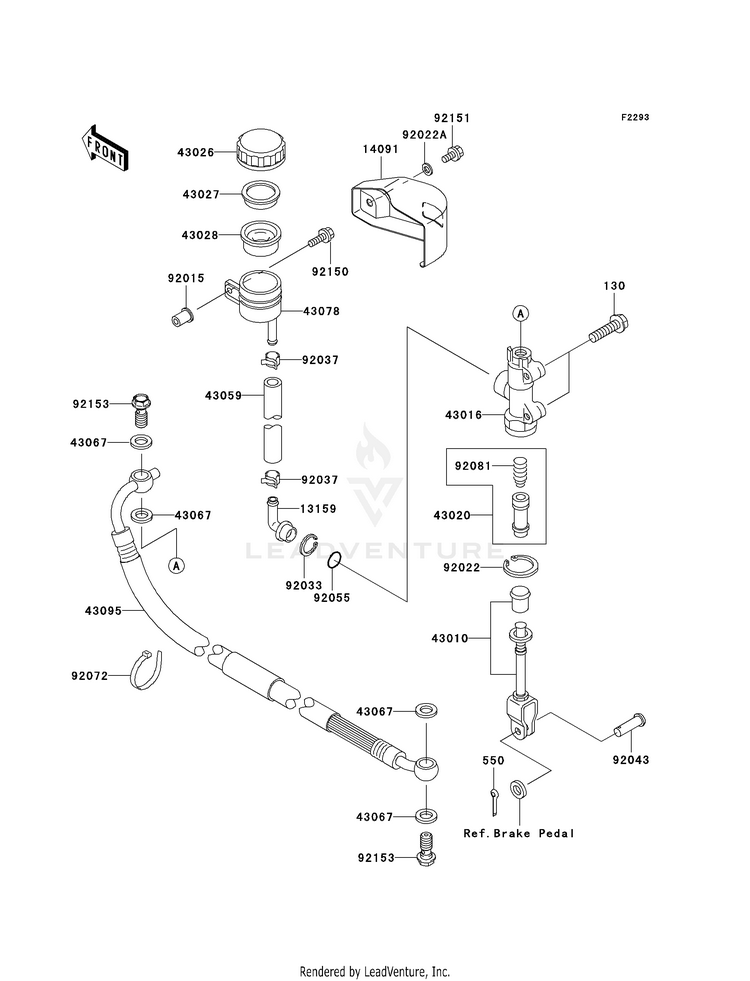

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130BB0830

(replaces part #
130J0830)

BOLT-FLANGED,8X30
10+ In-Stock
1315913159-1052CONNECTOR,RR MASTER CYLINDER
Usually ships in 7-10 business days
1409114091-0412

(replaces part #
14091-1341)

COVER,RESERVOIR TANK
Usually ships in 7-10 business days
4301043010-1055ROD-ASSY-BRAKE
Usually ships in 7-10 business days
4301643016-1122CYLINDER-MASTER,RR
Usually ships in 7-10 business days
4302043020-1057PISTON-COMP-BRAKE
Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$29.55$28.0710+ In-Stock
4302643026-1051CAP-BRAKE
Usually ships in 7-10 business days
4302743027-1051PLATE-DIAPHRAGM
2 In-Stock
4302843028-1057DIAPHRAGM,MASTER CYLINDER
2 In-Stock
4305943059-1318HOSE-BRAKE,RR MASTER
Usually ships in 7-10 business days
4306749091-0001

(replaces part #
43067-001)

WASHER-SEAL,10.1X14.5X1.5
10+ In-Stock
4307843078-1178RESERVOIR,RR MASTER CYLINDER
Usually ships in 7-10 business days
4309543095-1194HOSE-BRAKE,RR
Usually ships in 7-10 business days
550550AA2015

(replaces part #
550D2015)

PIN-COTTER,2.0X15
10+ In-Stock
9201592015-1700NUT
5 In-Stock
9202292033-0079

(replaces part #
92022-1601)

RING-SNAP,20.9X24.6X1.2
8 In-Stock
92022A92022-183WASHER,6.2X11X1.5
8 In-Stock
9203392033-1186RING-SNAP,20.5MM
7 In-Stock
9203792037-1547CLAMP,BRAKE HOSE
Usually ships in 7-10 business days
9204392043-1013PIN,8X16
2 In-Stock
9205592055-0741

(replaces part #
92055-1251)

RING-O,14.8X2.4
10+ In-Stock
9207292072-1197BAND,L=365
Usually ships in 7-10 business days
9208192081-1737SPRING,MASTER CYLINDER
Usually ships in 7-10 business days
9215092150-1829BOLT,6X25
Usually ships in 7-10 business days
9215192151-1401BOLT,FLANGED,6X12
Usually ships in 7-10 business days
9215392153-0627BOLT,OIL,L=23
10+ In-Stock
