2003 Kawasaki KL250G Super Sherpa Crankcase OEM Parts Diagram

Submodel KL250-G7 Super Sherpa (2003)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

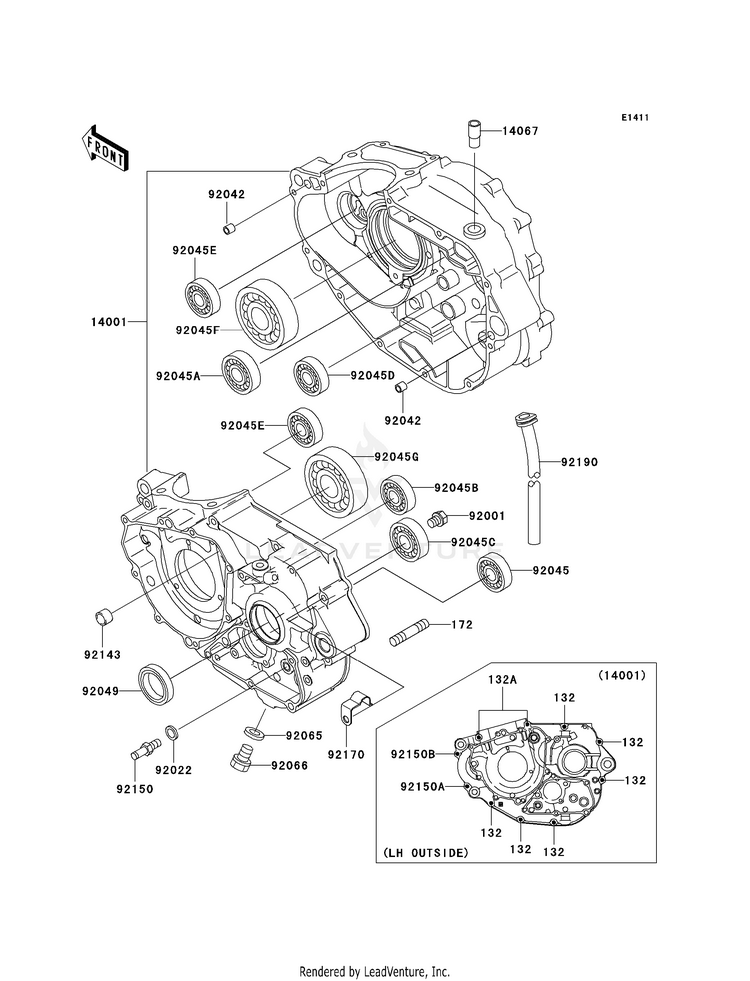

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
132132BD0650

(replaces part #
132Y0650)

BOLT-FLANGED-SMALL,6X50
7 In-Stock
132A132BD0670

(replaces part #
132Y0670)

BOLT-FLANGED-SMALL
Usually ships in 7-10 business days
1400114001-1223

(replaces part #
14001-5359)

SET-CRANKCASE
Usually ships in 7-10 business days
1406714067-006FITTING,BREATHER
3 In-Stock
172172BA0680

(replaces part #
172G0680)

BOLT-STUD,6X80
Usually ships in 7-10 business days
9200192001-1829BOLT,W/WASHER,6X14
9 In-Stock
9202292022-1415WASHER,10.2X18X1.0,SK5
4 In-Stock
9204292042-007PIN,DOWEL,6.3X8X14
10+ In-Stock
9204592045-036BEARING-BALL,#6905
10+ In-Stock
92045A92045-1041BEARING-BALL,TMB204 JR
Usually ships in 7-10 business days
92045B92045-1287BEARING-BALL,TMB203LU
10+ In-Stock
92045C92045-1288BEARING-BALL,TMB205LU
Usually ships in 7-10 business days
92045D92045-1291BEARING-BALL,TMB203
5 In-Stock
92045E92045-1346BEARING-BALL,TMB302JR2
4 In-Stock
92045F92045-1347BEARING-BALL,TMB306JR2
2 In-Stock
92045G92045-1348BEARING-BALL,3TM-6207CJR2
Usually ships in 7-10 business days
9204992049-1577SEAL-OIL,TC32457
10+ In-Stock
AFTERMARKET ALTERNATIVE
$29.00$23.9910+ In-Stock
9206592065-058GASKET,10.5X16X1
10+ In-Stock
9206692066-1241PLUG
9 In-Stock
9214392143-1263COLLAR
Usually ships in 7-10 business days
9215092150-1803BOLT,RETURN SPRING
4 In-Stock
92150A92150-1874BOLT,SOCKET,6X50
Usually ships in 7-10 business days
92150B92150-1875BOLT,SOCKET,6X35
2 In-Stock
9217092170-1803CLAMP,HARNESS
Usually ships in 7-10 business days
9219092190-1493TUBE
Usually ships in 7-10 business days
